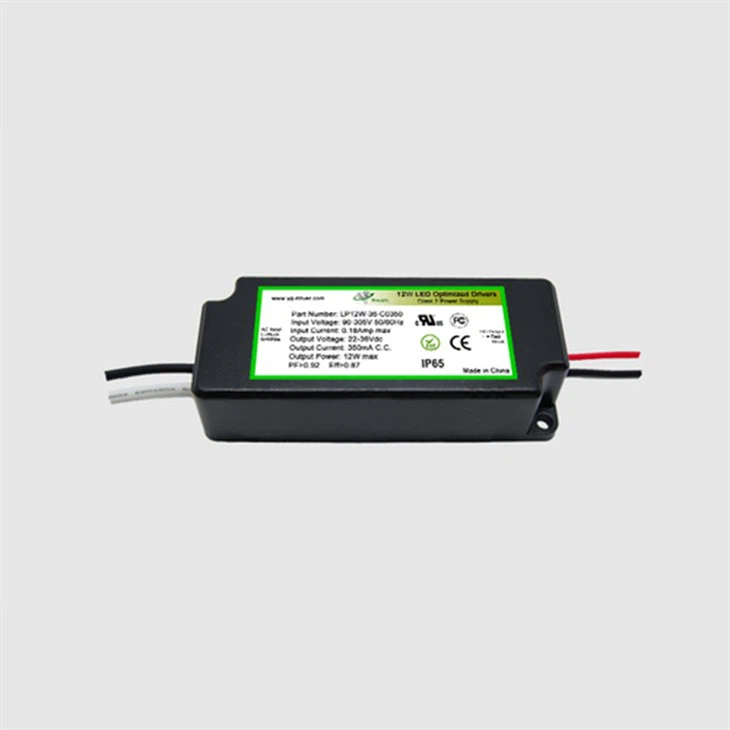

12W Constant Current Driver IP65 Compact And Efficient LP12W

Features:

a. Comply with PSE, CE & CCC

b. RoHs compliant;

c. Plastic Shell, Silicone Potting, Up to 120°C;

d. Compact, Lightweight Design;

e. Water Resistant and Dust Proof Design: IP65, NEMA4, for Dry, Damp, Wet Locations;

f. Standard electrical box for installation;

g. Active Power Factor Correction technology to reduce power consumption;

h. Safety Isolation between Primary and Secondary.

i. Surge Immunity ( Lightning Protection ): Comply with EN61000-4-5, AC line to line 1KV.



Product parameters：



Constant Current	Input Voltage Vac	Power Factor		Output Voltage Vdc	Constant Current mA	Current Accuracy %	Typical Efficiency %	Location
LP12W Series		@120V	@230V
LP12W-150-C0080	90~305	0.99	0.92	90-150	80	±5	90	Indoor
LP12W-100-C0120	90~305	0.99	0.92	60-100	120	±5	89	Indoor
LP12W-48-C0250	90~305	0.99	0.92	29-48	250	±5	88	Indoor
LP12W-43-C0280	90~305	0.99	0.92	26-43	280	±5	88	Indoor
LP12W-36-C0350	90~305	0.99	0.92	22-36	350	±5	87	Indoor
LP12W-24-C0500	90~305	0.99	0.92	15-24	500	±5	87	Indoor
LP12W-18-C0640	90~305	0.99	0.92	11-18	640	±5	86	Indoor
LP12W-16-C0750	90~305	0.99	0.92	10-16	750	±5	86	Indoor
LP12W-12-C1000	90~305	0.99	0.92	8-12	1000	±5	85	Indoor



Product type:Constant Current Drive, Compact and efficient

Application:LED Lamps, LED Spotlights, LED Grille, LED PAR Lamp

Size:76mm(L)×31mm(W)×25mm(H)

Weight:90g

Warranty:Five years



1. Operating Temperature: −30 to +60°C;

2. Storage Temperature: −40 to +85°C;

3. Humidity (non-condensing): 5% to 95%RH;

4. Cooling: Convection;

5. Vibration Frequency: 5 ~ 55HZ/2g, 30 minutes;

6. Impact Resistance: 1g/S;

7. MTBF@40°C: 620,000 hours @ Full Load per MIL-217 Notice 2.;

8. LIFE@25°C: 175,000 hours @ Full Load per MIL-217 Notice 2.;

9. Safety: CISPR 22 CLASS B, CISPR 14-1 CLASS B,

EN61000-3-2 & EN61000-3-3 Class C,

GB19510.14-2009, GB19510.1-2009,

GB17743.1-2007, GB17625.1-2003

a. Maximum Input Current: 0.18A (@ 120V, full load);

b. Input Surge Current: <10A (25°C, 230V, cold start);

c. Constant Current Regulation: ±3%, Over Input Line Variation;

d. Load Regulation Accuracy: ±3%;

e. Output Current Ripple: < ±30%*Io

f. Leakage Current: 400uA typical; Hold up time: half cycle;

g. Protection: Output over-voltage protection;

Output over-current protection;

Output short circuit, auto-recovery;

Lightning & transient protection built in.
