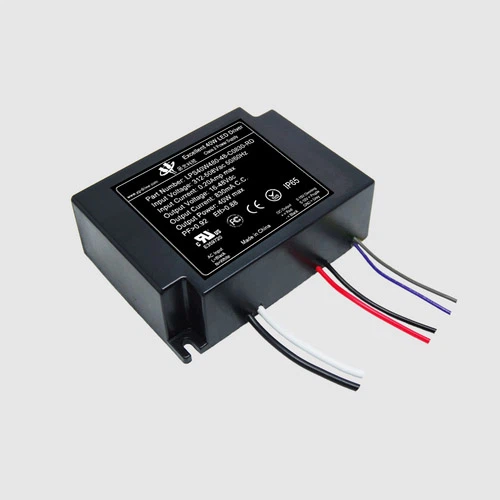

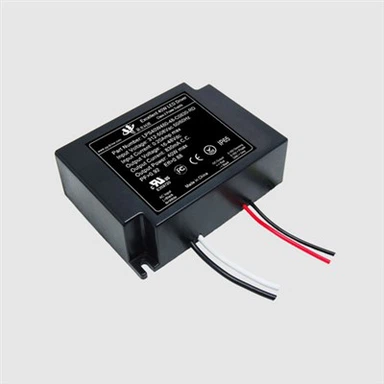

40Watt 347-480V Input 0-10V Dimming Driver LPS40W480

Features:

1. Drive mode: constant current, primary and secondary isolation

2. Technology type: single-stage PFC technology

3. Output power: 40W

4. Input voltage: 347~480VAC, 47-63HZ

5. Output voltage: 13 specifications available, range 4~130Vdc

6. Comply with UL & cUL, CE safety certification:

North American safety standards: UL8750, CSA C22.2

European safety standards: EN61347-1:2008, EN61347-2-13:2006

North American EMC standards: FCC 47CFR Part 15 Class A

European EMC standards: EN55015, EN61000-3-2, EN61000-3-3

7. Comply with RoHs standards and IP66 waterproof level;

8. 94V-0 150°C thermal conductive silicone potting, 120°C plastic shell;

9. Suitable for use in indoor environments and in high humidity and high dust environments;

a. Use active PFC (power factor correction) technology to reduce product power consumption;

b. Surge resistance: Comply with EN61000-4-5, 2KV/4KV, 8/20usec;



Product parameters：

347-480V input, 0-10V dimming

Input voltage range Vac

Power Factor

Output voltage range Vdc

Constant current mA

Constant current accuracy%

Typical efficiency%

Applications

UL cUL

US class 2

CN class 2

FCC

LPS40W480 Series

@347V

@480V

LPS40W480-130-C0300-RD

347~480

0.97

0.95

43-130

300

±5

87

indoor

Yes

-

-

Yes

LPS40W480-114-C0350-RD

347~480

0.97

0.95

38-114

350

±5

87

indoor

Yes

-

-

Yes

LPS40W480-100-C0400-RD

347~480

0.97

0.95

33-100

400

±5

86

indoor

Yes

-

-

Yes

LPS40W480-72-C0550-RD

347~480

0.97

0.95

24-72

550

±5

86

indoor

Yes

-

-

Yes

LPS40W480-57-C0700-RD

347~480

0.97

0.95

19-57

700

±5

86

indoor

Yes

Yes

Yes

Yes

LPS40W480-48-C0830-RD

347~480

0.97

0.95

16-48

830

±5

85

indoor

Yes

Yes

Yes

Yes

LPS40W480-45-C0900-RD

347~480

0.97

0.95

15-45

900

±5

85

indoor

Yes

Yes

Yes

Yes

LPS40W480-40-C1000-RD

347~480

0.97

0.95

13-40

1000

±5

85

indoor

Yes

Yes

Yes

Yes

LPS40W480-36-C1350-RD

347~480

0.97

0.95

12-36

1350

±5

85

indoor

Yes

Yes

Yes

Yes

LPS40W480-36-C1100-RD

347~480

0.97

0.95

12-36

1100

±5

85

indoor

Yes

Yes

Yes

Yes

LPS40W480-30-C1400-RD

347~480

0.97

0.95

10-30

1400

±5

85

indoor

Yes

Yes

Yes

Yes

LPS40W480-24-C1670-RD

347~480

0.97

0.95

8-24

1670

±5

85

indoor

Yes

Yes

Yes

Yes

LPS40W480-12-C3330-RD

347~480

0.97

0.95

4-12

3330

±5

83

indoor

Yes

Yes

Yes

Yes



1. Operating temperature: −30°~ +90°C (Case Temperature);

2. Storage temperature: −30°~ +85°C;

3. Humidity (non-condensing): 5% ~ 95%RH;

4. Product cooling method: natural cooling;

5. Vibration resistance: 5 ~ 55HZ/3g 30 minutes;

6. Shock resistance: 1g/S;

7. MTBF: 480,000 hours, at full load and 40°C ambient temperature;

8. LIFE 1: 50,000 hours, at full load and 40°C ambient temperature;

9. Maximum input current: 0.15A (@347V, full load);

a. Input surge current: <50A (25°C, 480V, cold start);

d. Current constant current accuracy: ±3%; Load adjustment accuracy: ±3% ;

e. Dimming input: 0-10V/2mA;

f. Output current range: 10-100%; linear dimming;

g. Output current ripple: <±20% @ CCR load; <±30% @ LED load;

h. Leakage current: 300uA (typical value);

i. Output overvoltage, overcurrent, overtemperature, short circuit protection, can be automatically restored after cancellation.
