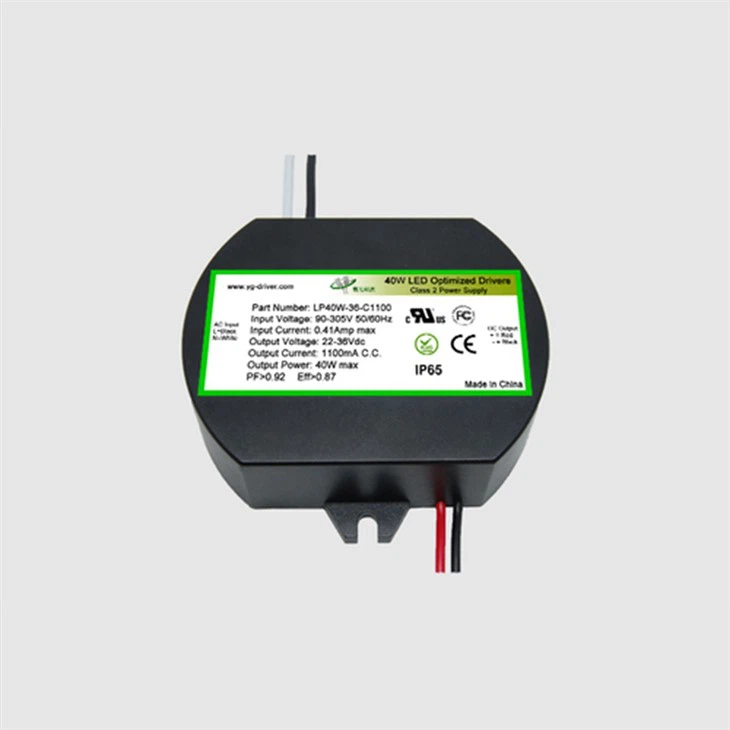

40W Constant Current Driver IP65 Compact And Efficient LP40W

Features:

a. Comply with PSE, CE & CCC

b. RoHs compliant;

c. Plastic Shell, Silicone Potting, Up to 120°C;

d. Compact, Lightweight Design;

e. Water Resistant and Dust Proof Design: IP65, NEMA4, for Dry, Damp, Wet Locations;

f. Standard electrical box for installation;

g. Active Power Factor Correction technology to reduce power consumption;

h. Safety Isolation between Primary and Secondary.

i. Surge Immunity ( Lightning Protection ): Comply with EN61000-4-5, AC line to line 1000V.



Product parameters：



Constant Current	Input Voltage Vac	Power Factor		Output Voltage Vdc	Constant Current mA	Current Accuracy %	Typical Efficiency %	Location
LP40W Series		@120V	@230V
LP40W-200-C0200	90~305	0.99	0.92	120-200	200	±5	91	Indoor
LP40W-114-C0350	90~305	0.99	0.92	68-114	350	±5	91	Indoor
LP40W-100-C0400	90~305	0.99	0.92	60-100	400	±5	90	Indoor
LP40W-72-C0550	90~305	0.99	0.92	43-72	550	±5	90	Indoor
LP40W-54-C0700	90~305	0.99	0.92	33-54	700	±5	88	Indoor
LP40W-48-C0830	90~305	0.99	0.92	29-48	830	±5	88	Indoor
LP40W-43-C0930	90~305	0.99	0.92	26-43	930	±5	87	Indoor
LP40W-36-C1100	90~305	0.99	0.92	22-36	1100	±5	87	Indoor
LP40W-28-C1400	90~305	0.99	0.92	17-28	1400	±5	86	Indoor
LP40W-24-C1660	90~305	0.99	0.92	15-24	1660	±5	86	Indoor
LP40W-12-C3340	90~305	0.99	0.92	8-12	3340	±5	85	Indoor



Product type:Constant Current Drive, Compact and efficient

Application:LED Lamps, LED Spotlights, LED Grille, LED PAR Lamp

Size:80mm(L)×78mm(W)×25mm(H)

Weight:195g

Warranty:Five years



1. Operating Temperature: −30 to +60°C;

2. Storage Temperature: −40 to +85°C;

3. Humidity (non-condensing): 5% to 95%RH;

4. Cooling: Convection;

5. Vibration Frequency: 5 ~ 55HZ/2g, 30 minutes;

6. Impact Resistance: 1g/S;

7. MTBF@40°C: 520,000 hours @ Full Load per MIL-217 Notice 2.;

8. LIFE@25°C: 120,000 hours @ Full Load per MIL-217 Notice 2.;

9. Safety: CISPR 22 CLASS B, CISPR 14-1 CLASS B,

EN61000-3-2 & EN61000-3-3 Class C,

GB19510.14-2009, GB19510.1-2009,

GB17743.1-2007, GB17625.1-2003

a. Maximum Input Current: 0.41A (@ 120V, full load);

b. Input Surge Current: <40A (25°C, 230V, cold start);

c. Constant Current Regulation: ±3%, Over Input Line Variation;

d. Load Regulation Accuracy: ±3%;

e. Output Current Ripple: < ±30%*Io

f. Leakage Current: 400uA typical; Hold up time: half cycle;

g. Protection: Output over-voltage protection;

Output over-current protection;

Output short circuit, auto-recovery;

Lightning & transient protection built in.
