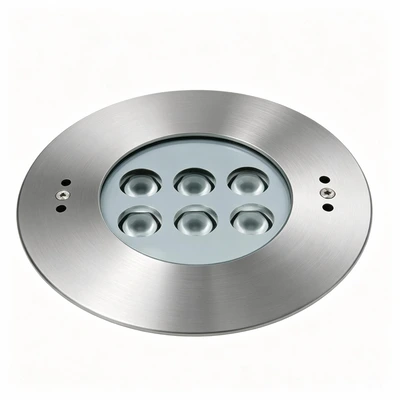

316SS-0602 LED Underwater Pool Light 12 W 316 SS IP68
316SS-0602 is the mid-size 12 W model of the 316 stainless steel pool light family, carrying six 2 W LED packages behind tempered glass in a D180 x H77 mm silvery body. Private pools and spa basins that specify 316 stainless steel get full underwater output without oversizing the fitting. It fixes to the shell on a DC 24 V supply, seals to IP68, and runs a 2700K~6500K color range. Ships from China.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Description:
The 316SS-0602 is the mid size of the 316 stainless steel pool light family, with six 2 W LED packages totaling 12 W in a D180 x H77 mm body. It is the natural choice for private pools and spa basins that specify 316 stainless steel for durability, at a budget-weight point between the larger 316SS-1202 24 W and the compact 316SS-0402 8 W. DC 24 V supply, IP68 sealing, silvery finish.
Features:
1. 12 W total output from six 2 W LED packages.
2. D180 x H77 mm moulded shaped SUS 316L body, hard chrome plated.
3. Step tempered glass lens, T=8 mm, over an optical lens of ≥85% efficiency.
4. CREE / OSRAM LED packages on a constant current output driver.
5. DC 24 V supply, IP68 sealing, 2700K~6500K range in silvery finish.
Material Specifications:
Front cover & housing: moulded shaped stainless steel SUS 316L, hard chrome plated
LED: CREE / OSRAM
Lens: optical lens, efficiency ≥85%
Glass: step tempered glass, T=8 mm
Gasket: tooling shaped seal
Driver: constant current output
Power cable: H07RN-F 2X1.0 mm², L=3 m (low voltage)
H05RN-F 4X0.75 mm², L=3 m (RGB)
H05RN-F 5X0.5 mm², L=3 m (RGB 3in1, RGBW 4in1 DMX512)
Mounting sleeve: ABS
Dimmable support: Triac / PWM / 1-10V / DALI / DMX512
Product parameters:
| Model | 316SS-0602 12W |
| Materials | 316 Stainless Steel |
| Power | 12 W (6 x 2 W) |
| Voltage | DC 24 V |
| Color | 2700K - 6500K |
| Finish | Silvery |
| Size | D180 x H77 mm |
| IP Rate | IP68 |
| Warranty | 2 Years |
Product Size:
D180 x H77 mm.
