Asymmetric LED Wall Washer TL-XQD-J1801 18-48 W 18+55 Beam

Asymmetric Linear Wall Washer, 18–48 W, 18°+55° Beam & DMX512

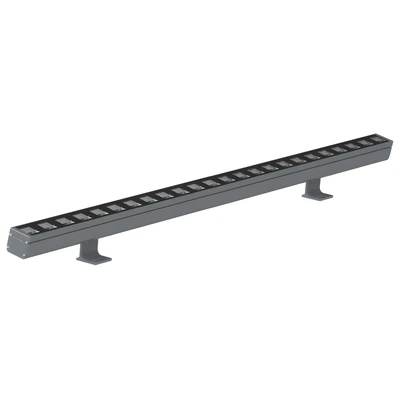

The J series is a wall washer platform from 18 W up to 48 W, all 1000 mm long and IP66, with an 18+55 degree asymmetric beam that washes upward across the wall. Every model shares one platform: 6063 aluminum body, SUS304 stainless steel screws, CREE/OSRAM LEDs, and DMX512 control with automatic addressing. Pick the power, the color and the beam, and the order sheet carries the right model number. Pictured: TL-XQD-J1801. All models in this range share the same body and 1000 mm length, differing only in power and color.

The J1801 carries an 18°+55° asymmetric beam that washes upward over a wall, which suits low-to-mid-rise facades such as podiums, townhouse blocks and stair cores. At 38×82 mm it runs on DC24V, in 18W, 24W and 36W single color plus 36W and 48W RGBW.

To order, pick the power (18 W to 48 W) and the color (single color or RGBW 4-in-1). Each row below is its own model.

Beam Options (choose per order)

The asymmetric beam is 18°+55°, throwing light upward across the wall from a fixture mounted close to the surface, for an even wash over low to mid-rise elevations.

Color & Control

Single color models run ON-OFF or through DMX512 dimming. RGBW 4-in-1 models put red, green, blue and white in one LED for full color mixing, driven per fixture over DMX512 with automatic addressing, so one run can chase, fade or hold a scene without rewiring.

Housing & Build

6063 aluminum body, SUS304 stainless steel screws and a double slider mounting bracket, finished in outdoor electrostatic coating. The seal is structural with no glue process, rated IP66, with an internal cavity for heat dissipation.
