Slim Linear LED Wall Washer TL-XQD-I2401 18-48 W Selectable Beam

Slim Linear Wall Washer, 18–48 W, Selectable Beam & DMX512

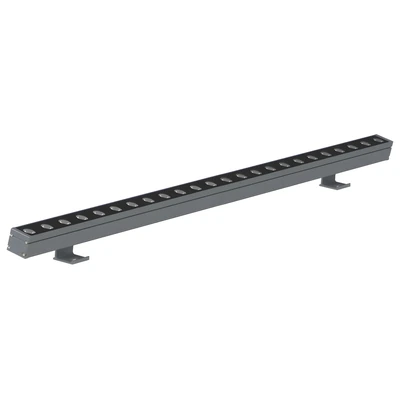

The I series is the slimmest wall washer platform in the range, from 18 W up to 48 W, all 1000 mm long and IP66. Every model in the table below shares one platform: 6063 aluminum body, SUS304 stainless steel screws, CREE/OSRAM LEDs, selectable beam angles for even wall washing, and DMX512 control with automatic addressing. Pick the power, the color and the beam, and the order sheet carries the right model number. Pictured: TL-XQD-I2401. All models in this range share the same body and 1000 mm length, differing only in power and color.

The I2401 is the slimmest wall washer in the range at 36×68 mm. It offers selectable beam angles, so the same fixture can wash a low shopfront or a taller wall by picking the right optic. It runs on DC24V, in 18W, 24W or 36W single color, with 36W and 48W RGBW for color-changing schemes.

To order, pick the power (18 W to 48 W), the color (single color or RGBW 4-in-1) and the beam angle (20×45°, 10×60°, or 10° to 60°). Each row below is its own model.

Beam Options (choose per order)

Beam angles are selectable: 20×45° and 10×60° asymmetric for a wall wash that hugs the surface, plus 10°, 15°, 30°, 45° and 60° for an even spread across the wall.

Color & Control

Single color models run ON-OFF or through DMX512 dimming. RGBW 4-in-1 models put red, green, blue and white in one LED for full color mixing, driven per fixture over DMX512 with automatic addressing, so one run can chase, fade or hold a scene without rewiring.

Housing & Build

6063 aluminum body, SUS304 stainless steel screws and a double slider mounting bracket, finished in outdoor electrostatic coating. The seal is structural with no glue process, rated IP66, with an internal cavity for heat dissipation.
