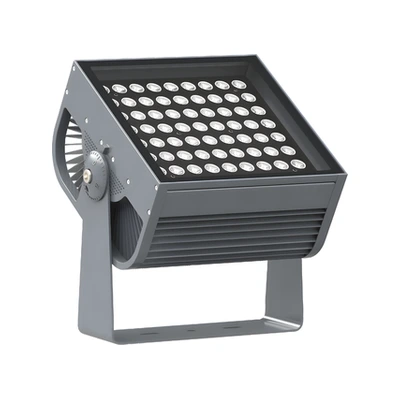

TL-TGD-M7203 Square Flood Light 200 W IP66 Extruded Aluminum

TL-TGD-M7203 Square Flood Light 200 W IP66 Extruded Aluminum

The TL-TGD-M7203 is a square flood light built as a square 331 mm body with a die-cast top cover, measuring L331 × W290 × H318 mm. It runs on AC 100-250 V with ON-OFF / DMX512 control and OSRAM LEDs, and seals to IP66 for year-round outdoor service. Two versions share the housing: the M7203 at 200 W with OSRAM LEDs and the M72F3 at 300 W in RGBW four-in-one color. Beam options run 15° to 60° at 2700K to 6000K, suiting building elevations, plazas and large signage. Sourced from China, specifications and pricing on request.

Send Inquiry
  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service
Product Introduction

Description:

The TL-TGD-M7203 lights building elevations, plazas and large signage from a square 331 mm body with a die-cast top cover, the 200 W member of the TL-TGD square flood light family. Two versions share the housing: the M7203 at 200 W with OSRAM LEDs and the M72F3 at 300 W in RGBW four-in-one color. Beam options run 15° to 60° at 2700K to 6000K, and the housing seals to IP66. Control runs ON-OFF / DMX512 at AC 100-250 V.



Features:

1. A square 331 mm body with a die-cast top cover, 200 W, for building elevations, plazas and large signage

2. Beam options from 15° to 60° across one housing, so the same fitting covers narrow accenting and wide washes

3. OSRAM LEDs with a constant current driver

4. 6063 extruded aluminum body with a die-cast top cover, electrostatic sprayed surface, bracket with a graduated dial and gear lock

5. Monochrome and RGBW four-in-one output on the same housing, both running ON-OFF / DMX512 control



Product parameters:



Model TL-TGD-M7203 TL-TGD-M72F3
Materials 6063 Extruded Aluminum + Die-Cast Aluminum 6063 Extruded Aluminum + Die-Cast Aluminum
Power 200 W 300 W
LED Source OSRAM RGBW 4-in-1
Light Output Monochrome RGBW full color
LED QTY 72 PCS 72 PCS
Control ON-OFF / DMX512 DMX512
Beam Angle 15° / 30° / 60° 15° / 30° / 60°
CRI >80 Ra Not applicable
Voltage AC 100-250 V AC 100-250 V
Color Temperature 2700K / 3000K / 4000K / 6000K Not applicable
Finish Black / White / Platinum Grey / Shiny Grey Black / White / Platinum Grey / Shiny Grey
Size L331 × W290 × H318 mm L331 × W290 × H318 mm
IP Rating IP66 IP66
Warranty 2 Years 2 Years
MOQ 100 100

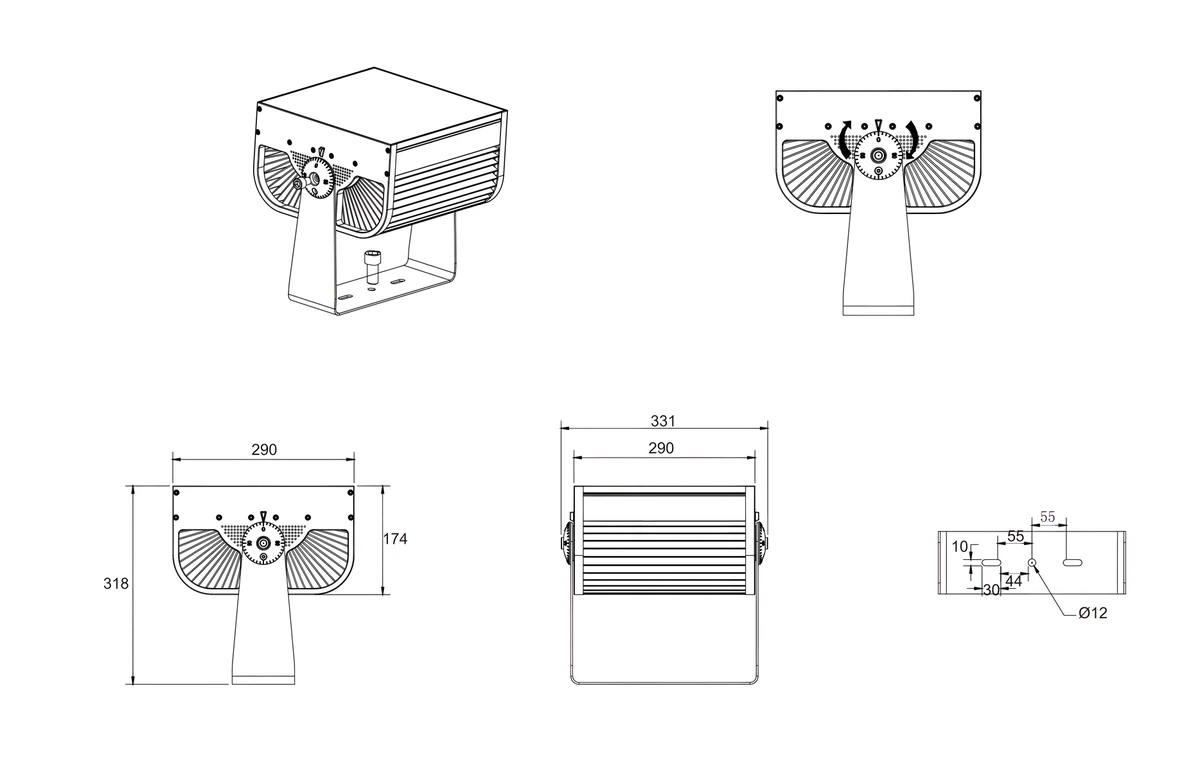

Installation drawing:

tl-tgd-m7203-floodlight-ip66-200w-aluminum-installation

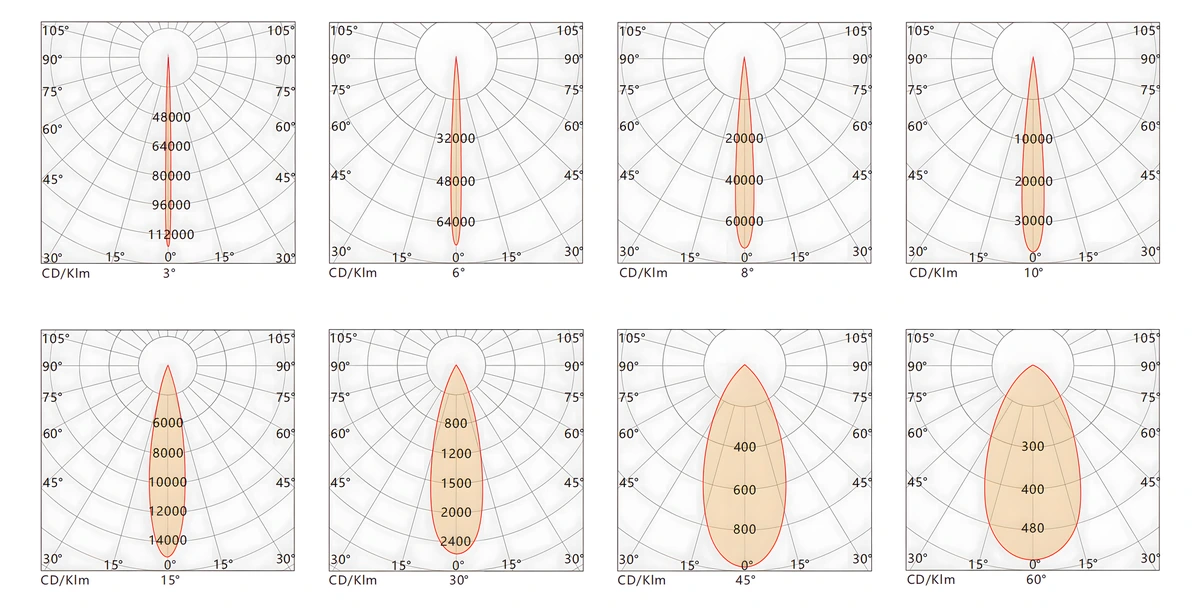

Photometric distribution curves:

tl-tgd-m7203-floodlight-ip66-200w-aluminum-photometric-curves
