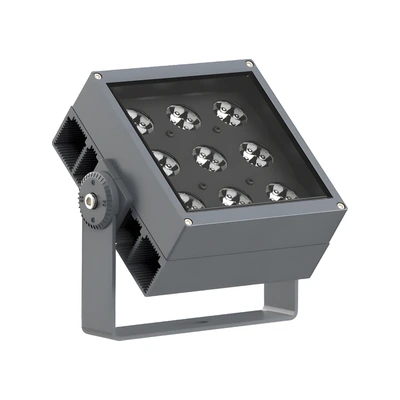

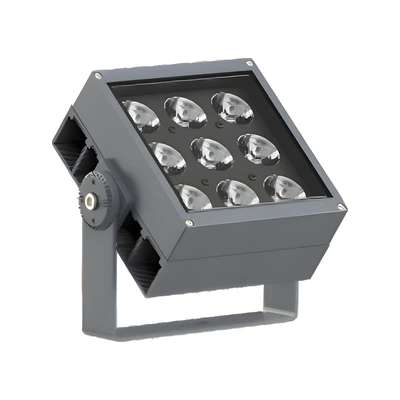

TL-TGD-L3601 Single-Row Flood Light 36 W IP66 Extruded Aluminum
video
TL-TGD-L3601 Single-Row Flood Light 36 W IP66 Extruded Aluminum

TL-TGD-L3601 Single-Row Flood Light 36 W IP66 Extruded Aluminum

The TL-TGD-L3601 is a single-row square flood light built as the shortest 187 mm bar in the L series, measuring L187 × W160 × H158 mm. It runs on AC 100-250 V / DC 24 V with ON-OFF / DMX512 control and OSRAM LEDs, and seals to IP66 for year-round outdoor service. 3 versions share the housing: the L3601 at 36 W with OSRAM LEDs, and the L12F3 at 36 W in RGBW four-in-one color, the L0904 at 36 W in 3535 LEDs. Beam options run 15° to 60° at 2700K to 6000K, suiting pathways, planting beds and small facades. Sourced from China, specifications and pricing on request.

Send Inquiry
  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service
Product Introduction

Description:

The TL-TGD-L3601 lights pathways, planting beds and small facades from the shortest 187 mm bar in the L series, the 36 W member of the TL-TGD single-row flood light family. 3 versions share the housing: the L3601 at 36 W with OSRAM LEDs, and the L12F3 at 36 W in RGBW four-in-one color, the L0904 at 36 W in 3535 LEDs. Beam options run 15° to 60° at 2700K to 6000K, and the housing seals to IP66. Control runs ON-OFF / DMX512 at AC 100-250 V / DC 24 V.



Features:

1. The shortest 187 mm bar in the L series, 36 W, for pathways, planting beds and small facades

2. Beam options from 15° to 60° across one housing, so the same fitting covers narrow accenting and wide washes

3. OSRAM LEDs with a constant current driver

4. 6063 extruded aluminum body with a die-cast top cover, electrostatic sprayed surface, bracket with a graduated dial and gear lock

5. Monochrome and RGBW four-in-one output on the same housing, both running ON-OFF / DMX512 control



Product parameters:



Model TL-TGD-L3601 TL-TGD-L12F3 TL-TGD-L0904
Materials 6063 Extruded Aluminum + Die-Cast Aluminum 6063 Extruded Aluminum + Die-Cast Aluminum 6063 Extruded Aluminum + Die-Cast Aluminum
Power 36 W 36 W 36 W
LED Source OSRAM RGBW 4-in-1 3535
Light Output Monochrome RGBW full color Monochrome
LED QTY 36 PCS 12 PCS 9 PCS
Control ON-OFF / DMX512 DMX512 ON-OFF
Beam Angle 15° / 30° / 45° / 60° 15° / 30° / 45° / 60° 15° / 30° / 45° / 60°
CRI >80 Ra Not applicable >80 Ra
Voltage AC 100-250 V / DC 24 V AC 100-250 V / DC 24 V AC 100-250 V / DC 24 V
Color Temperature 2700K / 3000K / 4000K / 6000K Not applicable 2700K / 3000K / 4000K / 6000K
Finish Black / White / Platinum Grey / Shiny Grey Black / White / Platinum Grey / Shiny Grey Black / White / Platinum Grey / Shiny Grey
Size L187 × W160 × H158 mm L187 × W160 × H158 mm L187 × W160 × H158 mm
IP Rating IP66 IP66 IP66
Warranty 2 Years 2 Years 2 Years
MOQ 100 100 100

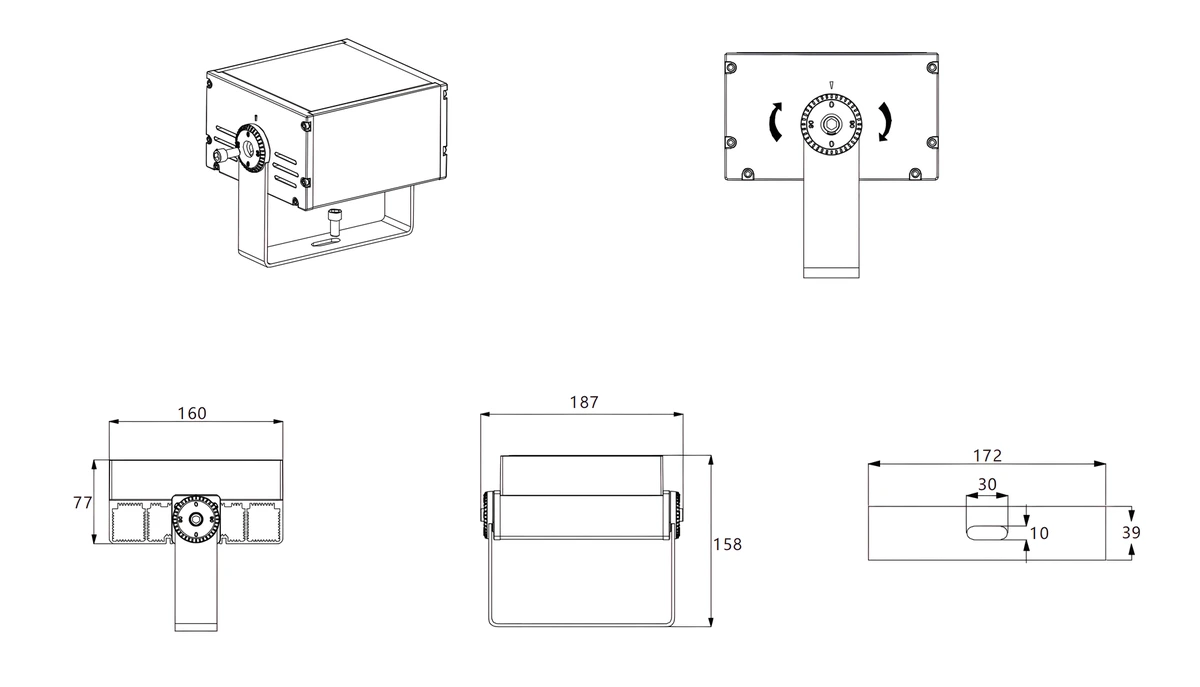

Installation drawing:

tl-tgd-l3601-floodlight-ip66-36w-aluminum-installation

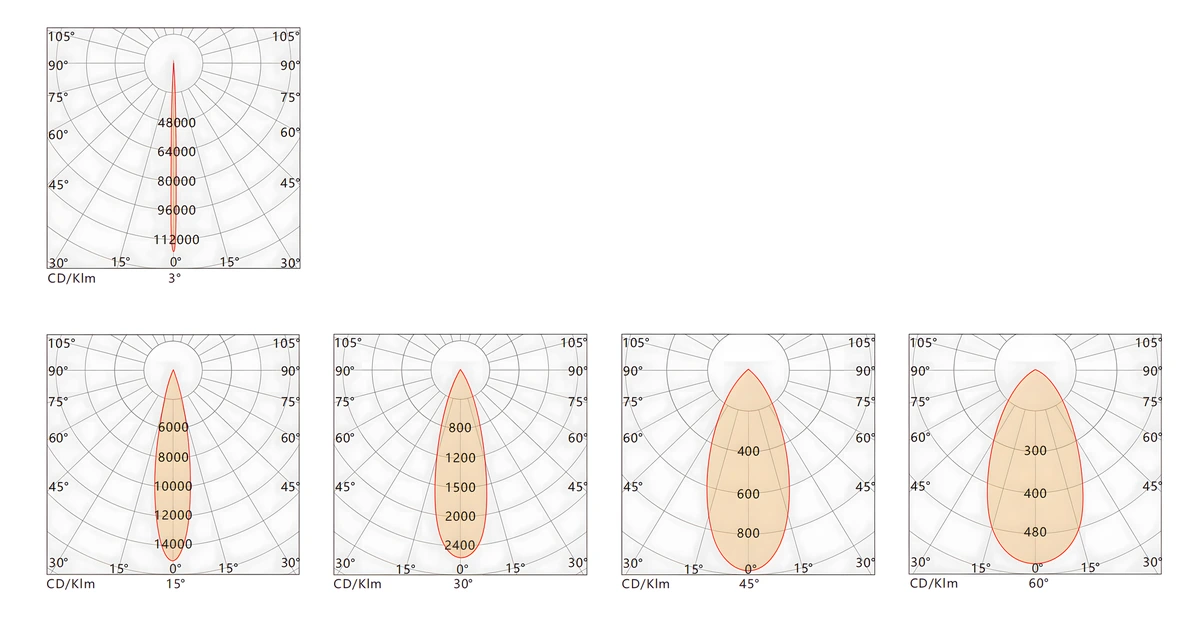

Photometric distribution curves:

tl-tgd-l3601-floodlight-ip66-36w-aluminum-photometric-curves
