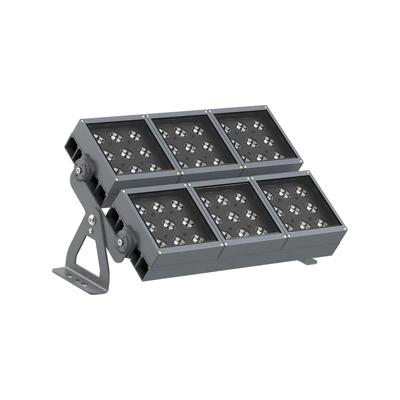

TL-TGD-L21601 Two-Row Flood Light 216 W IP66 Extruded Aluminum
video
TL-TGD-L21601 Two-Row Flood Light 216 W IP66 Extruded Aluminum

TL-TGD-L21601 Two-Row Flood Light 216 W IP66 Extruded Aluminum

The TL-TGD-L21601 is a two-row square flood light built as a two-row 485 mm body, measuring L485 × W340 × H214 mm. It runs on AC 100-250 V / DC 24 V with ON-OFF / DMX512 control and OSRAM LEDs, and seals to IP66 for year-round outdoor service. 3 versions share the housing: the L21601 at 216 W with OSRAM LEDs, and the L72F3 at 216 W in RGBW four-in-one color, the L5404 at 216 W in 3535 LEDs. Beam options run 15° to 60° at 2700K to 6000K, suiting large facades and floodlight poles. Sourced from China, specifications and pricing on request.

Send Inquiry
  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service
Product Introduction

Description:

The TL-TGD-L21601 lights large facades and floodlight poles from a two-row 485 mm body, the 216 W member of the TL-TGD two-row flood light family. 3 versions share the housing: the L21601 at 216 W with OSRAM LEDs, and the L72F3 at 216 W in RGBW four-in-one color, the L5404 at 216 W in 3535 LEDs. Beam options run 15° to 60° at 2700K to 6000K, and the housing seals to IP66. Control runs ON-OFF / DMX512 at AC 100-250 V / DC 24 V.



Features:

1. A two-row 485 mm body, 216 W, for large facades and floodlight poles

2. Beam options from 15° to 60° across one housing, so the same fitting covers narrow accenting and wide washes

3. OSRAM LEDs with a constant current driver

4. 6063 extruded aluminum body with a die-cast top cover, electrostatic sprayed surface, bracket with a graduated dial and gear lock

5. Monochrome and RGBW four-in-one output on the same housing, both running ON-OFF / DMX512 control



Product parameters:



Model TL-TGD-L21601 TL-TGD-L72F3 TL-TGD-L5404
Materials 6063 Extruded Aluminum + Die-Cast Aluminum 6063 Extruded Aluminum + Die-Cast Aluminum 6063 Extruded Aluminum + Die-Cast Aluminum
Power 216 W 216 W 216 W
LED Source OSRAM RGBW 4-in-1 3535
Light Output Monochrome RGBW full color Monochrome
LED QTY 216 PCS 72 PCS 54 PCS
Control ON-OFF / DMX512 DMX512 ON-OFF
Beam Angle 15° / 30° / 45° / 60° 15° / 30° / 45° / 60° 15° / 30° / 45° / 60°
CRI >80 Ra Not applicable >80 Ra
Voltage AC 100-250 V / DC 24 V AC 100-250 V / DC 24 V AC 100-250 V / DC 24 V
Color Temperature 2700K / 3000K / 4000K / 6000K Not applicable 2700K / 3000K / 4000K / 6000K
Finish Black / White / Platinum Grey / Shiny Grey Black / White / Platinum Grey / Shiny Grey Black / White / Platinum Grey / Shiny Grey
Size L485 × W340 × H214 mm L485 × W340 × H214 mm L485 × W340 × H214 mm
IP Rating IP66 IP66 IP66
Warranty 2 Years 2 Years 2 Years
MOQ 100 100 100

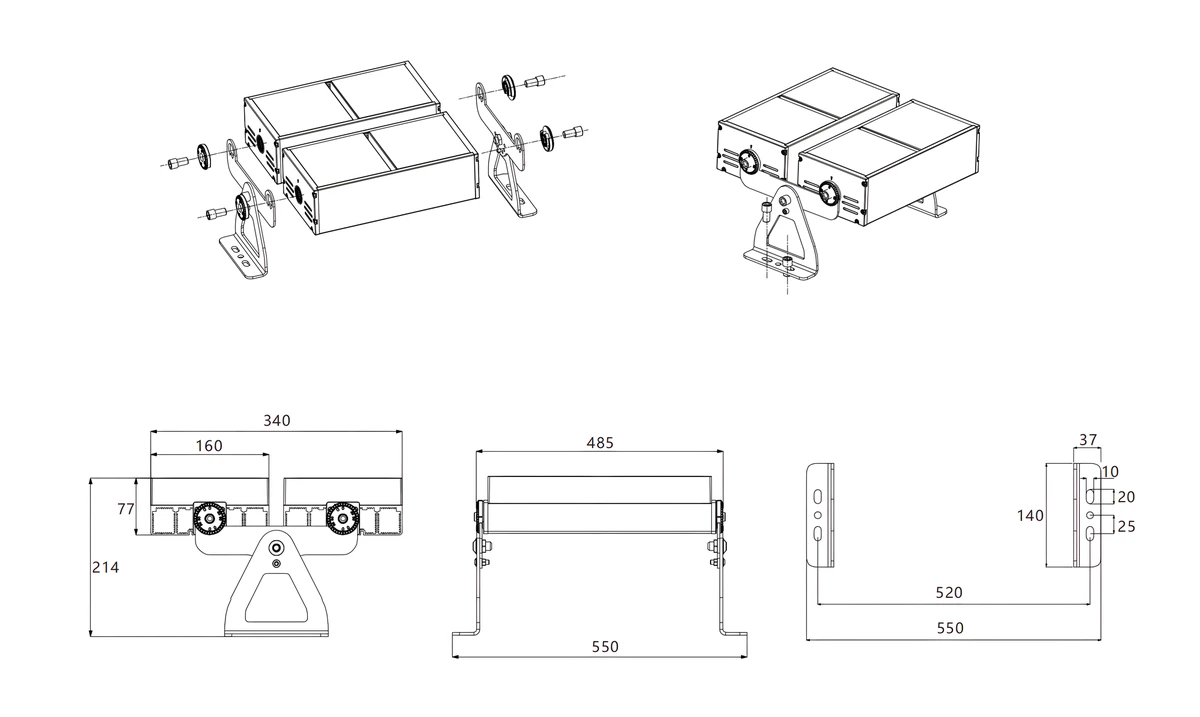

Installation drawing:

tl-tgd-l21601-floodlight-ip66-216w-aluminum-installation



Photometric distribution curves:

tl-tgd-l21601-floodlight-ip66-216w-aluminum-photometric-curves

Hot Tags: two-row flood light, led flood light, outdoor flood light, 216w flood light, ip66 flood light, narrow beam flood light, rgbw flood light, dmx512 flood light, extruded aluminum flood light, architectural flood light, China flood light supplier
