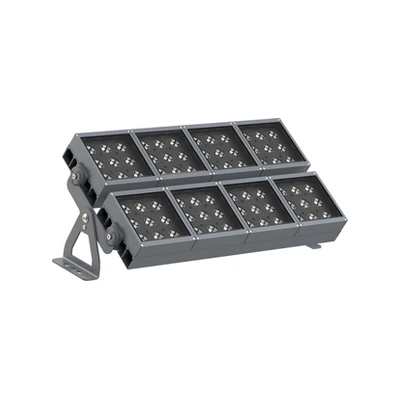

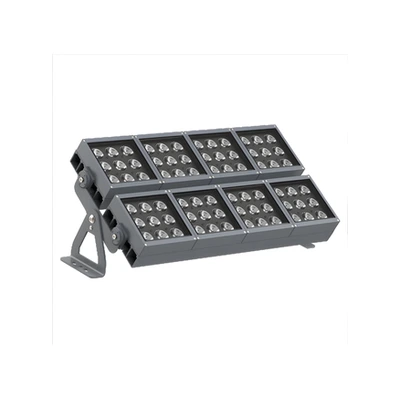

TL-TGD-L28801 Two-Row Flood Light 288 W IP66 Extruded Aluminum
video
TL-TGD-L28801 Two-Row Flood Light 288 W IP66 Extruded Aluminum

TL-TGD-L28801 Two-Row Flood Light 288 W IP66 Extruded Aluminum

The TL-TGD-L28801 is a two-row square flood light built as the largest two-row 637 mm body in the L series, measuring L637 × W340 × H214 mm. It runs on AC 100-250 V / DC 24 V with ON-OFF / DMX512 control and OSRAM LEDs, and seals to IP66 for year-round outdoor service. 3 versions share the housing: the L28801 at 288 W with OSRAM LEDs, and the L96F3 at 288 W in RGBW four-in-one color, the L7204 at 288 W in 3535 LEDs. Beam options run 15° to 60° at 2700K to 6000K, suiting stadium aprons, big elevations and masts. Sourced from China, specifications and pricing on request.

Send Inquiry
  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service
Product Introduction

Description:

The TL-TGD-L28801 lights stadium aprons, big elevations and masts from the largest two-row 637 mm body in the L series, the 288 W member of the TL-TGD two-row flood light family. 3 versions share the housing: the L28801 at 288 W with OSRAM LEDs, and the L96F3 at 288 W in RGBW four-in-one color, the L7204 at 288 W in 3535 LEDs. Beam options run 15° to 60° at 2700K to 6000K, and the housing seals to IP66. Control runs ON-OFF / DMX512 at AC 100-250 V / DC 24 V.



Features:

1. The largest two-row 637 mm body in the L series, 288 W, for stadium aprons, big elevations and masts

2. Beam options from 15° to 60° across one housing, so the same fitting covers narrow accenting and wide washes

3. OSRAM LEDs with a constant current driver

4. 6063 extruded aluminum body with a die-cast top cover, electrostatic sprayed surface, bracket with a graduated dial and gear lock

5. Monochrome and RGBW four-in-one output on the same housing, both running ON-OFF / DMX512 control



Product parameters:



Model TL-TGD-L28801 TL-TGD-L96F3 TL-TGD-L7204
Materials 6063 Extruded Aluminum + Die-Cast Aluminum 6063 Extruded Aluminum + Die-Cast Aluminum 6063 Extruded Aluminum + Die-Cast Aluminum
Power 288 W 288 W 288 W
LED Source OSRAM RGBW 4-in-1 3535
Light Output Monochrome RGBW full color Monochrome
LED QTY 288 PCS 96 PCS 72 PCS
Control ON-OFF / DMX512 DMX512 ON-OFF
Beam Angle 15° / 30° / 45° / 60° 15° / 30° / 45° / 60° 15° / 30° / 45° / 60°
CRI >80 Ra Not applicable >80 Ra
Voltage AC 100-250 V / DC 24 V AC 100-250 V / DC 24 V AC 100-250 V / DC 24 V
Color Temperature 2700K / 3000K / 4000K / 6000K Not applicable 2700K / 3000K / 4000K / 6000K
Finish Black / White / Platinum Grey / Shiny Grey Black / White / Platinum Grey / Shiny Grey Black / White / Platinum Grey / Shiny Grey
Size L637 × W340 × H214 mm L637 × W340 × H214 mm L637 × W340 × H214 mm
IP Rating IP66 IP66 IP66
Warranty 2 Years 2 Years 2 Years
MOQ 100 100 100

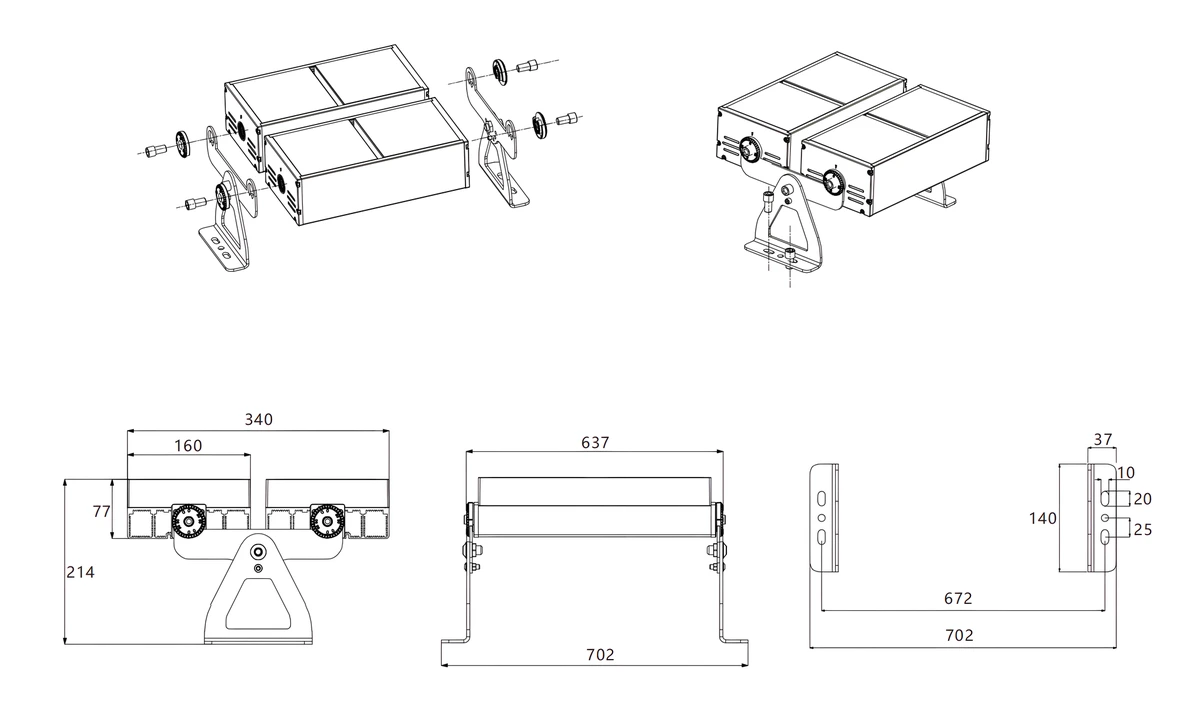

Installation drawing:

tl-tgd-l28801-floodlight-ip66-288w-aluminum-installation

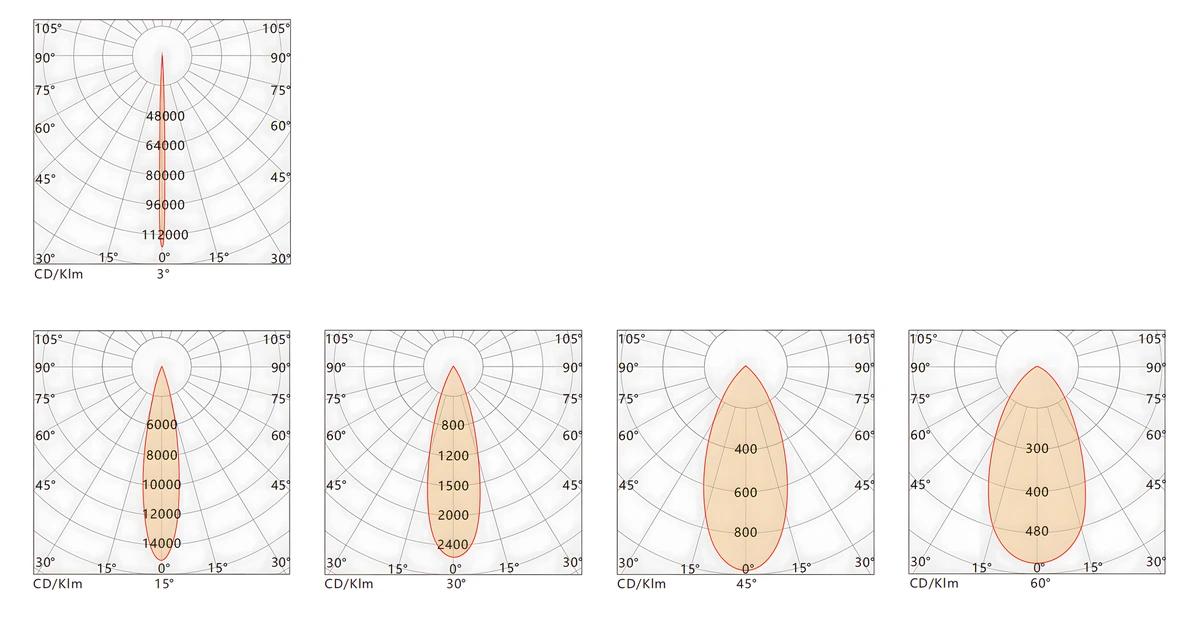

Photometric distribution curves:

tl-tgd-l28801-floodlight-ip66-288w-aluminum-photometric-curves
