TL-TGD-L7201 Single-Row Flood Light 72 W IP66 Extruded Aluminum
video
TL-TGD-L7201 Single-Row Flood Light 72 W IP66 Extruded Aluminum

TL-TGD-L7201 Single-Row Flood Light 72 W IP66 Extruded Aluminum

The TL-TGD-L7201 is a single-row square flood light built as a 339 mm single-row bar, measuring L339 × W160 × H158 mm. It runs on AC 100-250 V / DC 24 V with ON-OFF / DMX512 control and OSRAM LEDs, and seals to IP66 for year-round outdoor service. 3 versions share the housing: the L7201 at 72 W with OSRAM LEDs, and the L24F3 at 72 W in RGBW four-in-one color, the L1804 at 72 W in 3535 LEDs. Beam options run 15° to 60° at 2700K to 6000K, suiting tree groups and mid-height wall washes. Sourced from China, specifications and pricing on request.

Send Inquiry
  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service
Product Introduction

Description:

The TL-TGD-L7201 lights tree groups and mid-height wall washes from a 339 mm single-row bar, the 72 W member of the TL-TGD single-row flood light family. 3 versions share the housing: the L7201 at 72 W with OSRAM LEDs, and the L24F3 at 72 W in RGBW four-in-one color, the L1804 at 72 W in 3535 LEDs. Beam options run 15° to 60° at 2700K to 6000K, and the housing seals to IP66. Control runs ON-OFF / DMX512 at AC 100-250 V / DC 24 V.



Features:

1. A 339 mm single-row bar, 72 W, for tree groups and mid-height wall washes

2. Beam options from 15° to 60° across one housing, so the same fitting covers narrow accenting and wide washes

3. OSRAM LEDs with a constant current driver

4. 6063 extruded aluminum body with a die-cast top cover, electrostatic sprayed surface, bracket with a graduated dial and gear lock

5. Monochrome and RGBW four-in-one output on the same housing, both running ON-OFF / DMX512 control



Product parameters:



Model TL-TGD-L7201 TL-TGD-L24F3 TL-TGD-L1804
Materials 6063 Extruded Aluminum + Die-Cast Aluminum 6063 Extruded Aluminum + Die-Cast Aluminum 6063 Extruded Aluminum + Die-Cast Aluminum
Power 72 W 72 W 72 W
LED Source OSRAM RGBW 4-in-1 3535
Light Output Monochrome RGBW full color Monochrome
LED QTY 72 PCS 24 PCS 18 PCS
Control ON-OFF / DMX512 DMX512 ON-OFF
Beam Angle 15° / 30° / 45° / 60° 15° / 30° / 45° / 60° 15° / 30° / 45° / 60°
CRI >80 Ra Not applicable >80 Ra
Voltage AC 100-250 V / DC 24 V AC 100-250 V / DC 24 V AC 100-250 V / DC 24 V
Color Temperature 2700K / 3000K / 4000K / 6000K Not applicable 2700K / 3000K / 4000K / 6000K
Finish Black / White / Platinum Grey / Shiny Grey Black / White / Platinum Grey / Shiny Grey Black / White / Platinum Grey / Shiny Grey
Size L339 × W160 × H158 mm L339 × W160 × H158 mm L339 × W160 × H158 mm
IP Rating IP66 IP66 IP66
Warranty 2 Years 2 Years 2 Years
MOQ 100 100 100

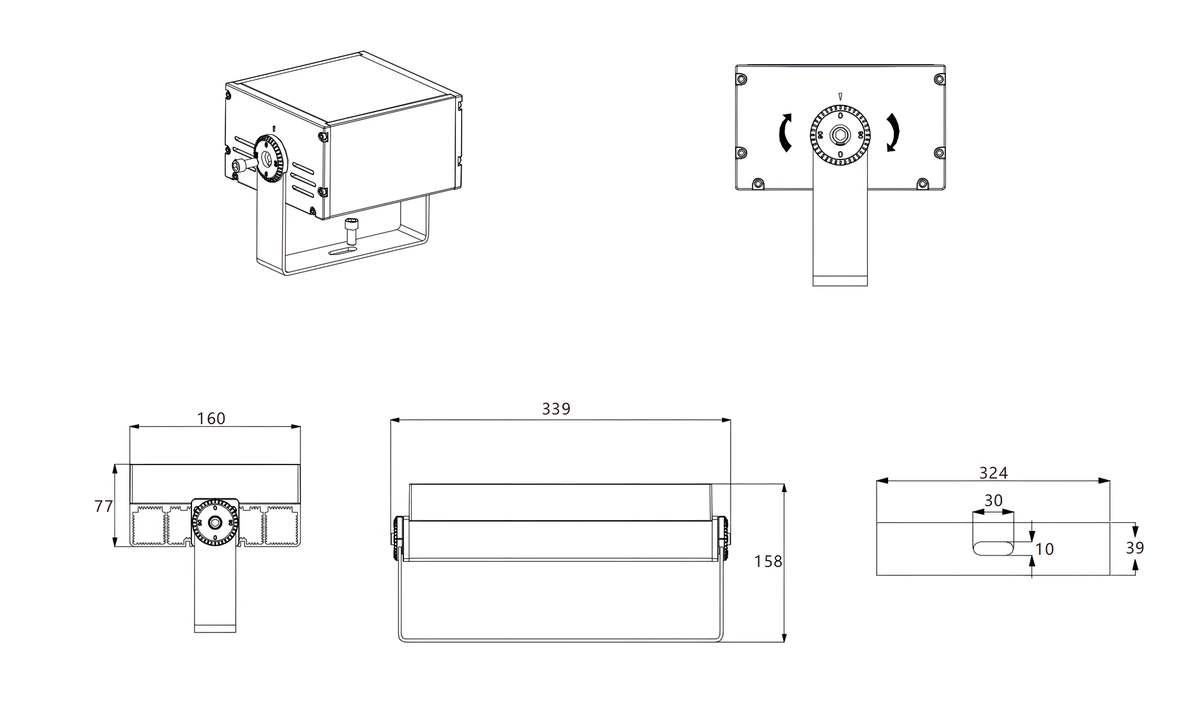

Installation drawing:

tl-tgd-l7201-floodlight-ip66-72w-aluminum-installation

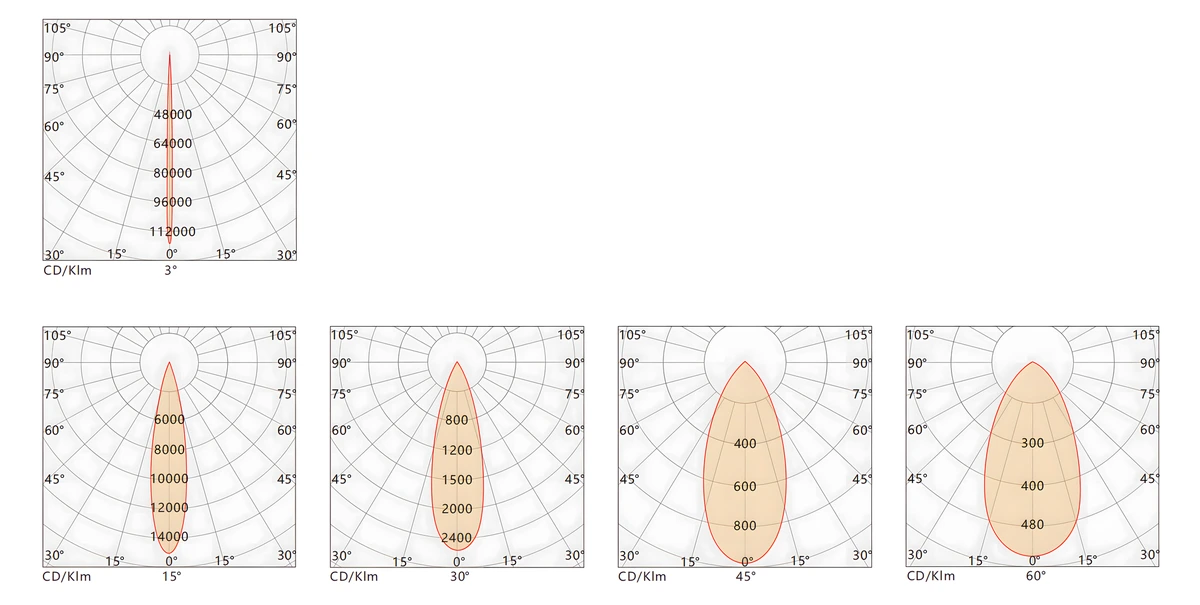

Photometric distribution curves:

tl-tgd-l7201-floodlight-ip66-72w-aluminum-photometric-curves
