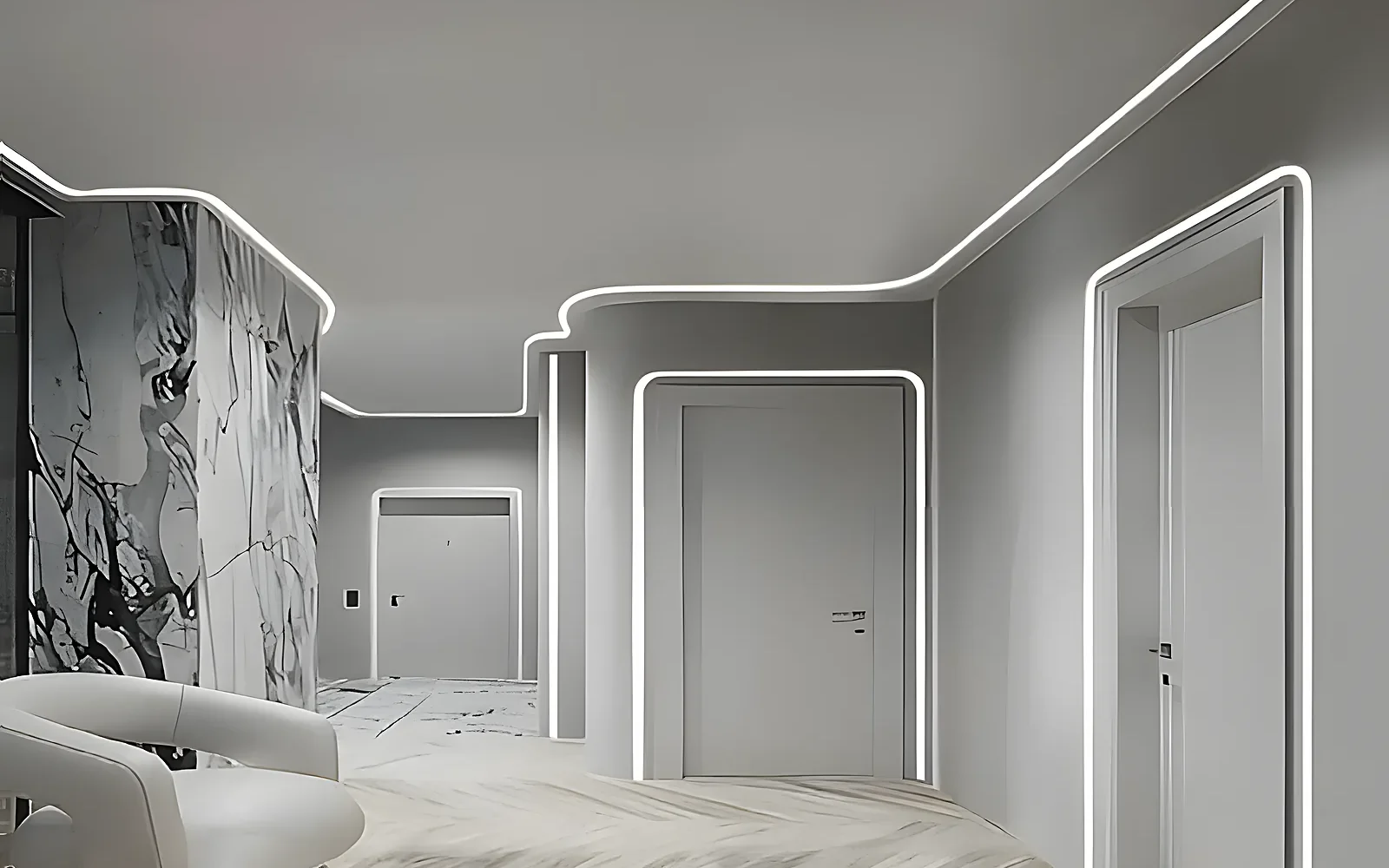

10×10 mm Side-Emitting Neon Flex Optics in Contoured Architectural Profiling

Linear accentuation of complex architectural geometry requires flexible optical profiles that conform to narrow reveal channels, sharp radius curves, and intricate facade contours. Architectural lighting designs utilize continuous linear light lines to emphasize structural edges, highlight curved soffits, and trace organic building envelopes. Physical limitations in conventional rigid channels or standard flexible tapes often restrict smooth placement along non-linear architectural elements. The 10×10 mm side-emitting silicone neon flex resolves geometric integration challenges through an asymmetrical optical emission axis, enabling uninterrupted illumination along curved architectural surfaces without requiring sectioned joints or mechanical corner connectors.





Side-Emitting Construction

The physical construction of the 10×10 mm profile embeds a dense linear array of LED diodes positioned perpendicularly to the flat mounting base. Diode placement puts the primary light generation plane along the side vertical face of the square silicone extrusion rather than the top horizontal face. As light projects outward from the lateral surface, internal optical geometry redistributes radiant energy across a wide diffuser face. The square 10×10 mm cross-sectional profile maintains uniform structural resistance against twisting while permitting smooth bending along the horizontal mounting plane. Internal flexible copper circuit boards flex horizontally without exerting excessive mechanical stress on diode solder joints or internal electrical traces.



Lateral Bending vs Top-Emitting Tapes

Side-emitting flex optics enable smooth horizontal bending curves that standard top-emitting flex strips cannot achieve without structural distortion. Top-emitting flexible strips flex vertically along their longitudinal axis but resist lateral bending across their width, causing thermal substrate buckling or trace fractures when forced around horizontal radii. The side-emitting orientation allows the 10×10 mm flex to follow serpentine wall faces, circular column capitals, curved channel reveals, and custom architectural soffits. Continuous curvature prevents optical dark gaps, maintaining a continuous light line across extended architectural transitions.



Optical diffusion within high-transmittance optical silicone encapsulation transforms individual point-source diode emissions into a uniform, continuous beam profile. The optical silicone matrix contains light-scattering micro-particles that blend light before radiant energy exits the outer profile surface. Micro-particle diffusion eliminates visible diode pixellation, preventing bright spots or dark inter-diode gaps along the emitting face. Uniform light distribution maintains optical clarity across varying viewing angles, protecting visual aesthetics when linear reveals sit within close sightlines of building occupants.



24 V DC Power and Voltage Drop

Electrical power delivery relies on a constant-voltage 24 V DC electrical distribution system that maintains diode driving current across continuous profile runs. Operating on a 24 V DC supply limits current magnitude compared to lower voltage options, reducing resistive power losses and thermal accumulation along internal copper conductors. Extended circuit lengths experience gradual voltage drop due to inherent trace resistance; low trace current preserves operating voltage along the length of the flex profile. Long linear installations utilize dual-end power feeding to equalize voltage distribution, preventing light output attenuation at the far end of extended runs.



Ambient temperature shifts alter the physical and electrical performance of flexible silicone luminaires across outdoor installation environments. High ambient temperatures increase baseline thermal energy within the 10×10 mm silicone body, requiring efficient conductive heat transfer from internal circuit boards to external surrounding air. High-transmittance optical silicone maintains physical elasticity and structural flexibility across broad operating temperature ranges without hardening, cracking, or turning brittle during extreme freezing conditions. Matched thermal expansion coefficients between internal copper substrates and outer silicone encapsulation prevent internal shear forces from delaminating circuit layers during cyclic heating and cooling.



Viewing Distance and Optical Comfort

Viewing distance and mounting elevation determine visual performance and optical comfort requirements for linear side-emitting installations. Close viewing distances, such as eye-level wall reveals or low-mounted step contour lighting, expose minor optical imperfections or diode pixellation if diffusion is insufficient. The dense internal diode arrangement combined with high-transmittance optical silicone diffusion creates an even emitting surface, preventing high-luminance diode hot spots from causing visual glare. At greater viewing distances, such as upper-facade cornices or high structural soffits, the broad lateral emission profile projects uniform accent lines that retain high visual definition against dark building surfaces.



Salt, Chemicals, and Ingress Protection

Environmental site conditions, including atmospheric salt exposure and chemical air pollutants, test the chemical durability of exterior linear fixtures. Direct salt fog deposition on conventional plastic enclosures induces material degradation, chemical yellowing, and surface embrittlement over extended outdoor exposure. High-transmittance optical silicone exhibits high chemical inertness, resisting reaction with airborne sodium chloride, ozone, and sulfur compounds. Non-porous silicone surface properties prevent salt crystal accumulation, protecting physical integrity and optical transmittance in coastal commercial property installations without requiring protective secondary housings.



Ingress protection tiers span IP67 for temporary weather exposure to IP68 for continuous submersion depth applications. IP67 ingress protection utilizes sealed end caps to prevent water penetration from heavy rain, splashing, and direct washdowns. Submersion applications demand IP68 ingress protection, where internal hydrostatic water pressure at greater depths could force moisture through micro-gaps in standard seals. IP68 side-emitting neon flex incorporates factory-molded silicone end caps and injection-molded power feed connections, establishing a continuous molecular bond across all termination points that resists water ingress under continuous hydraulic head pressure.



Field Cutting and End Sealing

Precision site adjustments rely on integrated cut marks positioned at regular 25 mm or 50 mm intervals along the flex profile length. Internal circuit layouts group diodes into discrete series circuits terminating at copper solder pads aligned with external physical cut indicators. Cutting the 10×10 mm profile only at designated 25 mm or 50 mm cut points preserves continuous electrical circuit integrity for remaining segments, eliminating dead diode groups. Factory-molded silicone end caps combined with liquid silicone sealing compounds restore IP67 or IP68 ingress protection to modified end terminations during field installation.



Alternative linear lighting constructions, such as rigid aluminium channels fitted with linear LED strips or standard top-emitting flex tapes, exhibit physical limitations when applied to contoured walls. Rigid channels require complex miter cuts, custom angle joiners, and segmented mounting tracks to trace circular contours, creating mechanical failure points and visible dark gaps at every joint interface. Top-emitting flex strips mounted sideways subject internal solder joints to continuous torsional stress, risking open-circuit failures. The 10×10 mm side-emitting silicone profile eliminates mechanical joints, absorbing contour bends within a continuous elastic body while protecting internal electrical connections.



Within the broader architectural linear lighting range, the 10×10 mm side-emitting silicone neon flex occupies the compact lateral-bending optical tier operating within the 24 V DC low-voltage power band. This profile size balances compact cross-sectional dimensions with optical surface area, fitting into narrow architectural reveal slots while delivering wide lateral light spread. Positioned between micro-linear accent tapes and larger structural neon profiles, the 10×10 mm side-emitting form factor provides a durable, weather-resistant optical solution for continuous geometric profiling across modern commercial property facades and interior feature reveals.
