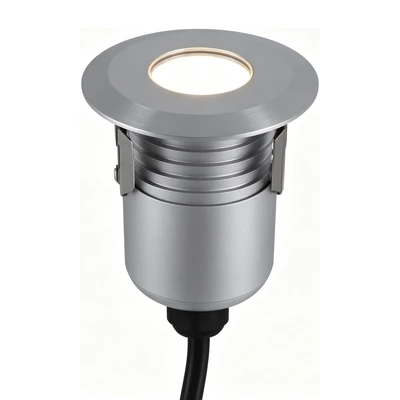

BE-WUL0103 In-ground Light 1 W IP67 Aluminium
The BE-WUL0103 is a 1 W IP67 LED outdoor in-ground up light producing 120 lm, offered as BE-WUL0103A with a round face cover and BE-WUL0103B with a square face cover on the same aluminium housing that carries a standard Matt Silver Anodized finish and optional MB or SS colors. Measuring Ø64 × 75 mm with a D51 cut-out for deck mounting and 80 mm recessed depth, the fixture accepts beam angles of 20° / 40° / 60° together with color temperatures of 2700 K / 3000 K / 4000 K. A built-in DC driver accepts 12/24 V DC input through a 2 m power cable and supports dimmable operation via 1-10 V. The fixture suits walkover paths, timber decks and paved courtyards. Optional accessories such as junction boxes, a mounting sleeve and glass lenses or a honeycomb louver can be specified separately to match project needs. MOQ is 100 pieces with a 3 year warranty.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Description:
BE-WUL0103 marks the transition between lit and unlit parts of a garden: at 120 lm it eases the eye from a bright terrace down onto a darker path, so the change of level never reads as a black gap. The Ø64 × 75 mm aluminium body recesses to an 80 mm depth through a D51 cut-out, sitting flush underfoot in deck boards and paving, and 1-10 V dimming on the built-in 12/24 V DC driver lets the level drop further as the evening wears on. Round or square face covers keep the look consistent across mixed surfaces.
On one Ø64 × 75 mm aluminium platform, BE-WUL0103 and BE-WUL0303 split by output alone: shared D51 deck cut-out, shared 80 mm recess and a shared 12/24 V DC driver with 1-10 V dimming. This 1 W version keeps a quiet 120 lm, made for marker points, step edges and soft path guidance where a low pool of light is enough. For the brighter twin at 250 lm, see the BE-WUL0303 3 W aluminium walkover in-ground light. For the 5 W member that shares the same optical accessory kit, see the BE-WUL0502 5 W aluminium walkover in-ground light.
Features:
1. Light output of 120 lm is provided by the 1 W LED.
2. Electrical input of 12/24 V DC is dimmable at 1-10 V using the built-in driver and 2 m cable.
3. The fitting envelope combines a Ø64 × 75 mm body with a D51 cut-out and 80 mm recessed depth.
4. Material is aluminium with a Matt Silver Anodized finish, rated IP67.
Product parameters:
| Model | BE-WUL0103A | BE-WUL0103B |
| Face Version | Round face cover / Square face cover | Round face cover / Square face cover |
| Materials | Aluminium | Aluminium |
| Beam Angle | 20° / 40° / 60° | 20° / 40° / 60° |
| Input Voltage | 12/24 V DC (built-in driver) | 12/24 V DC (built-in driver) |
| Dimming | 1-10 V | 1-10 V |
| Color Temperature | 2700 K / 3000 K / 4000 K | 2700 K / 3000 K / 4000 K |
| Cut-out | D51 | D51 |
| Recessed Depth | 80 mm | 80 mm |
| Size | Ø64 × 75 mm | Ø64 × 75 mm |
| Finish | Matt Silver Anodized | Matt Silver Anodized |
| IP Rating | IP67 | IP67 |
| Warranty | 3 Years | 3 Years |
| MOQ | 100 | 100 |
See our inground light waterproof specification guide for detailed material, IP and beam selection criteria.
Face Versions:
Version A (BE-WUL0103A): round face cover, a circular edge that sits flush in gravel joints and curved stone runs (shown in the product image above).
Version B (BE-WUL0103B): square face cover, straight rim lines that echo deck boards and cut stone blocks (shown in the second image below).
Product Size:
Beam Angle & Illuminance Diagram:
Optional Finish:
Beyond the standard Matt Silver Anodized finish, MB (Matt Black) and SS (Stainless Steel color) can be ordered as optional finishes.
Optional Optical Accessories:
The WUAG04L linear glass lens, the WUAG04S soften glass lens and the WUAH01 honeycomb louver (Ø31 × 2 mm) can be added for glare control and beam shaping.
Optional Accessories:
