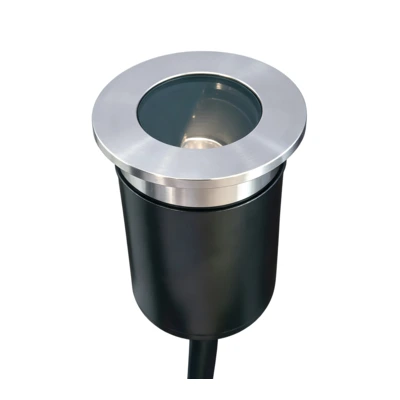

BE-WUL0111 Mini In-ground Light 1 W IP67 316 Stainless Steel
The BE-WUL0111 (versions A / B / C) is a mini 1 W IP67 LED in-ground light with a compact 35 mm face that delivers 120 lm with 25° / 40° / 60° beam angle options at 2700 K / 3000 K / 4000 K. The housing is machined from 316 stainless steel for permanent in-ground installation in decks, steps, pathways and commercial property landscapes. Dimming works with DALI, DMX, 1-10 V, Triac and PWM systems, and a mounting sleeve plus IP68 cable connector are available as optional accessories. Sourced from China with full specifications and pricing available on request.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Description:
BE-WUL0111 fits where deeper fixtures cannot: at 31 mm tall with a 35 mm face ring, it drops into a 30 mm cut-out in thin deck boards, narrow step noses and shallow stone joints. The 1 W LED outputs 120 lm at 25° / 40° / 60° beam options, and dimming runs on DALI, DMX, 1-10 V, Triac or PWM, so a landscape controller can fade the whole mini family together. Machined from 316 stainless steel in Matt Black or Matt Silver, the housing holds its finish against coastal air and ground contact.
The BE-WUL0111 and the BE-WUL0112 (12/24 V DC) share the same 1 W LED, 316 stainless steel housing and face versions, and differ only in the power supply and recessed depth: the BE-WUL0111 runs on 350 mA constant current with DALI, DMX, 1-10 V, Triac and PWM dimming at a 31 mm depth, while the BE-WUL0112 runs on 12/24 V DC through a built-in driver with a 50 cm power cable at a 55 mm depth. For the 12/24 V DC version, see the BE-WUL0112 link above. The BE-WUL0113 (24 V DC) is the 0.5 W member of the same family, running on 24 V DC with a built-in driver at a 35 mm recessed depth.
Features:
1. 316 stainless steel housing stands up to coastal air, humidity and ground contact where standard 304 grade corrodes
2. IP67 sealed construction keeps water and dust out of the in-ground installation for year round operation
3. One driver platform covers DALI, DMX, 1-10 V, Triac and PWM, so the fixture drops into any dimming setup on site
4. Compact 35 mm face with a 30 mm cut-out and 31 mm depth suits retrofit work in timber decking, stone paving and concrete
Product parameters:
| Model | BE-WUL0111A | BE-WUL0111B | BE-WUL0111C |

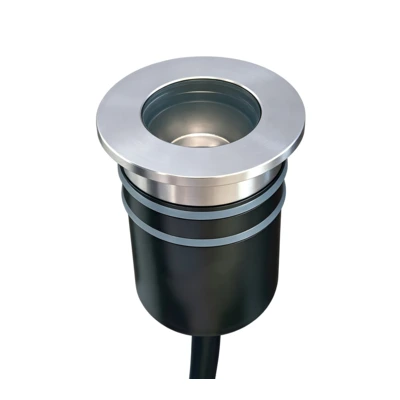

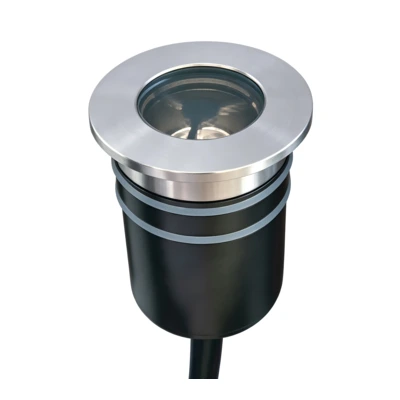

| Face Version | Standard | Semi-shaded glass | Trident-shaped center |
| Materials | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| Power | 1 W | 1 W | 1 W |
| Lumen | 120 lm | 120 lm | 120 lm |
| Beam Angle | 25° / 40° / 60° | 25° / 40° / 60° | 25° / 40° / 60° |
| Voltage | 350 mA (constant current) | 350 mA (constant current) | 350 mA (constant current) |
| Color Temperature | 2700 K / 3000 K / 4000 K | 2700 K / 3000 K / 4000 K | 2700 K / 3000 K / 4000 K |
| Finish | Matt Black / Matt Silver | Matt Black / Matt Silver | Matt Black / Matt Silver |
| Size | Ø35 × 31 mm | Ø35 × 31 mm | Ø35 × 31 mm |
| IP Rating | IP67 | IP67 | IP67 |
| Warranty | 3 Years | 3 Years | 3 Years |
| MOQ | 100 | 100 | 100 |
See our inground light waterproof specification guide for detailed material, IP and beam selection criteria.

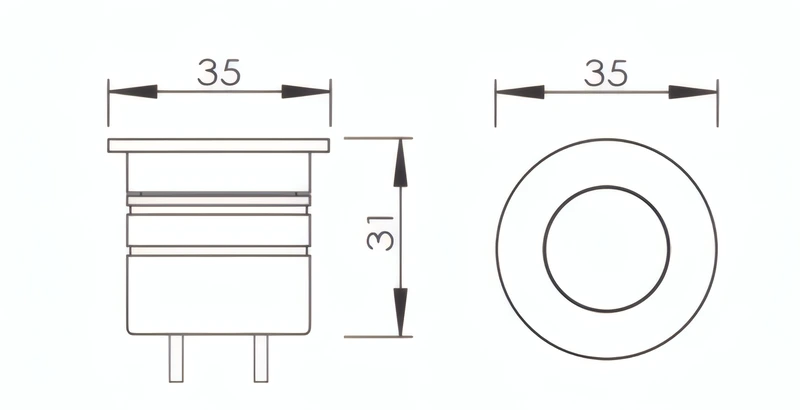

Product Size:
Beam Angle & Illuminance Diagram:

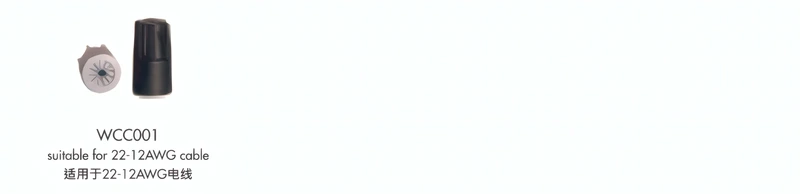

Optional Accessories:
