BE-WUL0112 Mini In-ground Light 1 W IP67 316 Stainless Steel
The BE-WUL0112 (versions A / B / C) is a mini 1 W IP67 LED in-ground light powered by 12/24 V DC through a built-in DC driver with a 50 cm power cable, delivering 120 lm with 25° / 40° / 60° beam angle options at 2700 K / 3000 K / 4000 K. The 316L stainless steel housing with a sunken light source provides reduced glare for flush mounting in a D30 cut-out at 55 mm recessed depth. Finishes come in black or stainless steel color with optional matte black or matte silver, and a stainless steel 304 mounting sleeve plus IP68 junction box are available as optional accessories. Sourced from China with full specifications and pricing available on request.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Description:
BE-WUL0112 disappears into the deck: a D30 cut-out and the 316L stainless steel body recessed 55 mm leave only the light point visible, so timber lines and stone joints stay uninterrupted by hardware. The 1 W LED puts out 120 lm at 25° / 40° / 60° beam options, enough to outline a step nose or path edge at close range, and the built-in 12/24 V DC driver with a 50 cm cable connects straight to a garden low-voltage circuit. Version A gives a full lens, version B a semi-shaded glass and version C a trident center, letting one deck mix light characters without mixing fitting sizes.
The BE-WUL0111 and the BE-WUL0112 (12/24 V DC) share the same 1 W LED, 316 stainless steel housing and face versions, and differ only in the power supply and recessed depth: the BE-WUL0111 runs on 350 mA constant current with DALI, DMX, 1-10 V, Triac and PWM dimming at a 31 mm depth, while the BE-WUL0112 runs on 12/24 V DC through a built-in driver with a 50 cm power cable at a 55 mm depth. For the dimmable 350 mA constant current version, see the BE-WUL0111 mini in-ground light. The BE-WUL0113 (24 V DC) is the 0.5 W member of the same family, running on 24 V DC with a built-in driver at a 35 mm recessed depth.
Features:
1. Built-in DC driver with a 50 cm power cable runs on 12/24 V DC without extra wiring components on site
2. D30 cut-out with 55 mm recessed depth and the included stainless steel 304 mounting sleeve simplify flush installation
3. 316L stainless steel housing in black or stainless steel color, with optional matte black or matte silver, stands up to outdoor ground contact
4. Sunken light source with reduced glare and 25° / 40° / 60° beam angle options in 2700 K / 3000 K / 4000 K suits decks, paths and landscape paving
Product parameters:
| Model | BE-WUL0112A | BE-WUL0112B | BE-WUL0112C |
| Materials | 316L Stainless Steel | 316L Stainless Steel | 316L Stainless Steel |
| Power | 1 W | 1 W | 1 W |
| Lumen | 120 lm | 120 lm | 120 lm |
| Beam Angle | 25° / 40° / 60° | 25° / 40° / 60° | 25° / 40° / 60° |
| Voltage | 12/24 V DC (built-in driver) | 12/24 V DC (built-in driver) | 12/24 V DC (built-in driver) |
| Color Temperature | 2700 K / 3000 K / 4000 K | 2700 K / 3000 K / 4000 K | 2700 K / 3000 K / 4000 K |
| Cut-out | D30 | D30 | D30 |
| Recessed Depth | 55 mm | 55 mm | 55 mm |
| Finish | Black / Stainless Steel color, Matt Black / Matt Silver optional | Black / Stainless Steel color, Matt Black / Matt Silver optional | Black / Stainless Steel color, Matt Black / Matt Silver optional |
| IP Rating | IP67 | IP67 | IP67 |
| Warranty | 3 Years | 3 Years | 3 Years |
| MOQ | 100 | 100 | 100 |
See our inground light waterproof specification guide for detailed material, IP and beam selection criteria.
Face Versions:

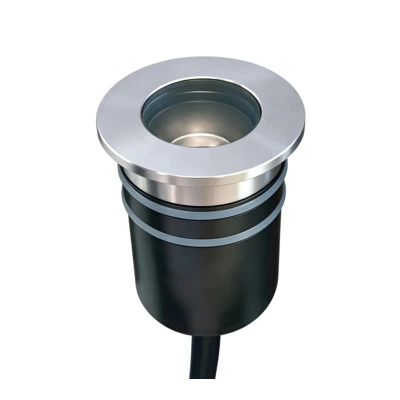

Version A (BE-WUL0112A): standard face - a stainless steel rim with open glass revealing the inner LED for the full light output (shown in the product image above).

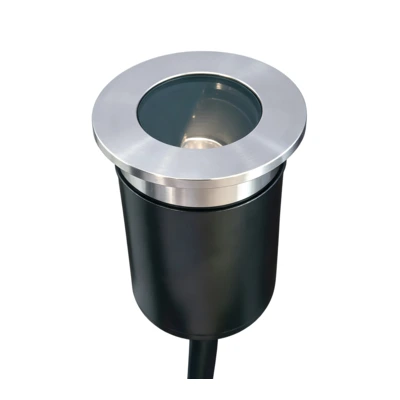

Version B (BE-WUL0112B): semi-shaded glass face - the glass shades part of the LED for a softer, lower-glare glow.

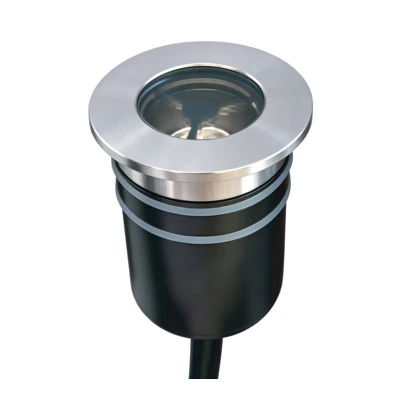

Version C (BE-WUL0112C): trident face - a trident-shaped center structure over the LED creates a distinctive light pattern on the ground.
Product Size:
Beam Angle & Illuminance Diagram:
Optional Finish:

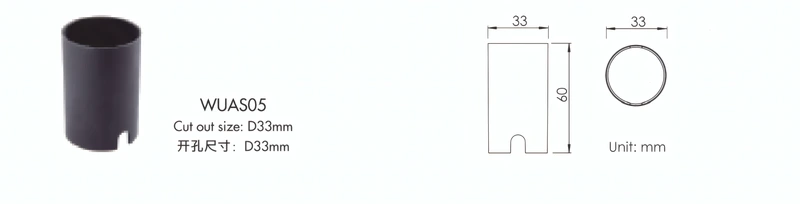

Optional Accessories:
