BE-DUL0801 In-ground Light 8 W IP67 316 Stainless Steel
BE-DUL0801 is the broader-coverage member of this 316 Stainless Steel driveover pair, delivering 750 lm from an 8 W IP67 LED in BE-DUL0801A round and BE-DUL0801B square face cover versions. Beams run 25° / 40° / 60° and color temperature options cover 2700 K / 3000 K / 4000 K. The electrical side is 12/24 V DC, delivered by the built-in DC driver with its 2 m power cable. Geometry is a D70 cut-out for deck mounting, 120 mm of recessed depth and a Ø79 × 114 mm housing. Driveway edges, entrances, parking bays and vehicle routes fit the large driveover body in satin 316 Stainless Steel. Optional items comprise JB2001 / JB3001 junction boxes, a WUAS02 mounting sleeve and DUAG02F / DUAG02W glass lenses. MOQ is 100 pieces, warranty 3 years.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Description:
BE-DUL0801 spreads its light wider on purpose: the broad-coverage member of this 316 Stainless Steel driveover pair, washing driveway edges, entrances and parking bays in one even plane where a narrower beam would leave gaps. The 60 degree optics favor coverage over punch, so walls, gates and paving joints all read clearly at night without hot spots around the luminaire. And because the corrosion resistance is built into the 316 grade itself, de-icing salt and winter grit never get a foothold on the satin finish.
BE-DUL0801 shares its Ø79 × 114 mm 316 Stainless Steel driveover housing with BE-DUL0901: same 12/24 V DC built-in driver, same D70 deck cut-out. This 8 W version spreads 750 lm across 25° / 40° / 60° beams, washing driveway surfaces and entrance zones in broad light where a narrow pool is not the goal. For the 9 W twin holding 1050 lm in 20° / 30° / 38° beams, see the BE-DUL0901 9 W stainless steel driveover in-ground light. For the aluminium walkover counterpart of the same 8 W class for vehicle-free areas, see the BE-WUL0801 8 W aluminium walkover in-ground light.
Features:
1. 750 lm leaves the 8 W LED through 25° / 40° / 60° beams.
2. The electrical side is 12/24 V DC, delivered by the built-in DC driver with its 2 m cable.
3. The body measures Ø79 × 114 mm and seats into a D70 cut-out at 120 mm of depth.
4. IP67 sealing on the satin 316 Stainless Steel construction holds up in outdoor vehicle areas.
Product parameters:
| Model | BE-DUL0801A | BE-DUL0801B |
| Face Version | Round face cover / Square face cover | Round face cover / Square face cover |
| Materials | 316 Stainless Steel | 316 Stainless Steel |
| Power | 8 W | 8 W |
| Luminous Flux | 750 lm | 750 lm |
| Beam Angle | 25° / 40° / 60° | 25° / 40° / 60° |
| Input Voltage | 12/24 V DC (built-in driver) | 12/24 V DC (built-in driver) |
| Color Temperature | 2700 K / 3000 K / 4000 K | 2700 K / 3000 K / 4000 K |
| Cut-out | D70 | D70 |
| Recessed Depth | 120 mm | 120 mm |
| Size | Ø79 × 114 mm | Ø79 × 114 mm |
| Finish | Satin 316 Stainless Steel | Satin 316 Stainless Steel |
| IP Rating | IP67 | IP67 |
| Warranty | 3 Years | 3 Years |
| MOQ | 100 | 100 |
See our inground light waterproof specification guide for detailed material, IP and beam selection criteria.
Face Versions:
Version A (BE-DUL0801A): round face cover, the circle choice for curved access routes and soft landscape edges (shown in the second image below).
Version B (BE-DUL0801B): square face cover, the square choice that aligns with sawn stone, paver fields and deck lines (shown in the product image above).

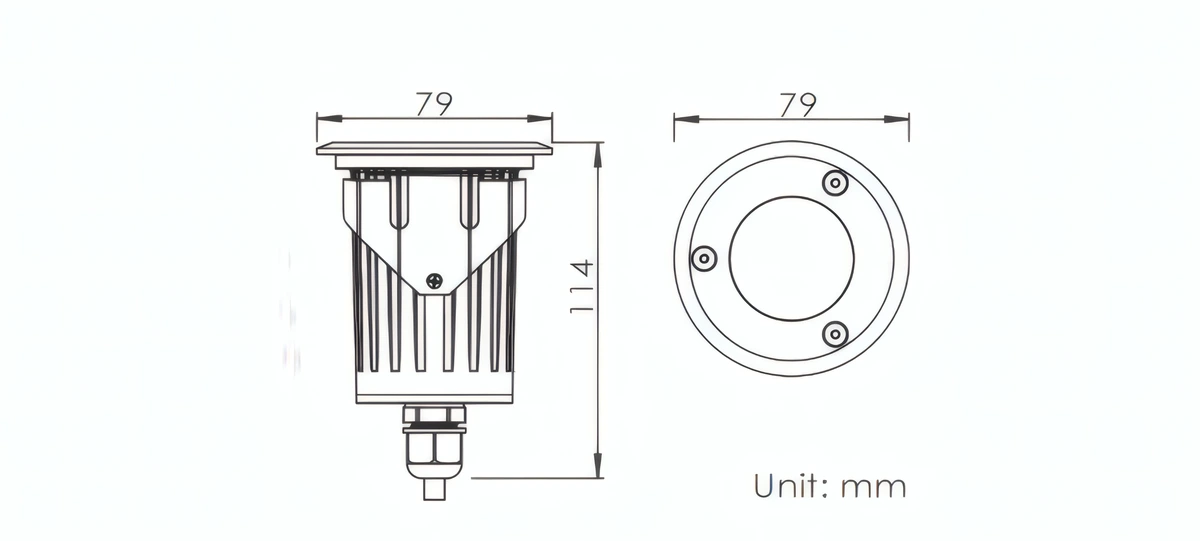

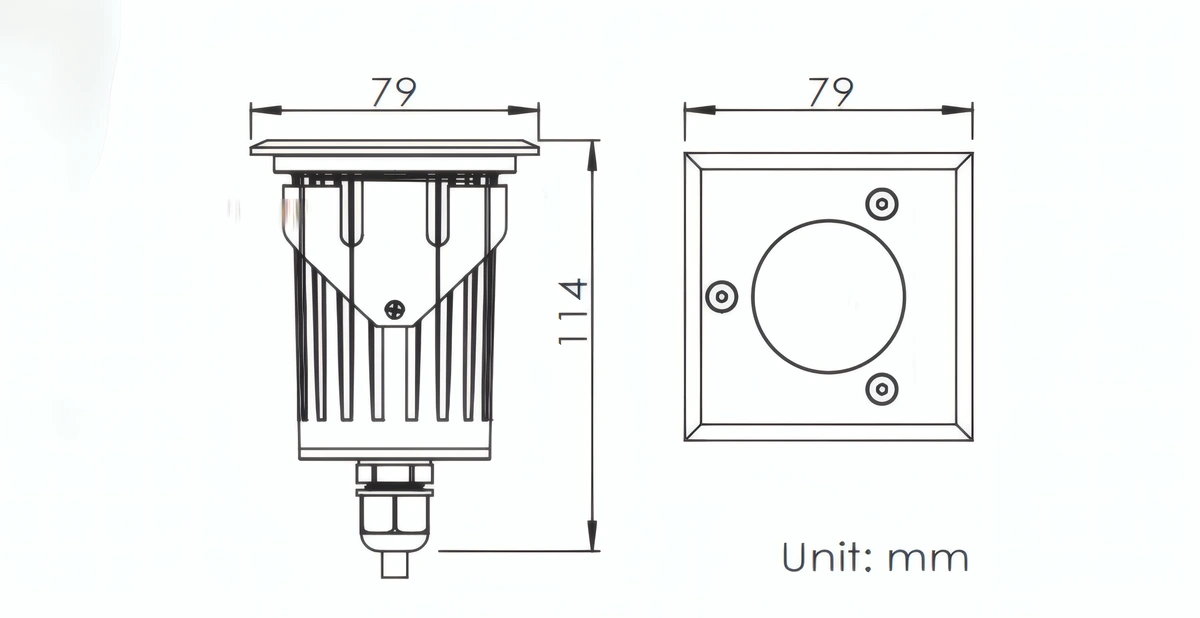

Product Size:

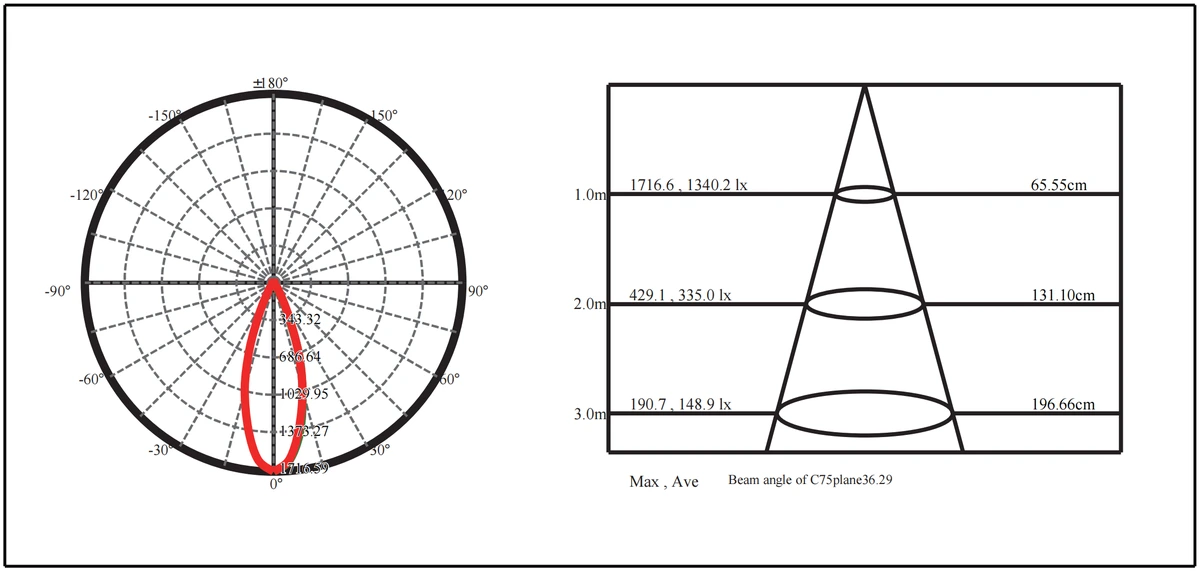

Beam Angle & Illuminance Diagram:
Optional Optical Accessories:

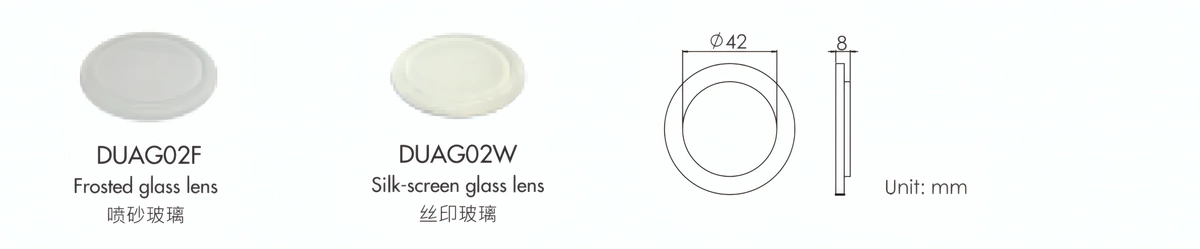

DUAG02F frosted glass lens and DUAG02W silk-screen glass lens (Ø42 × 8 mm) are available as optional optical accessories for glare control and beam shaping.

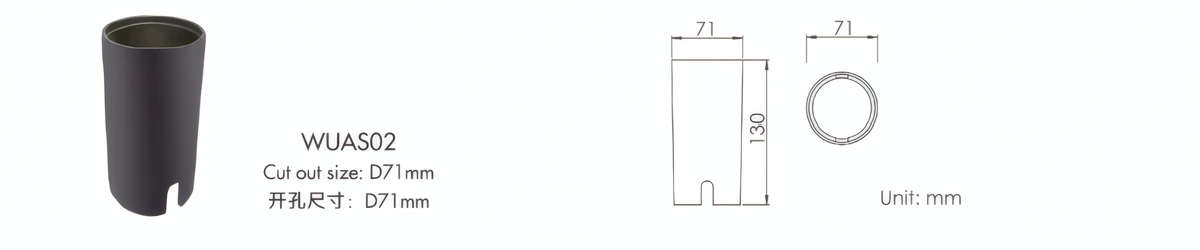

Optional Accessories:
