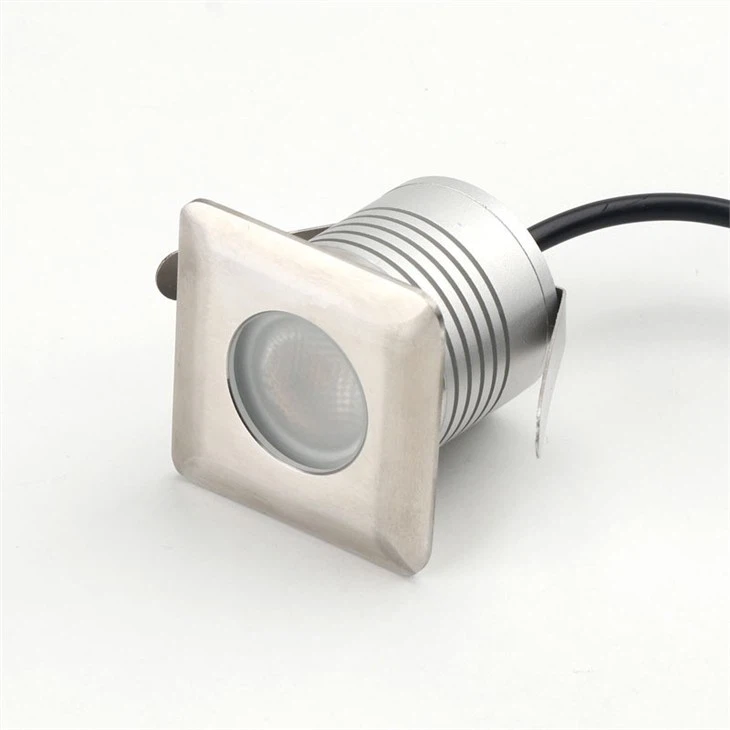

LED IP67 Square Inground Recessed Light DAY05OIL0025EU

Product Description ：

LED IP67 Square Half Moon Recessed Light has a long history of use. It not only has the function of lighting but also can visually enhance the beauty of the garden. It is a practical and durable lamp. It is usually a lamp that can be installed outdoors, and the lamp body itself is close to the wall or the ground. It is usually used in the doorway and courtyard lamp areas. Its main function is decoration, so many people like to install it in the corridor or stairs, which not only facilitates the lighting at night but also makes your home more elegant.



The main materials of LED IP67 Square Half Moon Recessed Light are 304 stainless steel and aluminum, so the overall strength is very high, very wear-resistant, and also has good water resistance. Even on rainy days, it can still work well. At the same time, its beam angle is about 45 degrees, so when it is projected on the ground or wall, it can create a unique sense of atmosphere and three-dimensional. In addition, its connecting nuts and connectors are also waterproof, which further improves safety.



Details

Model	DAY05OIL0025EU
Materials	304 Stainless steel+aluminum
Power	3W
LED Chip	CREE-XBD LED
Lumens	220LM(3W)
CRI	>80Ra
Beam angle	45°
Voltage	DC12-24V
Color	3000K, 4000K, 6000K
Others	Red, Green, Blue, 2700K((customized))
Size	Ø45XH50mm, Opening:Ø40mm
IP Rate	IP67
Warranty	3 Years
Applications	Plank road, terrace, steps, aisle, courtyard, hotel, KTV, etc



304 stainless steel cover, structural waterproof IP67



Lighting effect：



Features：

1.CREE-XBD

2.Lens

3.Steel cover

4.Steel shrapnel

5.Nut

6.Lamp body

7.Wire

8.Connector



INSTALLATION：

Wiring method 1



Wiring method 2





Wiring method 3

The diversion and extension wire is 0.3 square wire.

1W lamp, it is recommended to connect up to 20 lamps per group

3W lamp, each group is recommended to connect up to 8 lamps per group



Installation method 1: direct opening installation



Installation method 2: Installation with embedded parts
