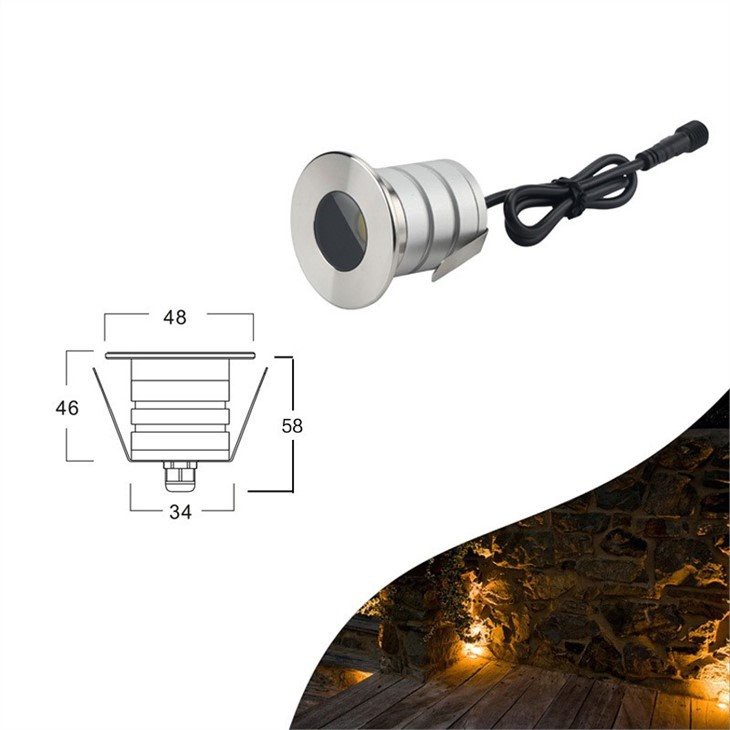

LED COB Outdoor In-ground Half Moon Recessed Light DC12~24V DAY04OIL0011EU

Product introduction：

Model	DAY04OIL0011EU
Materials	Face ring 304 stainless steel, radiator 6063 aluminium
Power	3W
LED Chip	COB LED
Lumens	290Lm
CRI	>80Ra
Beam angle	90°
Voltage	DC12-24V
Color	3000K,4000K,6000K
Others	Red,Green,Blue
Size	Ø48XH46mm
IP Rate	IP67
Warranty	3 Years

Detail display：



1. Waterproof DC plug

2. 0.3 square copper core PVC wire

3. Waterproof nuts

4. Spring

5. Stainless steel face cover

6. Lamp body

7.

8. 10,000 insertion and removal cycles

9. 450 degree flame retardant grade

10. Pure copper core



INSTALLATION

Wiring method 1



Pre-wire laying (low-voltage end divided into positive and negative wiring)

1.Cut off the waterproof terminal of the lamp

2.Connect the lights in parallel to the pre-arranged main wire

3.After the main wire is connected to the constant voltage power supply/transformer, then connected to 110V/220V



Wiring method 2



1.Pre-wire laying (low-voltage end divided into positive and negative wiring)

2.Cut off the waterproof terminal of the lamp(Male end)

3. The extension wire is connected in parallel to the pre laid main wire

4. The male end of the waterproof terminal of the lamp is connected with the female end of the extension wire

5.After the main wire is connected to the constant voltage power supply/transformer, then connected to 110V/220V



Wiring method 3



The diversion and extension wire is 0.3 square wire.

1W lamp, it is recommended to connect up to 20 lamps per group

3W lamp, each group is recommended to connect up to 8 lamps per group


 Installation method 1: direct opening installation

Wooden board, gypsum board, marble or already done wall, etc., you can directly open the hole to install, as follows



Installation method 2: Installation with embedded parts

Installed with pre-buried parts, generally applied to concrete, lawn, etc. to facilitate fixed lights, as follows：
