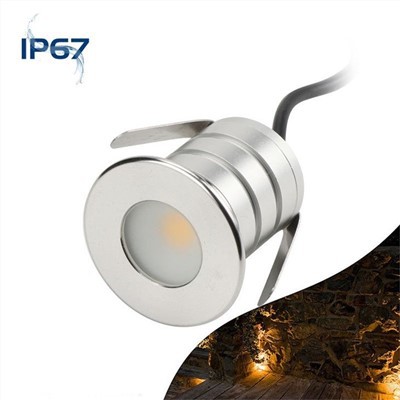

LED Mini Half Moon Outdoor In-ground Recessed Light IP67 DAY04OIL0021EU

Product introduction：

Model	DAY04OIL0021EU
Materials	304 stainless steel, aluminum
Power	1W
LED Chip	CREE-XBD LED
Lumens	95Lm
CRI	>80Ra
Beam angle	15°, 30°
Voltage	DC12-24V
Color	3000K,4000K,6000K
Others	Red,Green,Blue
Size	Ø24XH35.5mm
IP Rate	IP67
Warranty	3 Years



Brushed translucent mirror design

Anti-glare toughened glass, resistant to 500KG pressure, even light, anti-glare



1. 10,000 insertion and removal cycles

2. 450 degree flame retardant grade

3. Pure copper core



Detail display：



1. Tempered glass

2. Original US CREE brand LEDs

3. Optical lens made of PMM (93% light transmission)

4. 304 stainless steel face ring

5. Theme radiators

6. Waterproof nuts

7. International high temperature resistant wire

8. Waterproof terminal blocks



INSTALLATION

Wiring method 1



Pre-wire laying (low-voltage end divided into positive and negative wiring)

1.Cut off the waterproof terminal of the lamp

2.Connect the lights in parallel to the pre-arranged main wire

3.After the main wire is connected to the constant voltage power supply/transformer, then connected to 110V/220V



Wiring method 2



1.Pre-wire laying (low-voltage end divided into positive and negative wiring)

2.Cut off the waterproof terminal of the lamp(Male end)

3. The extension wire is connected in parallel to the pre laid main wire

4. The male end of the waterproof terminal of the lamp is connected with the female end of the extension wire

5.After the main wire is connected to the constant voltage power supply/transformer, then connected to 110V/220V



Wiring method 3



The diversion and extension wire is 0.3 square wire.

1W lamp, it is recommended to connect up to 20 lamps per group

3W lamp, each group is recommended to connect up to 8 lamps per group



Installation method 1: direct opening installation

Wooden board, gypsum board, marble or already done wall, etc., you can directly open the hole to install, as follows





Installation method 2: Installation with embedded parts

Installed with pre-buried parts, generally applied to concrete, lawn, etc. to facilitate fixed lights, as follows：
