LED 288W Light Landscape Spot Light High Power Outdoor Spotlight IP65 WAJTS-176-F72

Description

This double-row outdoor spotlight uses 72 high brightness lamp beads with an effective power of 288 watts to meet the nighttime lighting needs of large buildings, including tall buildings, bridges, sports fields, etc. The light body is equipped with a large area of heat dissipation module, which can effectively dissipate the heat generated during work to meet the requirements of long outdoor use.



Features:

● Minimalist shape design, simple and generous, suitable for outdoor key area lighting and Flood lighting of outdoor high-rise buildings, bridges, etc.



●Integrated heat dissipation lamps, practical ambient temperature range -20° ~ 60°, electrical safety class III. Electrical safety class III.

●The lamp body is made of 6063 extruded aluminum profile with thermal conductivity of 210W/M*K and excellent heat dissipation effect.

Aluminum alloy die-casting end cap, stainless steel screws, and aging-resistant silicone seal ring.

●High luminous efficiency PMMA optical lens, precise angle;

●Waterproof breathing valve installed in the lamp body to balance the air pressure of the lamp cavity under different temperatures;

● High strength ultra-white tempered glass, 92% light transmission rate.

● A graduated dial facilitates the precise alignment of the luminaires. It ensures quick, easy setup, especially with luminaires lined up in rows, which can be adjusted to the exact same tilt angle. The luminaire's 180° adjustable tilt allows precise adjustment for optimal beam alignment, and the light will shine exactly where you need it.



Product parameters：



Model	WAJTS-176-F72
Materials	Aluminium+PMMA+Tempered Glass
Power	288W
Lumen	23040lm
CRI	＞80
Voltage	DC 24VDC24V/AC100-277V
Beam Angle	4° /8° /25° /36° /60°
Color Temperature	2200K/2700K/3000K/4000K
Finish	Black/White/Gray
Size	L540*W376*H85mm
IP Rate	IP65
Warranty	2 Years



Beam angle & Light distribution curve:





Product Size:





Product Structure:





①5MM thick ultra-white tempered glass, light transmittance is more than 93%, strong self-cleaning.

② Imported micro-structure light distribution parts (three-time light distribution, applied during specific effect projection), optional diffused light, elliptical light, antiglare, mixed light, soft light and so on.

③The metal fixed plate or anti-glare grille can choose a variety of light control modes according to the application scene of the lamp.

④Split type high luminous efficiency large lens (secondary light distribution), accurate angle.

⑤Imported high-power LED lamp chips (CREE), reasonable selection according to the angle of the lamp package mode (one-time light distribution).

⑥Super thermally conductive aluminum substrate with a thermal conductivity of 2.0.

⑦6063 aluminum radiator, 304 stainless steel screw, The high-precision lamp body is composed of aluminum alloy end caps, and the surface is treated with fluorocarbon spraying. Pointing precision stainless steel dial.

⑧Pointing precision stainless steel dial.

⑨Taiwan MEAN WELL high performance power supply.

⑩304brushedstainlesssteelbracket.

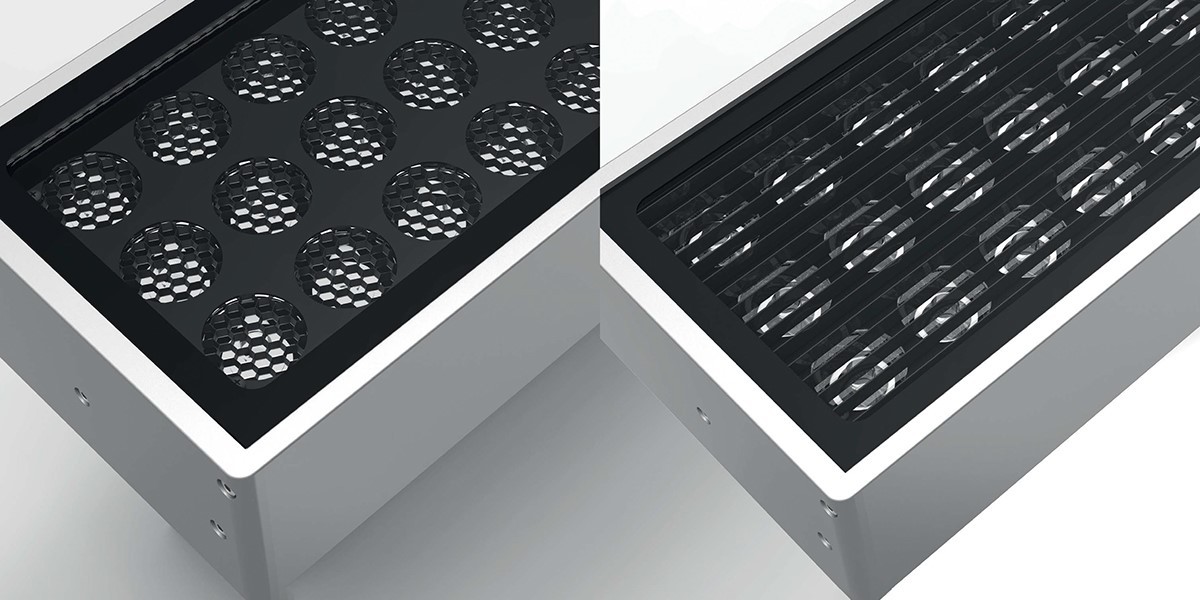

Optional Accessories:





Built-inanti-glaregrill1(optional)

The honeycomb anti-glare grid used in the use of the round spot symmetrical angle projector can effectively avoid glare when illuminating at a low position.



Built-inanti-glaregrille2(optional)

The strip-shaped anti-glare grid used when projecting light at an elliptical spot angle does not affect the light effect of a large angle, and has control over the glare of a small angle.
