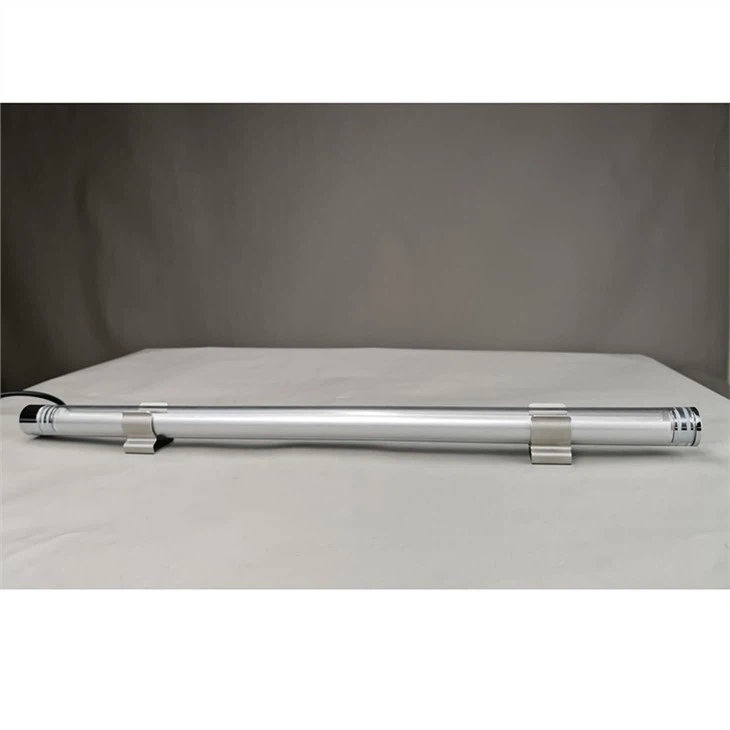

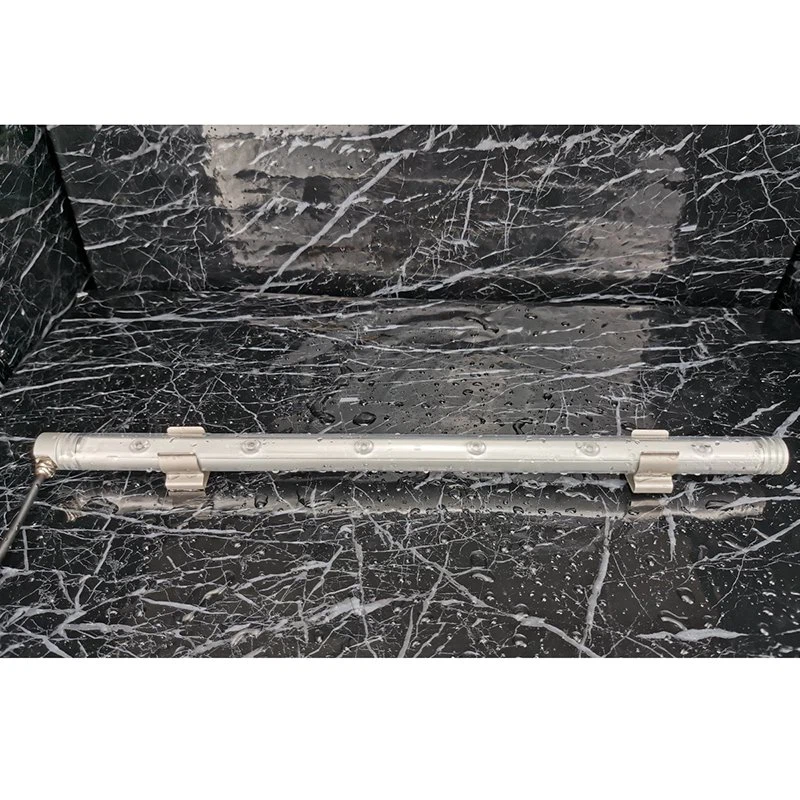

IP68 LED Underwater Linear Light For Pool Lighting Underwater Wall Washer PUYSL-T8-1200

Description

Unlike other linear lighting products, this is a linear light that can be used underwater. The protection level of IP68 and IK09 ensures that it can meet the lighting needs of underwater environments such as swimming pools and fountains. At the same time, DC24V power supply is used, so there is no need to worry about safety issues. The lamp is equipped with a lens, which can bring perfect wall washing light effect whether it is used underwater or in other outdoor spaces.





Features:

1. 24V low voltage, safe for underwater use

2. IP68 IK09 protection

3. Copper ends+PC tube with Aluminium housing inside

4. Available in 500mm, 600mm and 1200mm lengths, supporting customization

5. 3 years Warranty, CE ROHS certification



Product parameters：



Model	PUYSL-T8-1200
Materials	Copper+Aluminium+PC
Power	5W
Lumen	430lm/800lm/1800lm
CRI	>80Ra
Voltage	DC 24V
Color Temperature	2700K/3000K/4000K/6000K
Finish	White
Size	D25*L500/L600/1200mm
IP Rate	IP68
IK Rate	IK09
Warranty	2 Years







Product Details：









1. PC tube with Aluminium housing Inside

2. Copper end with good heat dissipation and anti-corrosion

3. Anti-corrosion and anti-UV PC tube cover







Product Luminous Efficiency:



0.6M 3000K 45°



1.2M 3000K 45°



Product Size:

3 available size:



D25*L500mm

D25*L600mm

D25*L1200mm



Installation Method:



There are two brackets with 2 installation method.



Method 1:







①LED wall washer fixed on the wall with bracket 1

②LED wall washer fixed on the ground with bracket 1









①Downlight fixed on the ceiling with bracket 2

②Underwater linear light fixed on the wall with bracket 2
