BE-STL0111 Step Light 1 W IP67 Aluminium

BE-STL0111 Step Light 1 W IP67 Aluminium

The BE-STL0111 is a 1 W aluminium step light for flush mounting in stairs, decks and walkways. A single LED delivers 120 lm through an asymmetric beam at 2700 K / 3000 K / 4000 K, sealed to IP67 in a matt silver anodized body. It runs on 350 mA, 3-4 V DC through a 1 m power cable, fits a D40 cut-out at 40 mm recessed depth, and measures 45 x 45 mm on the face at 26 mm height. Four face versions cover round or square faceplates with round or square openings. Sourced from China with full specifications and pricing available on request.

Send Inquiry
  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service
Product Introduction

Description:

The BE-STL0111 (versions A / B / C / D) is an aluminium LED step light built for flush mounting in stairs, decks and pathways. A 1 W LED delivers 120 lm with an asymmetric beam at 2700 K / 3000 K / 4000 K from a matt silver anodized body sealed to IP67. It runs on 350 mA, 3-4 V DC through a 1 m power cable, fits a D40 cut-out at 40 mm recessed depth, and measures 45 × 45 mm on the face at 26 mm height. Four face versions cover round or square faceplates with round or square openings. Sourced from China as a specification-compliant commercial-grade step light.



Features:

1. Asymmetric beam from a sunken light source washes the step surface evenly and cuts upward glare

2. Four face versions cover round or square faceplates with round or square openings to match the stair design

3. Matt silver anodized aluminium body with a D40 cut-out and 40 mm recessed depth for flush installation

4. 350 mA, 3-4 V DC drive with a 1 m power cable, sealed to IP67 for outdoor stair use



Product parameters:

Model BE-STL0111A BE-STL0111B BE-STL0111C BE-STL0111D
Face Version Round faceplate, round opening Round faceplate, square opening Square faceplate, round opening Square faceplate, square opening
Materials Aluminium Aluminium Aluminium Aluminium
Power 1 W 1 W 1 W 1 W
Lumen 120 lm 120 lm 120 lm 120 lm
Beam Angle Asymmetric Asymmetric Asymmetric Asymmetric
Voltage 350 mA, 3-4 V DC 350 mA, 3-4 V DC 350 mA, 3-4 V DC 350 mA, 3-4 V DC
Color Temperature 2700 K / 3000 K / 4000 K 2700 K / 3000 K / 4000 K 2700 K / 3000 K / 4000 K 2700 K / 3000 K / 4000 K
Cut-out D40 D40 D40 D40
Recessed Depth 40 mm 40 mm 40 mm 40 mm
Finish Matt Silver Anodized Matt Silver Anodized Matt Silver Anodized Matt Silver Anodized
Size 45 × 45 × 26 mm 45 × 45 × 26 mm 45 × 45 × 26 mm 45 × 45 × 26 mm
IP Rating IP67 IP67 IP67 IP67
Warranty 3 Years 3 Years 3 Years 3 Years
MOQ 100 100 100 100



Face Versions:

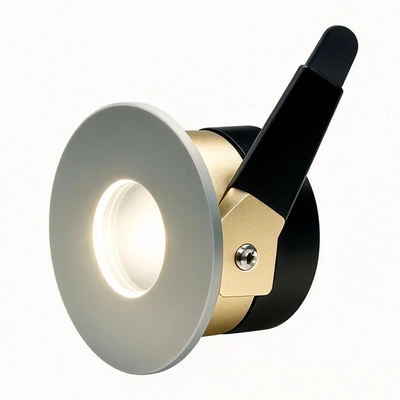

Version A (BE-STL0111A): round faceplate with round opening

be-stl0111-step-light-ip67-1w-aluminium-face-a

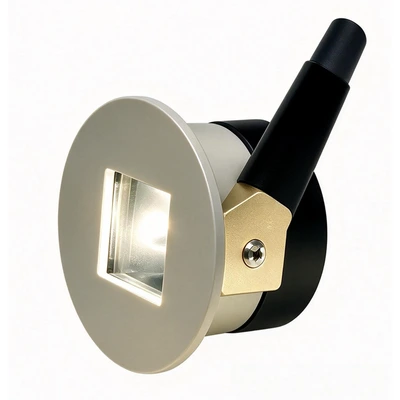

Version B (BE-STL0111B): round faceplate with square opening.

be-stl0111-step-light-ip67-1w-aluminium-face-b

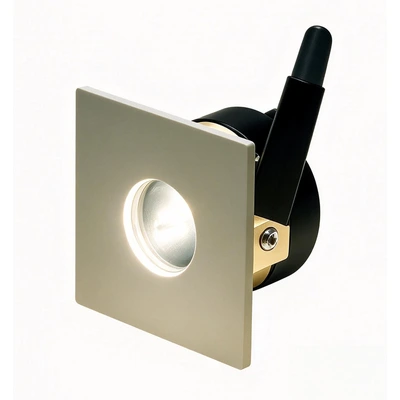

Version C (BE-STL0111C): square faceplate with round opening.

be-stl0111-step-light-ip67-1w-aluminium-face-c

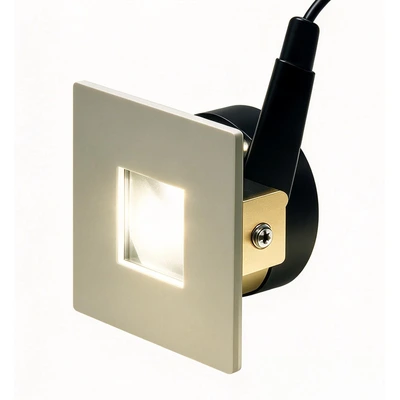

Version D (BE-STL0111D): square faceplate with square opening.

be-stl0111-step-light-ip67-1w-aluminium-face-d

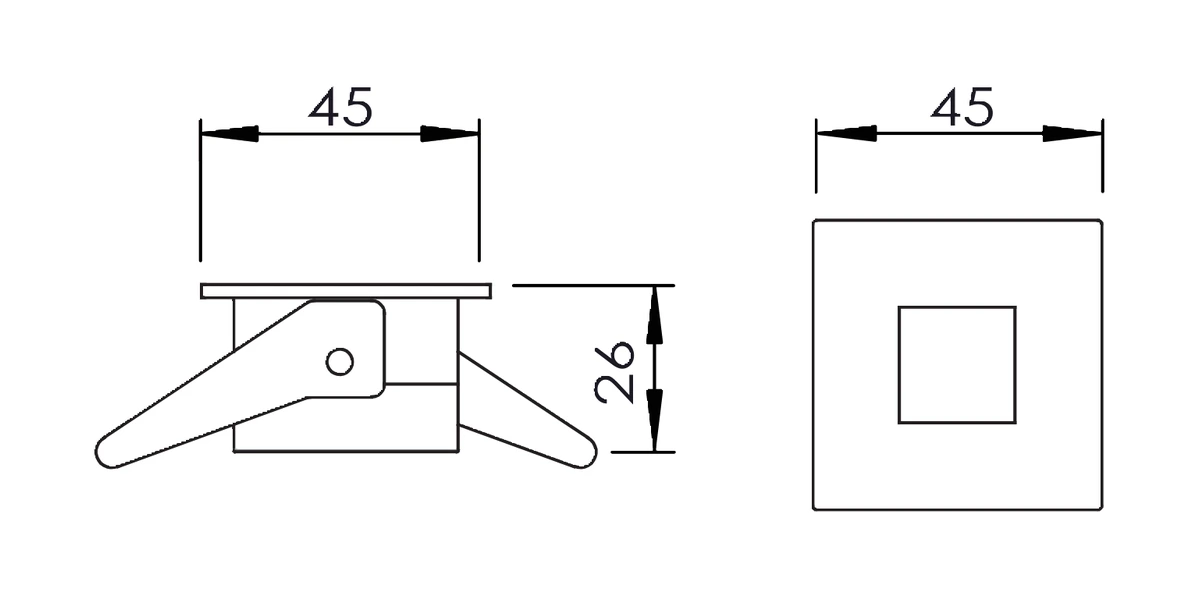

Product Size:

be-stl0111-step-light-ip67-1w-aluminium-dimension-a

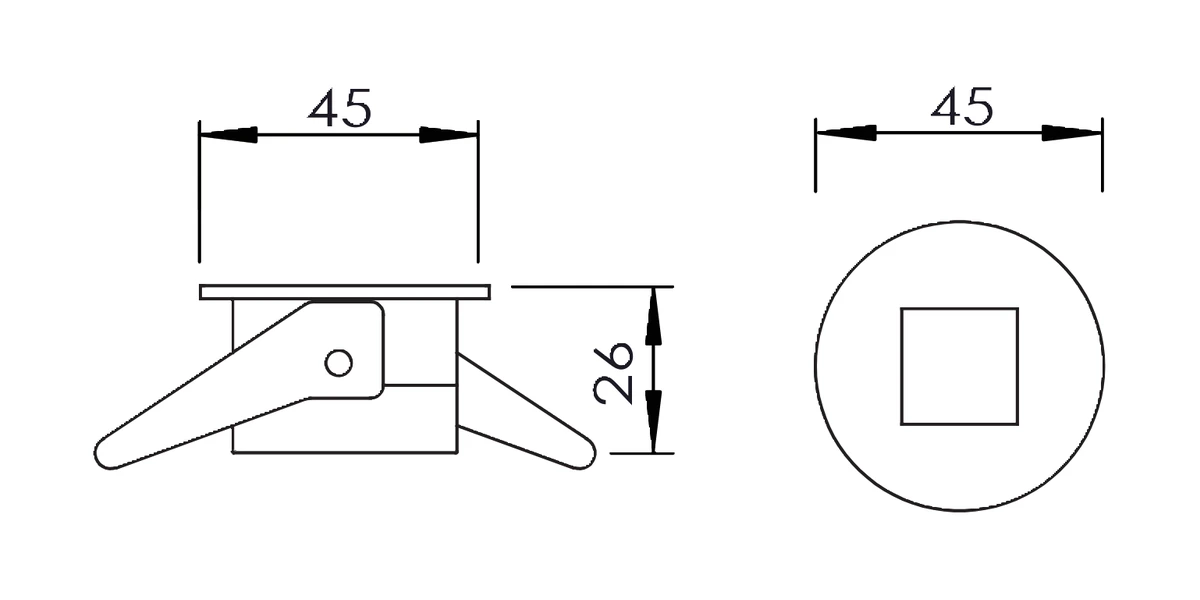

be-stl0111-step-light-ip67-1w-aluminium-dimension-b

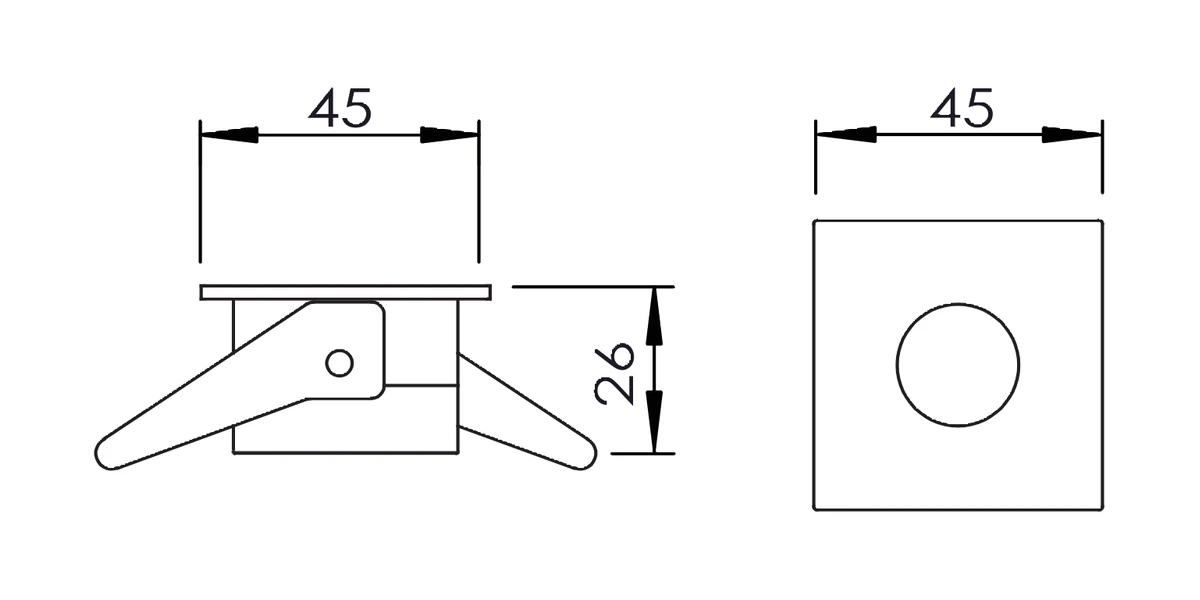

be-stl0111-step-light-ip67-1w-aluminium-dimension-c

be-stl0111-step-light-ip67-1w-aluminium-dimension-d
