BE-STL0312 Step Light 2 W IP65 Aluminium
The BE-STL0312 is a 2 W aluminium step light for flush mounting in stairs, decks and walkways. A single LED delivers 200 lm through an asymmetric beam at 2700 K / 3000 K / 4000 K, sealed to IP65 in a matt silver anodized body. It runs on 12/24 V DC through a built-in driver with a 1 m power cable, fits a D52 cut-out at 70 mm recessed depth, and measures 65 x 65 mm on the face at 59 mm height. A WUAS01 mounting sleeve and JB2001 / JB3001 IP68 junction boxes are available as optional accessories. Orders start at 100 with a 3-year warranty. Sourced from China with full specifications and pricing available on request.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Description:
The BE-STL0312 (versions A / B) is an aluminium LED step light built for flush mounting in stairs, decks and pathways. A 2 W LED delivers 200 lm with an asymmetric beam at 2700 K / 3000 K / 4000 K from a matt silver anodized body sealed to IP65. It runs on 12/24 V DC through a built-in driver with a 1 m power cable, fits a D52 cut-out at 70 mm recessed depth, and measures 65 × 65 mm on the face at 59 mm height. Two face versions cover a round or square faceplate, with matt black available as an optional finish. Sourced from China as a specification-compliant commercial-grade step light.
Features:
1. Asymmetric beam from a sunken light source washes the step surface evenly and cuts upward glare
2. Round or square faceplate versions match different stair and deck designs
3. Built-in 12/24 V DC driver with a 1 m power cable removes extra on-site wiring
4. Matt silver anodized aluminium body with a D52 cut-out and 70 mm recessed depth for flush installation
Product parameters:
| Model | BE-STL0312A | BE-STL0312B |
| Face Version | Round faceplate | Square faceplate |
| Materials | Aluminium | Aluminium |
| Power | 2 W | 2 W |
| Lumen | 200 lm | 200 lm |
| Beam Angle | Asymmetric | Asymmetric |
| Voltage | 12/24 V DC (built-in driver) | 12/24 V DC (built-in driver) |
| Color Temperature | 2700 K / 3000 K / 4000 K | 2700 K / 3000 K / 4000 K |
| Cut-out | D52 | D52 |
| Recessed Depth | 70 mm | 70 mm |
| Finish | Matt Silver Anodized, Matt Black optional | Matt Silver Anodized, Matt Black optional |
| Size | 65 × 65 × 59 mm | 65 × 65 × 59 mm |
| IP Rating | IP65 | IP65 |
| Warranty | 3 Years | 3 Years |
| MOQ | 100 | 100 |
Face Versions:

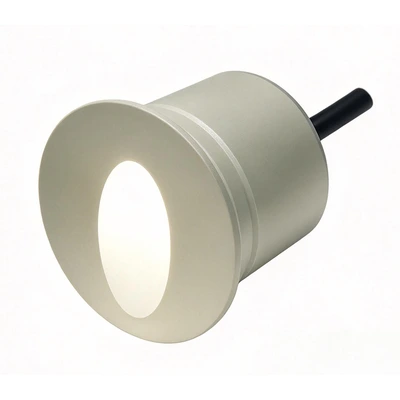

Version A (BE-STL0312A): round faceplate

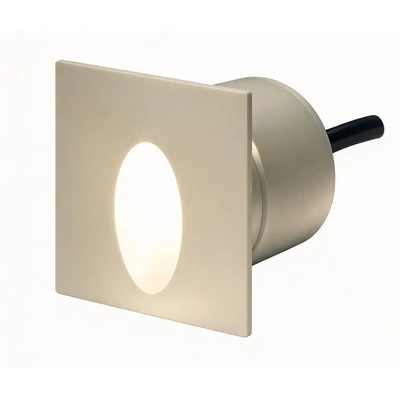

Version B (BE-STL0312B): square faceplate.

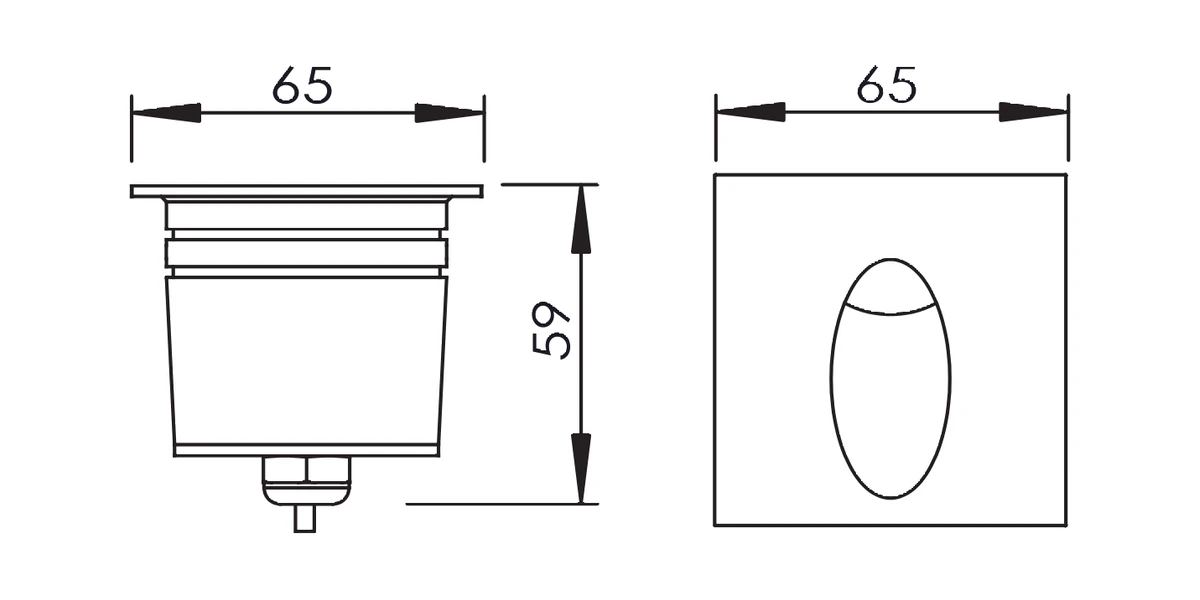

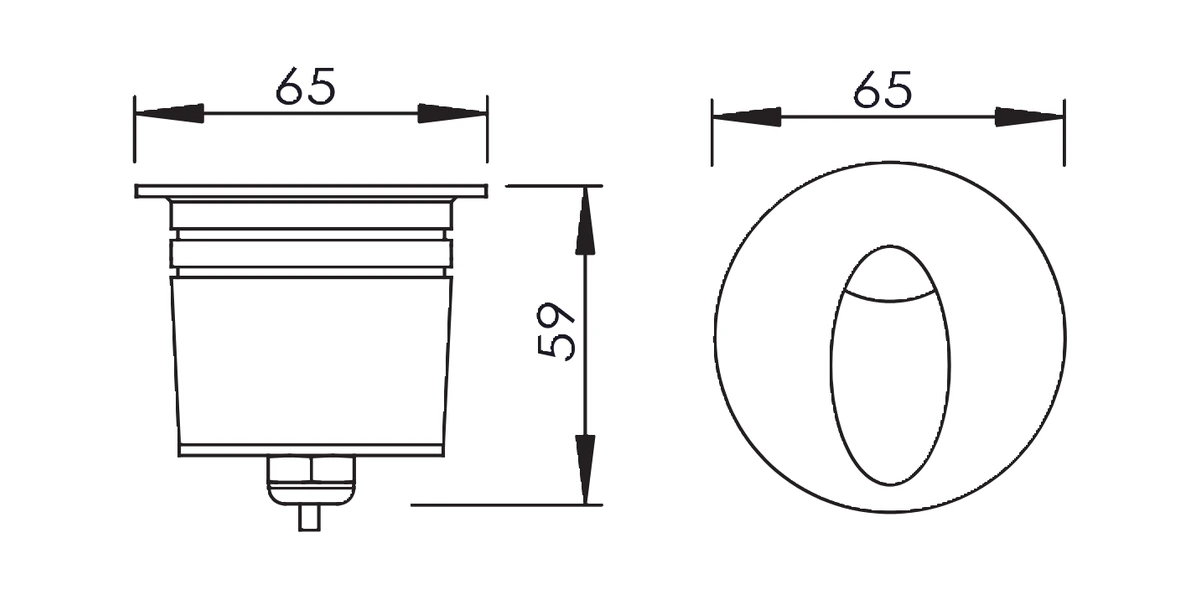

Product Size:
Optional Finish:

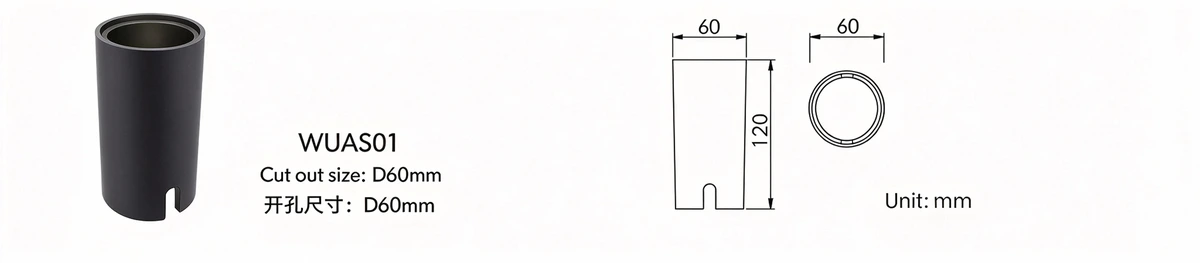

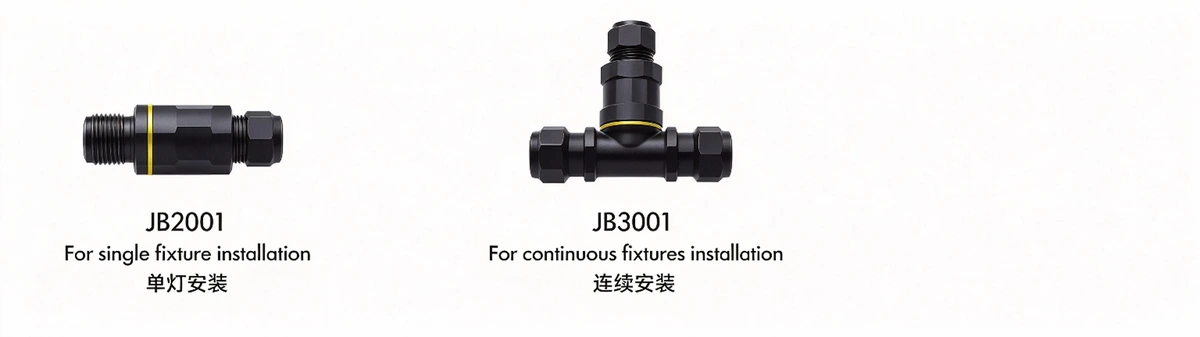

Optional Accessories:
Hot Tags: LED step light, aluminium step light, 2 watt step light, IP65 step light, stair light, deck light, recessed step light, asymmetric beam step light, 12V 24V step light, outdoor step lighting, China step light supplier
You Might Also Like
-
BL-LSL116R Surface Mounted Downward Wall Light 6 W I...
-

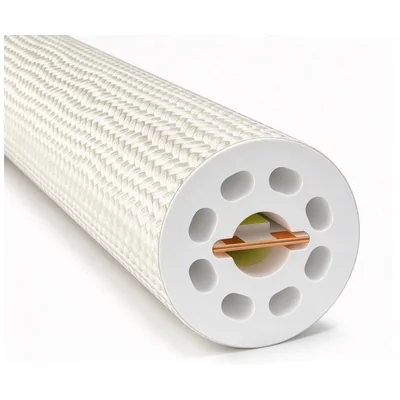

22 mm Round 360-Degree LED Neon Flex GM-D2835Y-120-X...
-
GAS1502-600 Bollard Light 7 W IP65 Die-Cast Aluminum
-

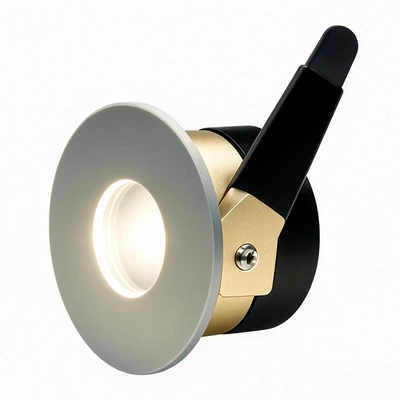

BE-STL0111 Step Light 1 W IP67 Aluminium
-

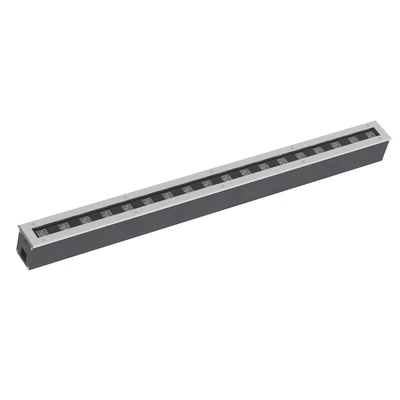

TL-DMD-D18F2 RGBW Linear In-ground Light 18-48 W IP67
-
