LX-SC-010A Underwater Linear Pool Light 24 W 316 SS IP68

LX-SC-010A Underwater Linear Pool Light 24 W 316 SS IP68

LX-SC-010A is the specification-grade linear underwater pool light: a 24 W LED bar with CREE, OSRAM or LUMILEDS sources at 135 to 150 lm/W, behind a clear PMMA cover on a 316 stainless steel and aluminum body. It runs 3000K, 4500K and 6000K white plus RGBW, under ON/OFF or DMX512 control, at over 80 Ra and 50,000 hours L70. Two lengths of D64 x 526 mm and D64 x 1026 mm share one DC 24 V system, sealed to IP68 and rated IK08. Ships from China.

Send Inquiry
  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service
Product Introduction

Description:

The LX-SC-010A is the specification-grade linear underwater light in this catalog. A 24 W LED bar with CREE, OSRAM or LUMILEDS sources sits behind a clear PMMA cover in a 316 stainless steel and aluminum body, running 3000K, 4500K, 6000K white or RGBW under ON/OFF or DMX512 control. Two lengths, D64 x 526 mm and D64 x 1026 mm, share one DC 24 V system, with IK08 impact protection and IP68 sealing for permanent submersion. Wall-mounted alternatives in the same catalog are the 316SS-0602 12 W Linear and the 316SS-0302 6 W.

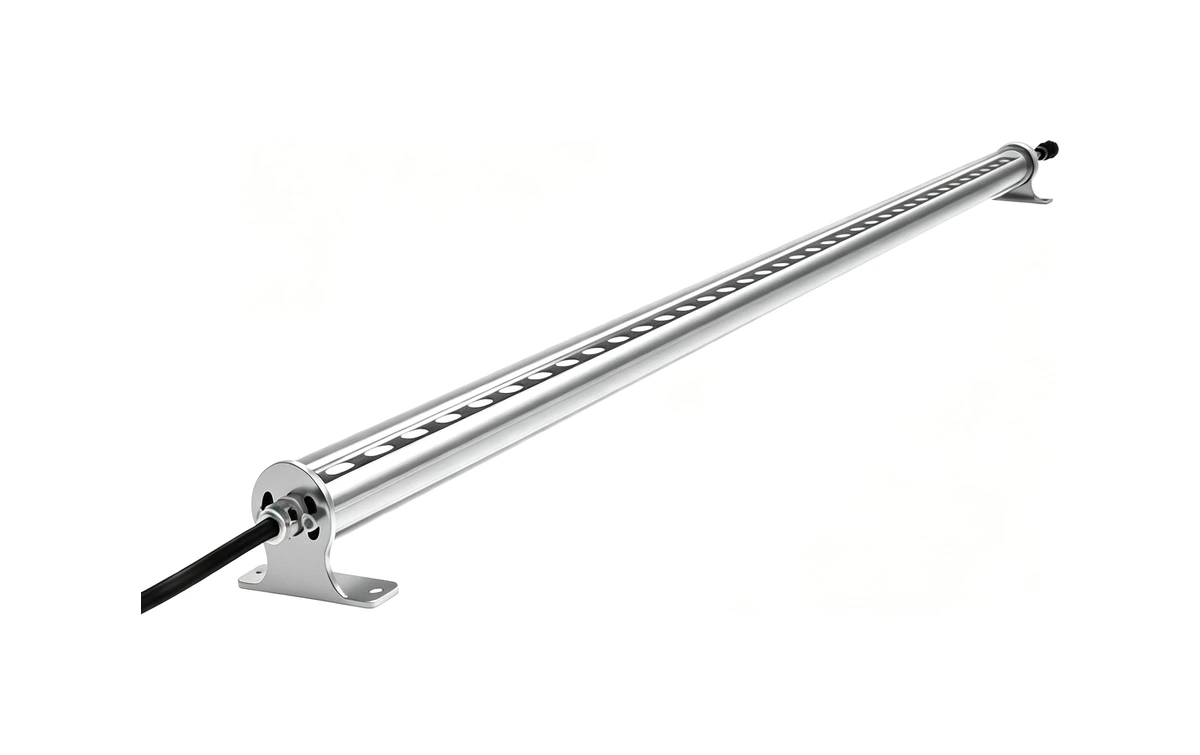

lx-sc-010a-underwater-linear-pool-light-ip68-24w-main-large



Features:



1. 24 W bar with CREE, OSRAM or LUMILEDS sources at 135-150 lm/W.

2. 316 stainless steel body, aluminum heat path, clear PMMA cover.

3. 3000K / 4500K / 6000K white plus RGBW.

4. ON/OFF or DMX512 control, over 80 Ra.

5. IK08 impact rating, IP68 sealing, 50,000 hrs L70.



Product parameters:



Model LX-SC-010A
Materials 316 Stainless Steel + Aluminum + Clear PMMA Cover
Power 24 W
LED Source CREE, OSRAM, LUMILEDS
CRI ≥80 Ra
Color Temperature 3000K / 4500K / 6000K / RGBW
Beam Angle 20° / 45° / 25x45°
Voltage DC 24 V
Control ON/OFF, DMX512
Dimension D64 x 526 mm / D64 x 1026 mm
Impact Protection IK08
IP Rating IP68
Lumen Maintenance 50,000 hrs L70 at 25°C

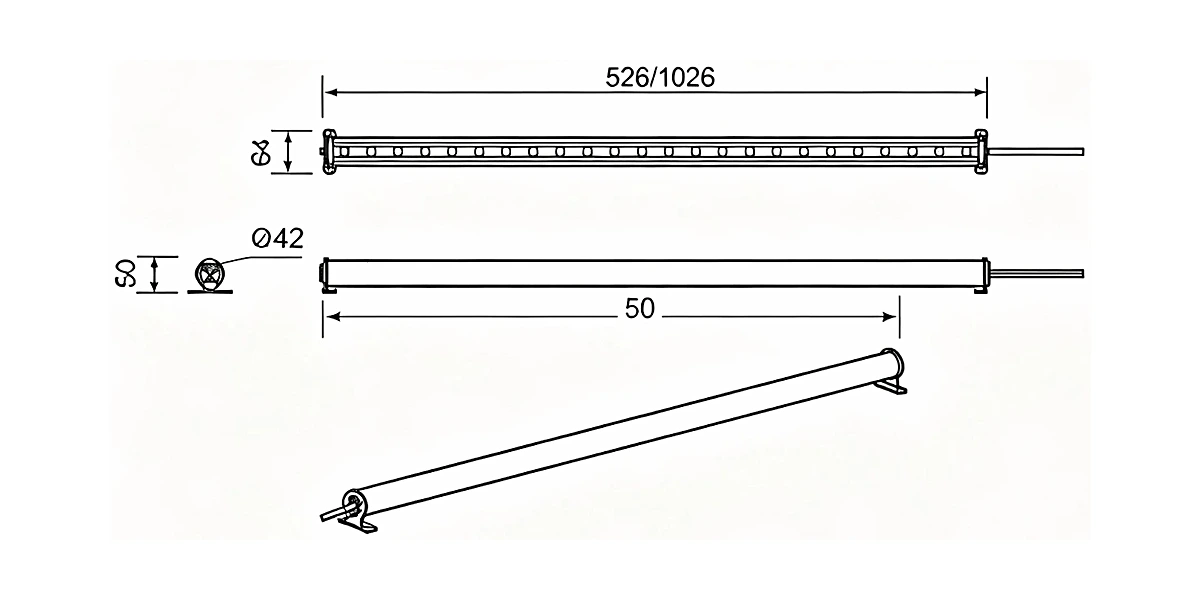

Product Size:

D64 x 526 mm / D64 x 1026 mm.

lx-sc-010a-underwater-linear-pool-light-ip68-24w-dimension-drawing



Hot Tags: ss316 underwater linear light, underwater linear light, dmx512 pool light, rgbw underwater light, ip68 linear pool light, 316 stainless steel pool light, dc24v underwater light, cree pool light, swimming pool wall light, linear water feature light, wholesale underwater light, bulk underwater light
