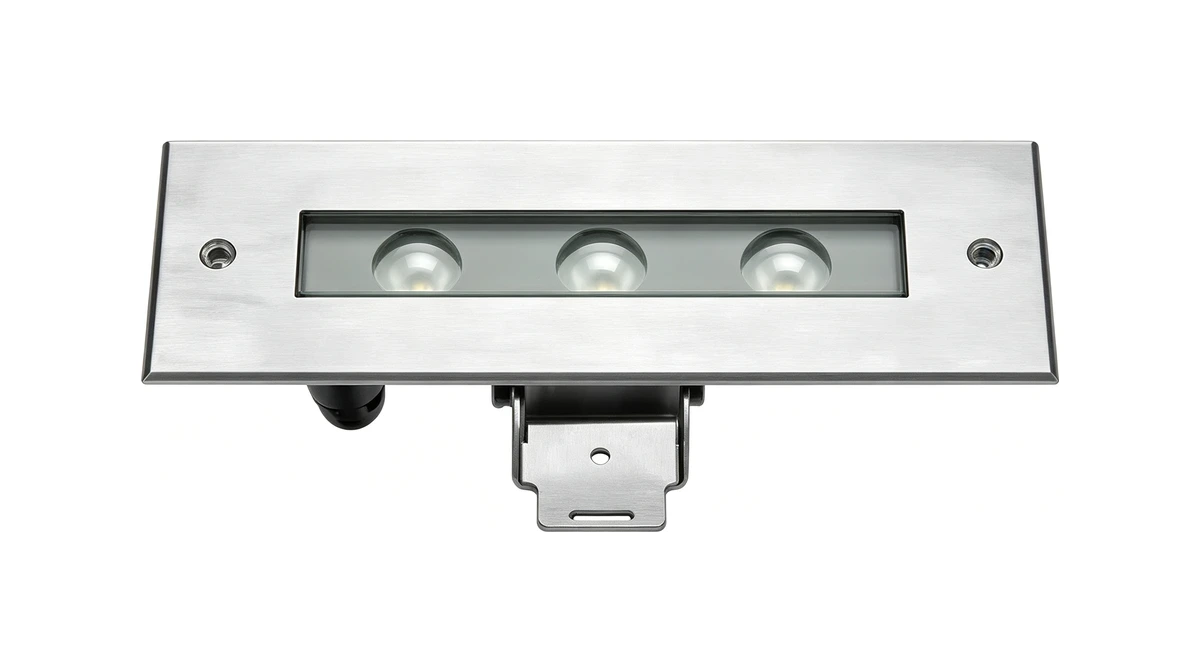

316SS-0302 LED Underwater Linear Pool Light 6 W 316 SS IP68
316SS-0302 is the compact 6 W linear underwater pool light, an L195 x W63 x H65 mm 316 stainless steel bar for short wall runs, spa walls and corner details. It shares the longer model's marine-grade housing, screw-fixed wall mounting and DC 24 V supply, so mixed lengths install as one continuous waterline. IP68 sealing allows permanent submersion, with a 2700K~6500K color range in silvery finish. An installation diagram is included. Ships from China.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Description:
The 316SS-0302 is the compact 6 W member of the linear underwater family, an L195 x W63 x H65 mm 316 stainless steel bar for shorter wall runs, spa walls and pool corners. It keeps the same wall-mounted, screw-fixed installation and DC 24 V supply as the longer 316SS-0602 12 W Linear, so both lengths can be mixed along one waterline, and teams with the LX-SC-010A 24 W for the full-length version.
Features:
1. 6 W linear bar, L195 x W63 x H65 mm.
2. Short run length for spa walls and pool corners.
3. 316 stainless steel body with marine-grade corrosion resistance.
4. Wall mounted with screws; installation diagram included.
5. DC 24 V supply, IP68 sealing, 2700K~6500K range.
Material Specifications:
Front cover & housing: moulded shaped stainless steel SUS 316L, hard chrome plated
LED: CREE / OSRAM
Lens: optical lens, efficiency ≥85%
Glass: step tempered glass, T=8 mm
Gasket: tooling shaped seal
Driver: constant current output
Power cable: H07RN-F 2X1.0 mm², L=3 m (low voltage)
H05RN-F 4X0.75 mm², L=3 m (RGB)
H05RN-F 5X0.5 mm², L=3 m (RGB 3in1, RGBW 4in1 DMX512)
Mounting sleeve: ABS
Dimmable support: Triac / PWM / 1-10V / DALI / DMX512
Product parameters:
| Model | 316SS-0302 |
| Materials | 316 Stainless Steel |
| Power | 6 W |
| Voltage | DC 24 V |
| Color | 2700K - 6500K |
| Finish | Silvery |
| Size | L195 x W63 x H65 mm |
| IP Rate | IP68 |
| Warranty | 2 Years |

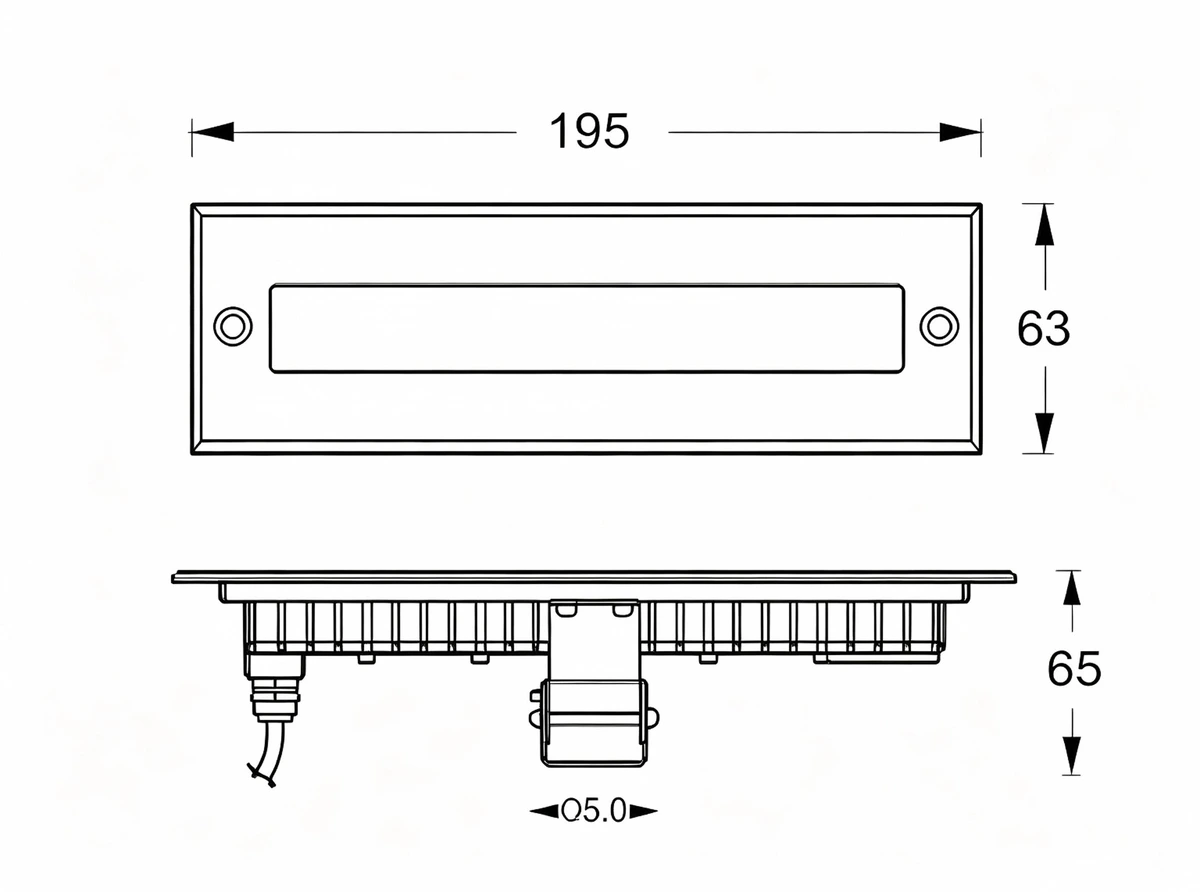

Product Size:
L195 x W63 x H65 mm.

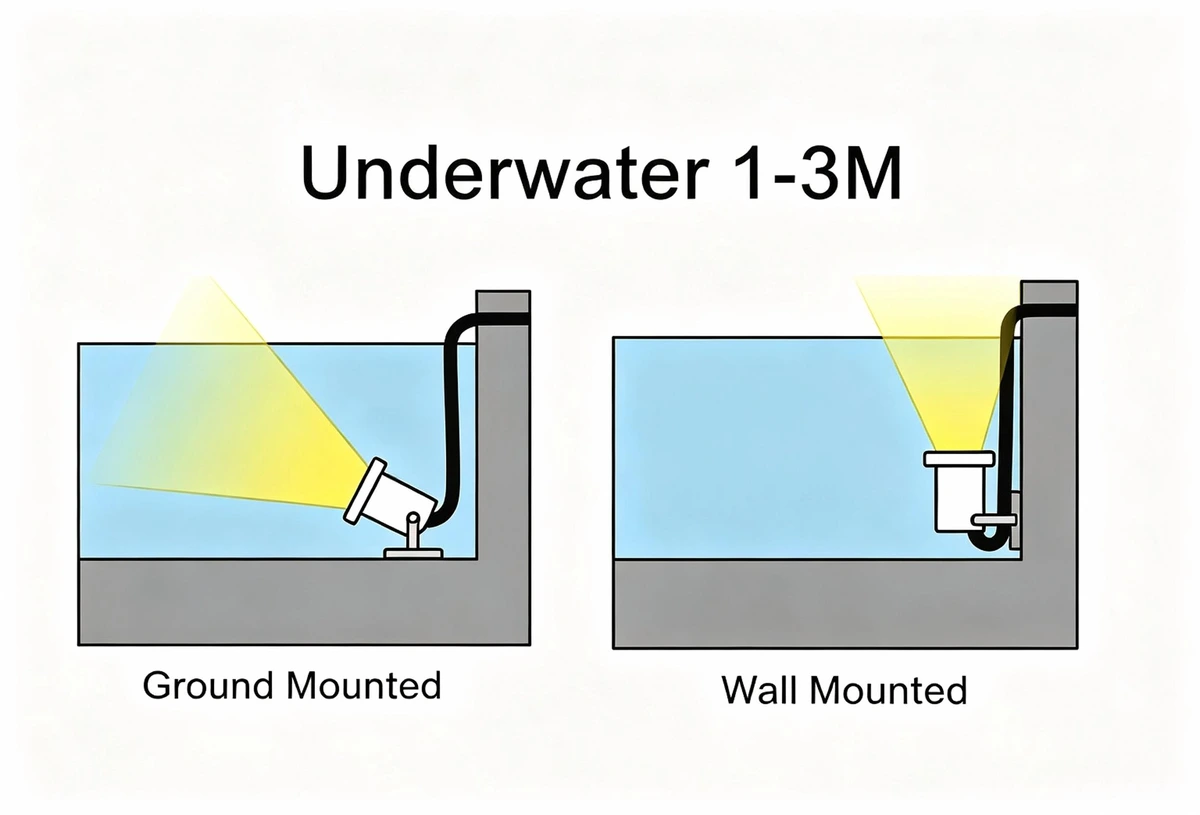

Installation:
