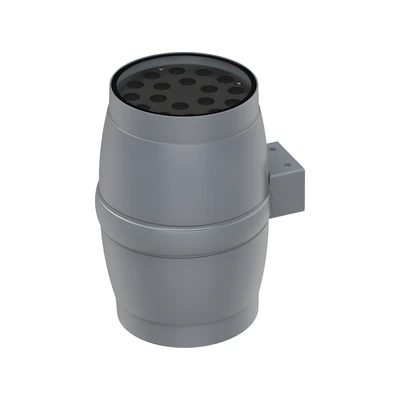

TL-TSD-G3603 Up-and-Down And Single-Direction Cylinder Wall Light 108 W IP66

Description:

The TL-TSD-G3603 is the 108 W flagship of the TL-TSD cylinder wall light family, lighting tall building bases, monumental columns and long walkways from a 317 x 256 mm waist-drum body. The standard version throws light upward and downward at once, and a single-direction version sends all output one way for grazing walls and signage. Three variants share the housing: the G3603 with CREE LEDs, the G14401 with OSRAM multi-chip LEDs, and the G48F4 in RGBW four-in-one color. Seven beam options from 6° to 60° shape the output at 2700K to 6000K, and the IP66 structural waterproof design needs no glue injection. Control runs ON-OFF or DMX512 at AC 100-250 V or DC 24 V.

Features:

1. Traditional waist-drum arc form in a die-cast aluminum body, cooled by an internal cavity and sealed to IP66 with a full structural waterproof design that needs no glue injection.

2. Stainless steel bracket and 4 mm high-transmission tempered glass behind an outdoor electrostatic spray finish that resists corrosion in harsh environments.

3. CREE or OSRAM LEDs behind clear flame-retardant optics, with a built-in anti-glare column that trims stray light and glare.

4. Monochrome or RGBW four-in-one full-color output on the same housing, both running ON-OFF or DMX512 control through a constant-current driver.

5. Up-and-down and single-direction versions with seven beam angles from a 6° spot to a 60° flood.

Product parameters:

Available versions on this housing:

Installation drawing:

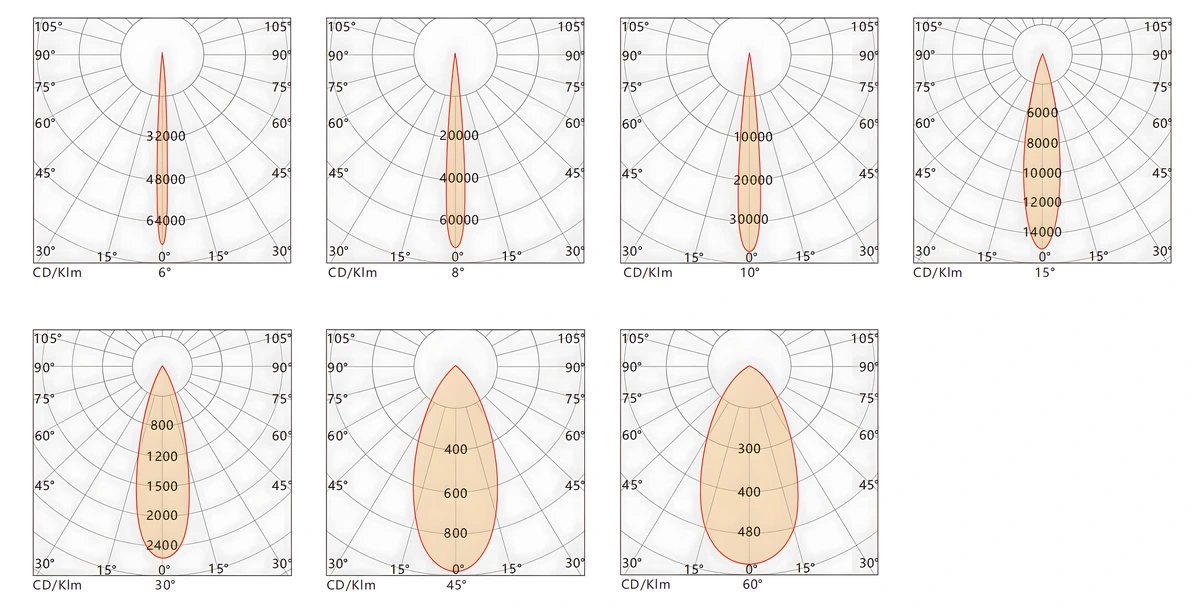

Photometric distribution curves:
