High Power Asymmetric LED Wall Washer TL-XQD-K10801 108-144 W

High Power Linear Wall Washer, 108–144 W, 18°+55° Beam & DMX512

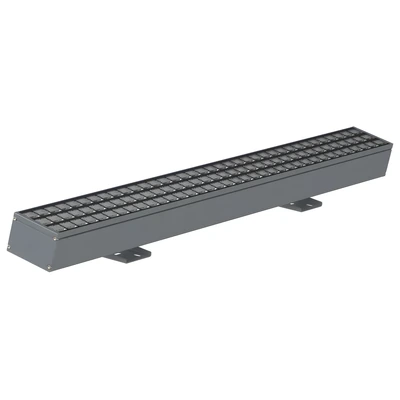

The K series is the largest wall washer platform in the range, from 108 W up to 144 W, all 1000 mm long and IP66, in a 92x107 mm housing with an 18+55 degree asymmetric beam and direct AC input. Every model shares one platform: 6063 aluminum body, SUS304 stainless steel screws, CREE/OSRAM LEDs, and DMX512 control with automatic addressing. Pick the power and the color, and the order sheet carries the right model number. Pictured: TL-XQD-K10801. All models in this range share the same body and 1000 mm length, differing only in power and color.

The K10801 is the largest wall washer in the range, at 92×107 mm and up to 144W. Its 18°+55° asymmetric beam throws light over great heights, which suits tower facades and stacked office slabs. It runs on AC220V or DC24V, in 108W single color plus 108W and 144W RGBW.

To order, pick the power (108 W to 144 W) and the color (single color or RGBW 4-in-1). Each row below is its own model.

Beam Options (choose per order)

The asymmetric beam is 18°+55°, throwing light upward across the wall from a fixture mounted close to the surface, for an even wash over low to mid-rise elevations.

Color & Control

Single color models run ON-OFF or through DMX512 dimming, and accept direct AC input so outdoor runs can skip a separate driver. RGBW 4-in-1 models put red, green, blue and white in one LED for full color mixing, driven per fixture over DMX512 with automatic addressing.

Housing & Build

6063 aluminum body, SUS304 stainless steel screws and a double slider mounting bracket, finished in outdoor electrostatic coating. The seal is structural with no glue process, rated IP66, with an internal cavity for heat dissipation.
