High Power Asymmetric LED Wall Washer TL-XQD-K4801 48-96 W

High Power Linear Wall Washer, 48–96 W, 18°+55° Beam & DMX512

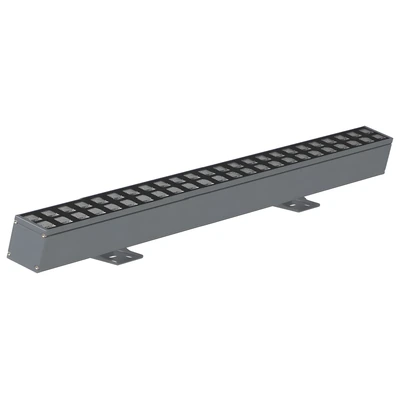

The K series is a high power wall washer platform from 48 W up to 96 W, all 1000 mm long and IP66, in a 64x108 mm housing with an 18+55 degree asymmetric beam and direct AC input. Every model shares one platform: 6063 aluminum body, SUS304 stainless steel screws, CREE/OSRAM LEDs, and DMX512 control with automatic addressing. Pick the power and the color, and the order sheet carries the right model number. Pictured: TL-XQD-K4801. All models in this range share the same body and 1000 mm length, differing only in power and color.

The K4801 steps up to a 64×108 mm body for mid-to-high-rise facades that need more output. It keeps the 18°+55° asymmetric beam and adds higher wattage: 48W or 72W single color, and 72W or 96W RGBW, on AC220V or DC24V.

To order, pick the power (48 W to 96 W) and the color (single color or RGBW 4-in-1). Each row below is its own model.

Beam Options (choose per order)

The asymmetric beam is 18°+55°, throwing light upward across the wall from a fixture mounted close to the surface, for an even wash over low to mid-rise elevations.

Color & Control

Single color models run ON-OFF or through DMX512 dimming, and accept direct AC input so outdoor runs can skip a separate driver. RGBW 4-in-1 models put red, green, blue and white in one LED for full color mixing, driven per fixture over DMX512 with automatic addressing.

Housing & Build

6063 aluminum body, SUS304 stainless steel screws and a double slider mounting bracket, finished in outdoor electrostatic coating. The seal is structural with no glue process, rated IP66, with an internal cavity for heat dissipation.
