BE-STL0101 Step Light 1 W IP65 Aluminium
The BE-STL0101 is a 1 W aluminium step light for flush mounting in stairs, decks and walkways. A single LED delivers 120 lm with 21 degree and 36 degree beam angle options at 2700 K / 3000 K / 4000 K, sealed to IP65 in a matt silver anodized body. It runs on 12/24 V DC through a built-in driver with a 1 m power cable, fits a D40 cut-out at 55 mm recessed depth, and measures 45 x 45 mm on the face at 53 mm height. A STAS01 mounting sleeve, STAG01 glass lenses and a JB1001 junction box are available as optional accessories. Orders start at 100 with a 3-year warranty. Sourced from China with full specifications and pricing available on request.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Description:
The BE-STL0101 (versions A / B) is an aluminium LED step light built for flush mounting in stairs, decks and pathways. A 1 W LED delivers 120 lm with 21° / 36° beam angle options at 2700 K / 3000 K / 4000 K from a matt silver anodized body sealed to IP65. It runs on 12/24 V DC through a built-in driver with a 1 m power cable, fits a D40 cut-out at 55 mm recessed depth, and measures 45 × 45 mm on the face at 53 mm height. Two face versions cover a round or square faceplate, with matt black available as an optional finish. Sourced from China as a specification-compliant commercial-grade step light.
Features:
1. 21° / 36° beam angle options direct light low across the step surface with reduced glare
2. Round or square faceplate versions match different stair and deck designs
3. Built-in 12/24 V DC driver with a 1 m power cable removes extra on-site wiring
4. Matt silver anodized aluminium body with a D40 cut-out and 55 mm recessed depth for flush installation
Product parameters:
| Model | BE-STL0101A | BE-STL0101B |
| Face Version | Round faceplate | Square faceplate |
| Materials | Aluminium | Aluminium |
| Power | 1 W | 1 W |
| Lumen | 120 lm | 120 lm |
| Beam Angle | 21° / 36° | 21° / 36° |
| Voltage | 12/24 V DC (built-in driver) | 12/24 V DC (built-in driver) |
| Color Temperature | 2700 K / 3000 K / 4000 K | 2700 K / 3000 K / 4000 K |
| Cut-out | D40 | D40 |
| Recessed Depth | 55 mm | 55 mm |
| Finish | Matt Silver Anodized, Matt Black optional | Matt Silver Anodized, Matt Black optional |
| Size | 45 × 45 × 53 mm | 45 × 45 × 53 mm |
| IP Rating | IP65 | IP65 |
| Warranty | 3 Years | 3 Years |
| MOQ | 100 | 100 |
Face Versions:

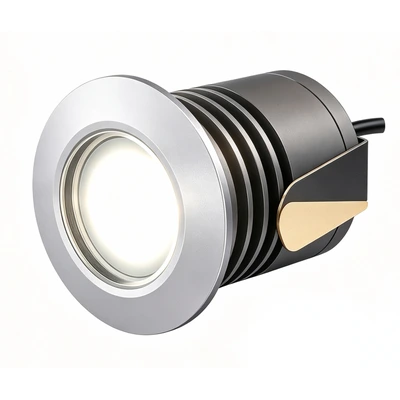

Version A (BE-STL0101A): round faceplate

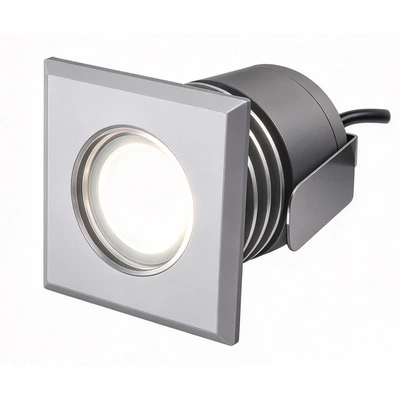

Version B (BE-STL0101B): square faceplate.

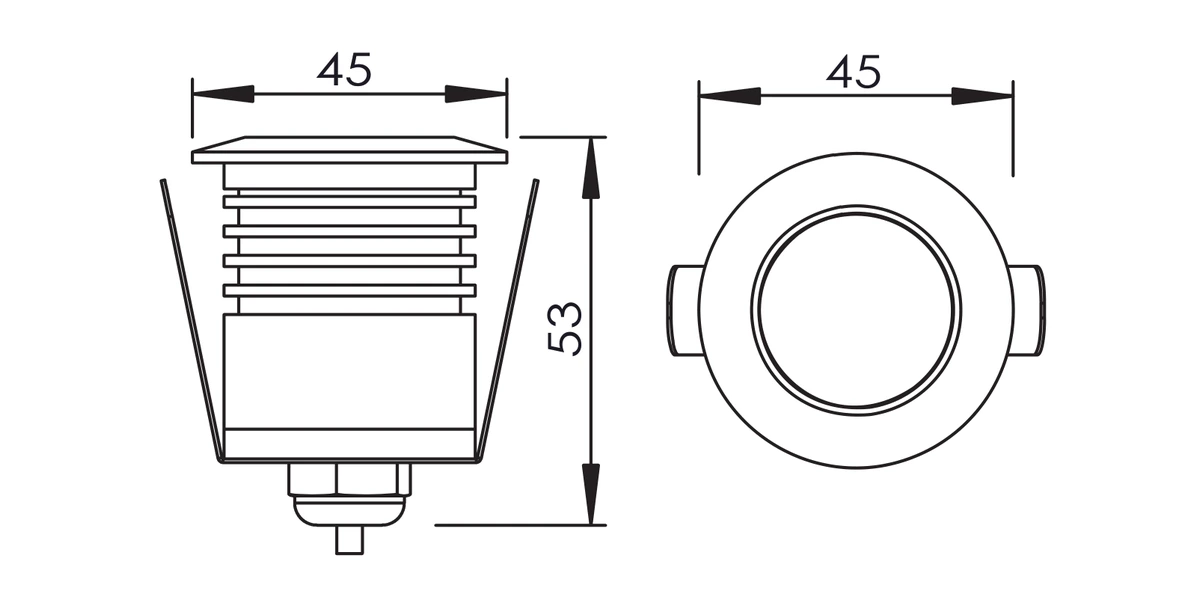

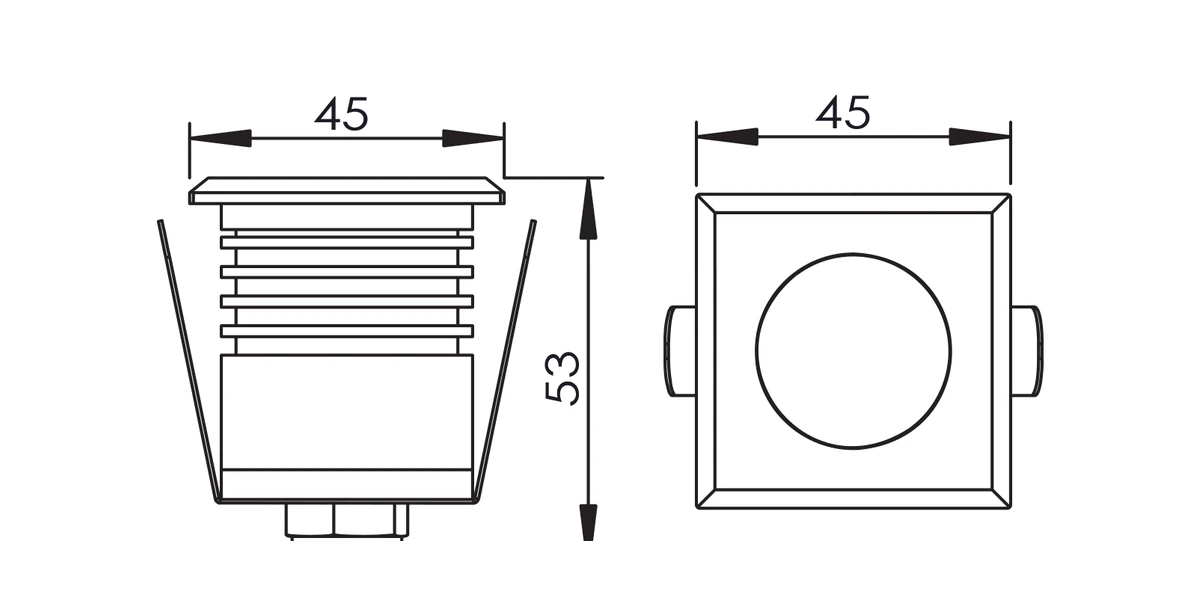

Product Size:

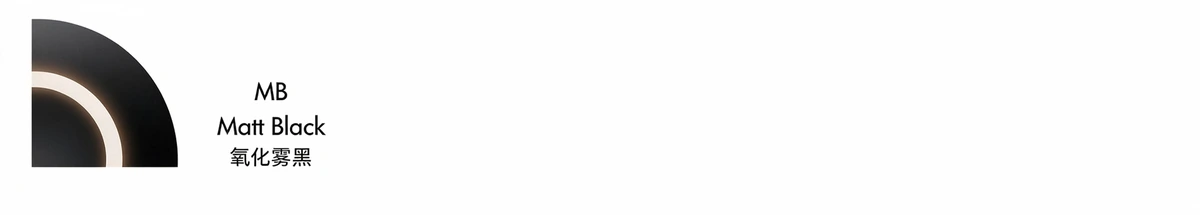

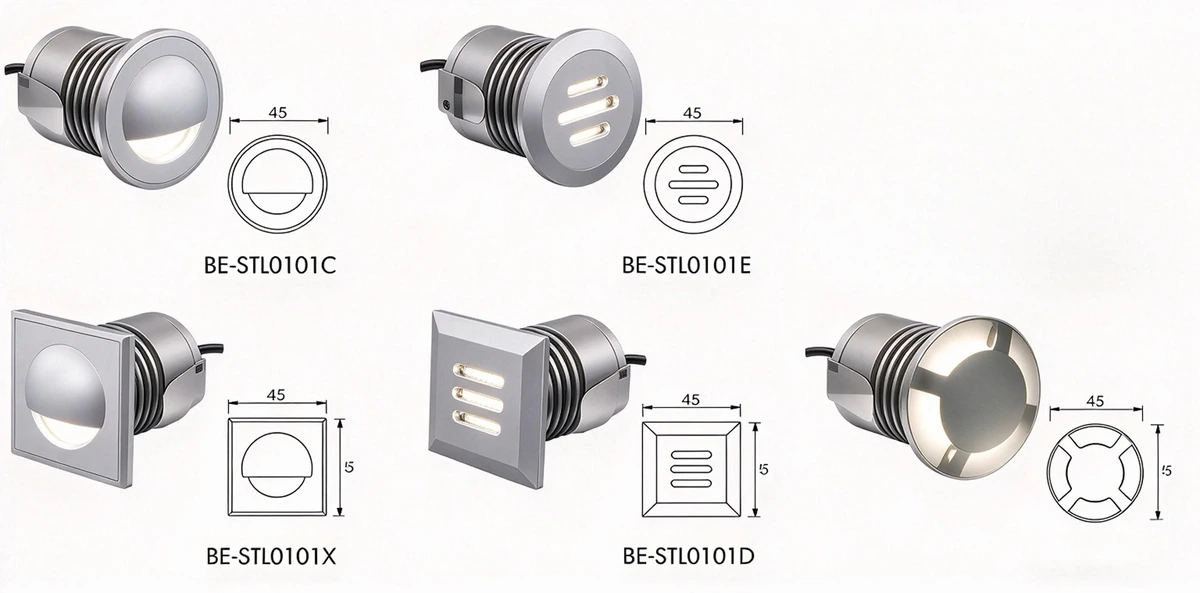

Optional Finish:

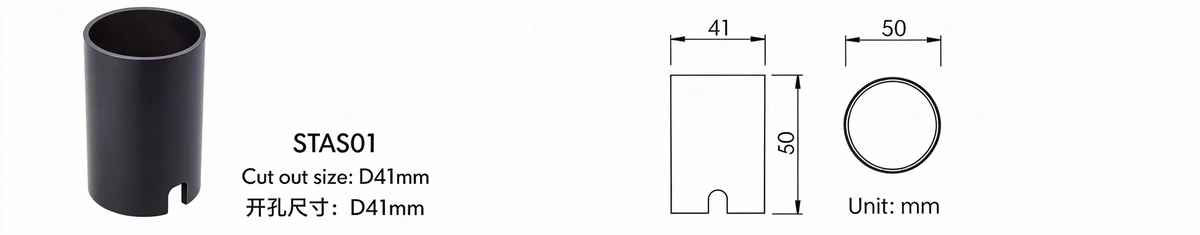

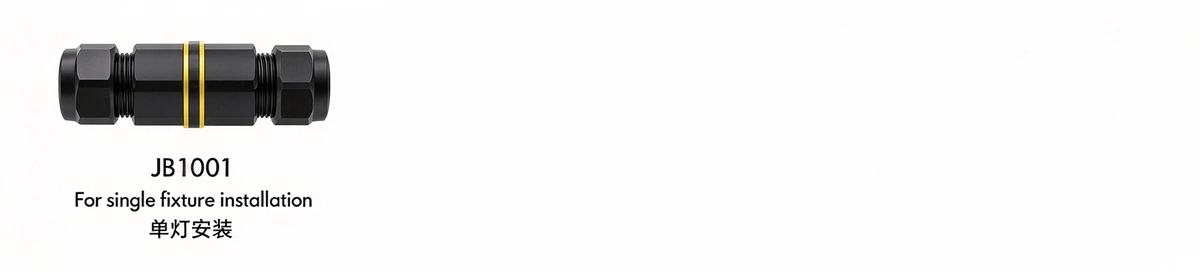

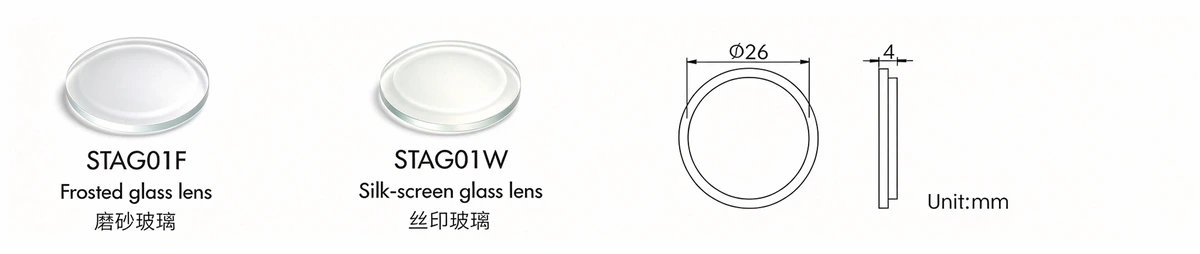

Optional Accessories:
