BE-STL0102 Micro Step Light 1 W IP67 Aluminium
The BE-STL0102 is a 1 W micro aluminium step light for discreet flush mounting in stairs, decks and pathways. A single LED delivers 120 lm through 25, 45 and 60 degree beam angle options in 2700 K / 3000 K / 4000 K from a matt silver anodized body sealed to IP67. It runs on a 350 mA 3-4 V DC driver with a 1 m cable and comes in two face sizes, D16 and D20 cut-outs, at 35 mm recessed depth. Orders start at 100 with a 3-year warranty. Sourced from China with full specifications and pricing on request.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Description:
The BE-STL0102 (versions A / B / C / D) is a micro aluminium LED step light for flush mounting in stairs, decks and pathways. A 1 W LED delivers 120 lm with 25° / 45° / 60° beam angle options at 2700 K / 3000 K / 4000 K from a matt silver anodized body sealed to IP67. It runs on a 350 mA 3-4 V DC driver with a 1 m power cable, and is offered in two face sizes with D16 and D20 cut-outs at 35 mm recessed depth. The compact faceplates keep the fixture barely visible for a clean architectural line. Sourced from China as a specification-compliant commercial-grade step light.
Features:
1. Micro 20 mm and 25 mm faceplates sit almost flush for an unobtrusive stair or deck detail
2. 25° / 45° / 60° beam angle options place light exactly where the step or pathway needs it
3. 350 mA 3-4 V DC input with a 1 m cable keeps the remote driver wiring simple
4. Matt silver anodized aluminium body sealed to IP67 stands up to outdoor stairs and decks
Product parameters:
| Model | BE-STL0102A / B | BE-STL0102C / D |
| Faceplate | Ø20 mm | Ø25 mm |
| Materials | Aluminium | Aluminium |
| Power | 1 W | 1 W |
| Lumen | 120 lm | 120 lm |
| Beam Angle | 25° / 45° / 60° | 25° / 45° / 60° |
| Voltage | 350 mA 3-4 V DC | 350 mA 3-4 V DC |
| Color Temperature | 2700 K / 3000 K / 4000 K | 2700 K / 3000 K / 4000 K |
| Cut-out | D16 | D20 |
| Recessed Depth | 35 mm | 35 mm |
| Finish | Matt Silver Anodized | Matt Silver Anodized |
| Size | Ø20 × 31 mm | Ø25 × 31 mm |
| IP Rating | IP67 | IP67 |
| Warranty | 3 Years | 3 Years |
| MOQ | 100 | 100 |
Face Versions:

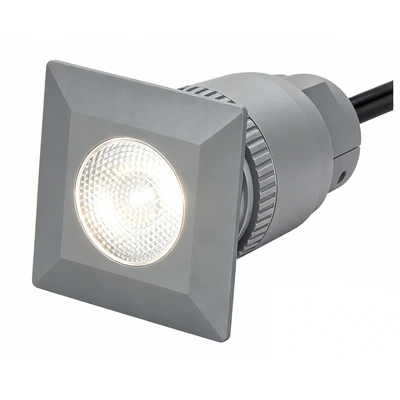

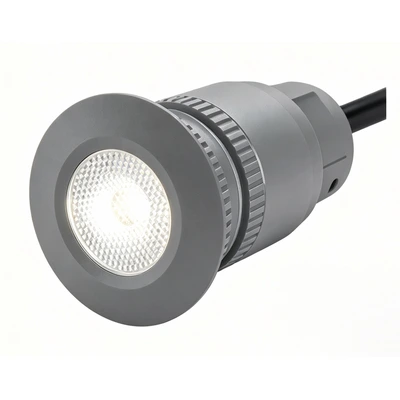

Version A / B (BE-STL0102A / B): 20 mm faceplate, D16 cut-out.

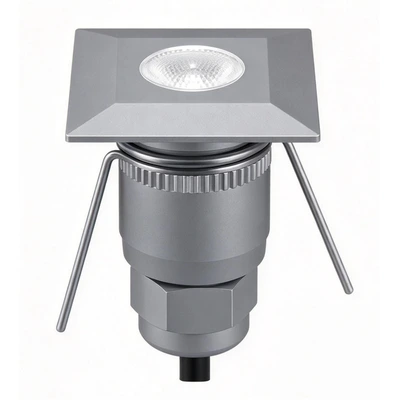

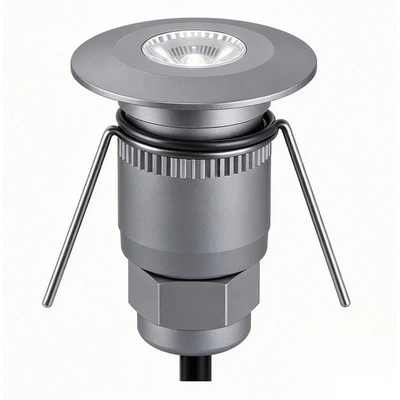

Version C / D (BE-STL0102C / D): 25 mm faceplate, D20 cut-out.

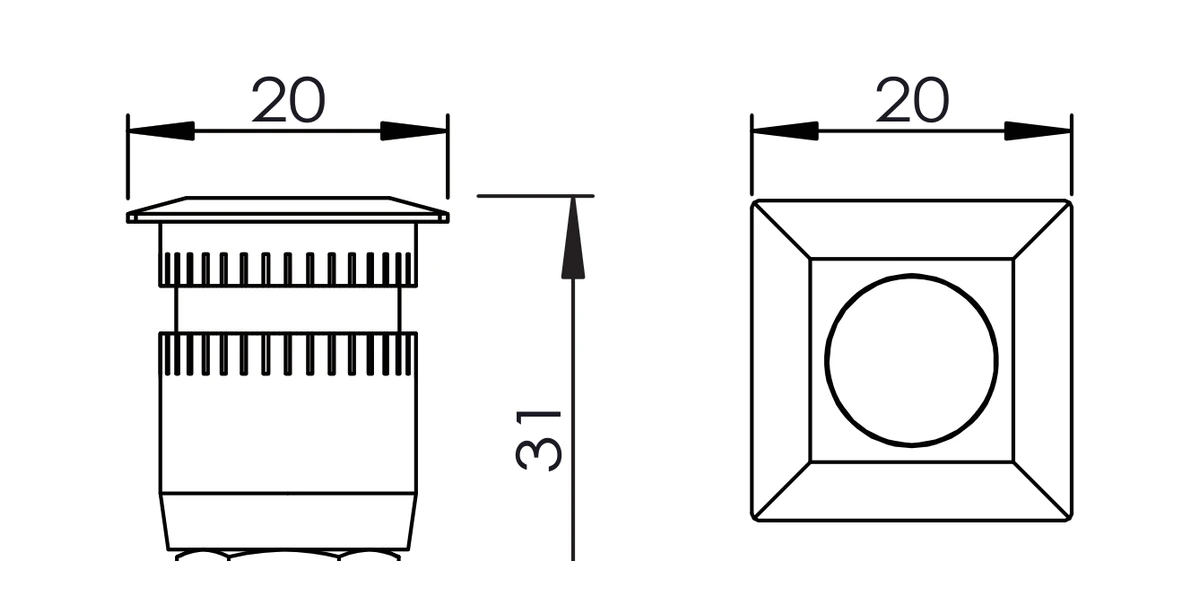

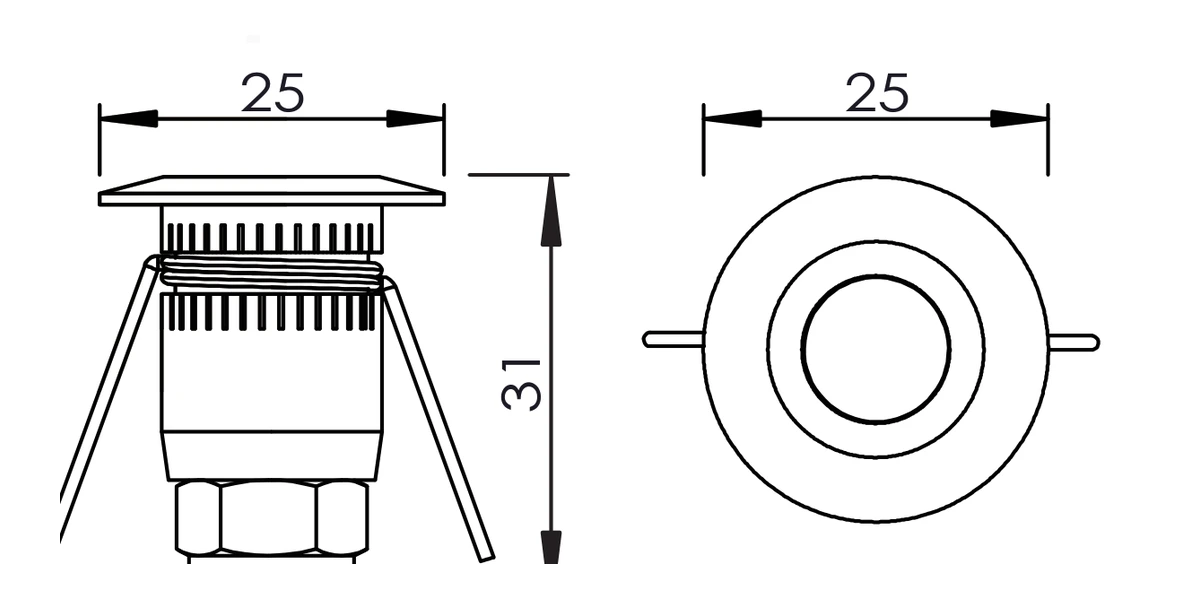

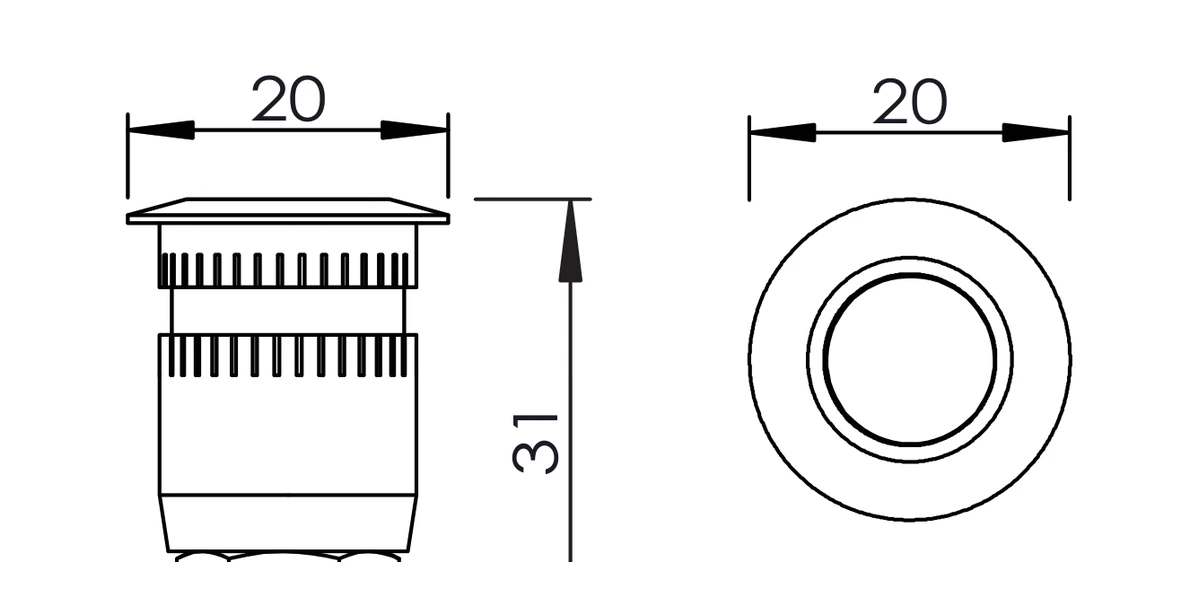

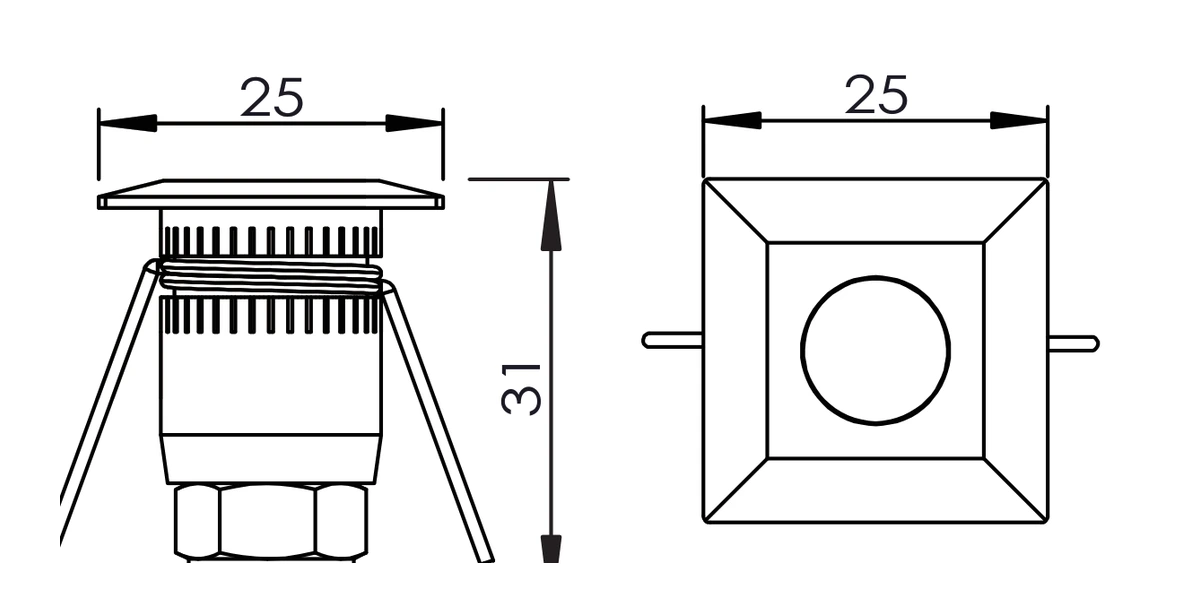

Product Size:
