BE-STL0103 Step Light 0.5 W IP65 Aluminium
The BE-STL0103 is a 0.5 W aluminium step light for flush mounting in stairs, decks and walkways. A single LED delivers 75 lm with a 40 degree beam at 2700 K / 3000 K / 4000 K from a matt silver anodized body sealed to IP65. It runs on 12/24 V DC through a built-in driver with a 1 m cable, fits a D35 cut-out at 55 mm recessed depth, and measures 45 x 45 mm on the face at 53 mm height. A STAS02 mounting sleeve, STAG01 glass lenses and a JB1001 junction box are available as optional accessories. Orders start at 100 with a 3-year warranty. Sourced from China with full specifications and pricing on request.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Description:
The BE-STL0103 (versions A / B) is an aluminium LED step light built for flush mounting in stairs, decks and pathways. A 0.5 W LED delivers 75 lm with a 40° beam angle at 2700 K / 3000 K / 4000 K from a matt silver anodized body sealed to IP65. It runs on 12/24 V DC through a built-in driver with a 1 m power cable, fits a D35 cut-out at 55 mm recessed depth, and measures 45 × 45 mm on the face at 53 mm height. Two face versions cover a round or square faceplate, with matt black available as an optional finish. Sourced from China as a specification-compliant commercial-grade step light.
Features:
1. 40° beam angle washes light low across the step surface with reduced glare
2. Round or square faceplate versions match different stair and deck designs
3. Built-in 12/24 V DC driver with a 1 m power cable removes extra on-site wiring
4. D35 cut-out and 55 mm recessed depth sit flush for a clean architectural line
Product parameters:
| Model | BE-STL0103A | BE-STL0103B |
| Face Version | Round faceplate | Square faceplate |
| Materials | Aluminium | Aluminium |
| Power | 0.5 W | 0.5 W |
| Lumen | 75 lm | 75 lm |
| Beam Angle | 40° | 40° |
| Voltage | 12/24 V DC (built-in driver) | 12/24 V DC (built-in driver) |
| Color Temperature | 2700 K / 3000 K / 4000 K | 2700 K / 3000 K / 4000 K |
| Cut-out | D35 | D35 |
| Recessed Depth | 55 mm | 55 mm |
| Finish | Matt Silver Anodized, Matt Black optional | Matt Silver Anodized, Matt Black optional |
| Size | 45 × 45 × 53 mm | 45 × 45 × 53 mm |
| IP Rating | IP65 | IP65 |
| Warranty | 3 Years | 3 Years |
| MOQ | 100 | 100 |
Face Versions:

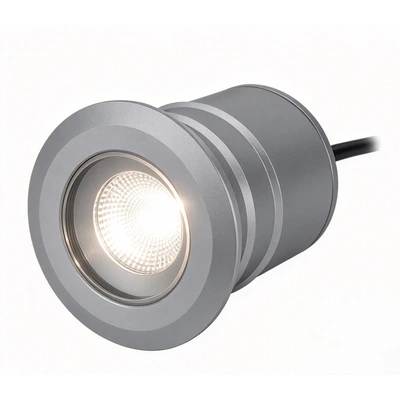

Version A (BE-STL0103A): round faceplate

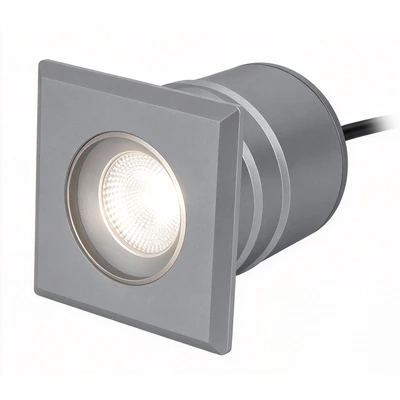

Version B (BE-STL0103B): square faceplate.

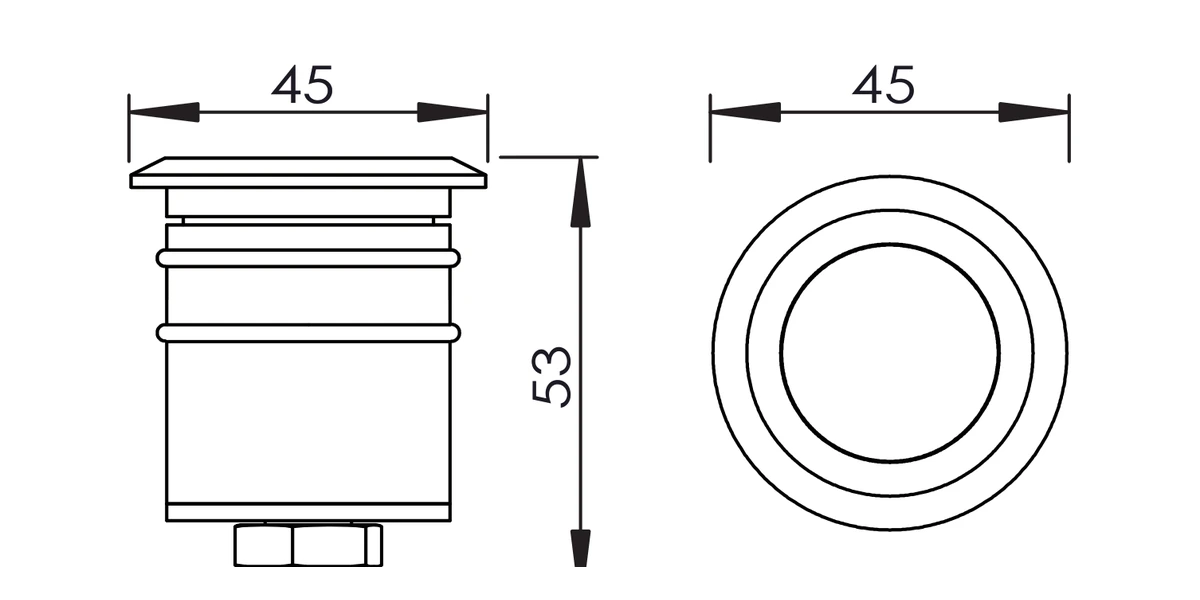

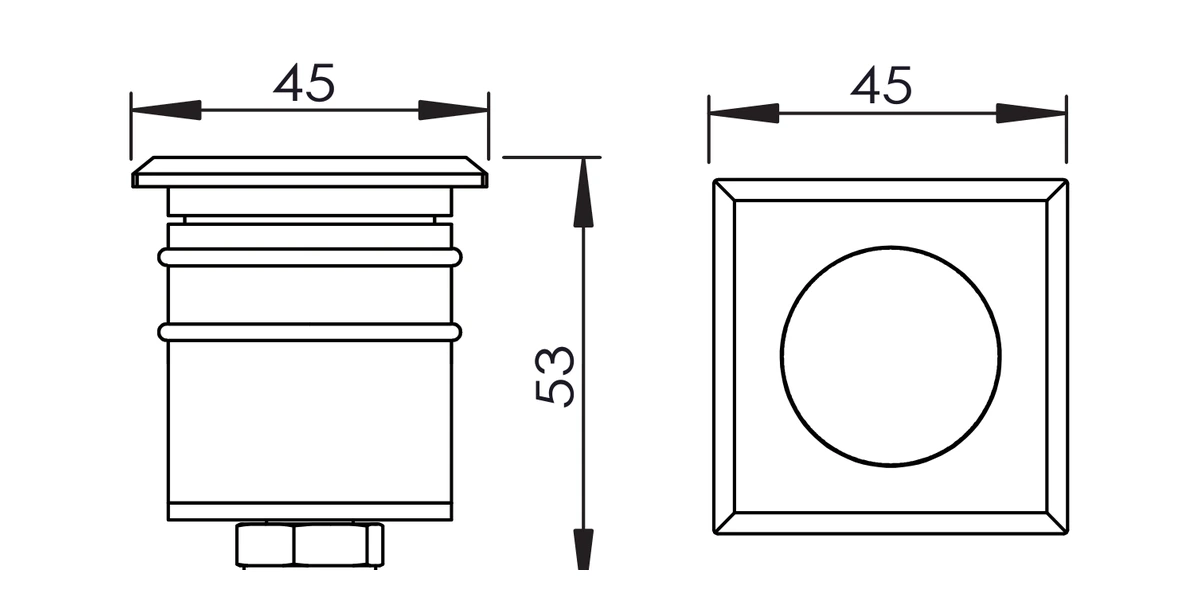

Product Size:

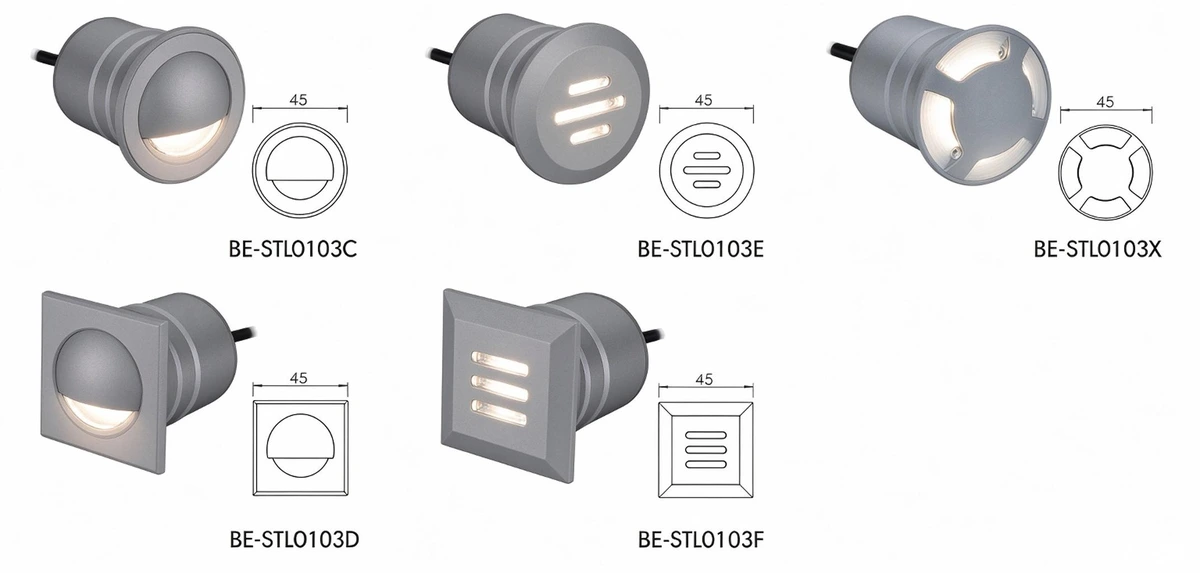

Optional Finish:

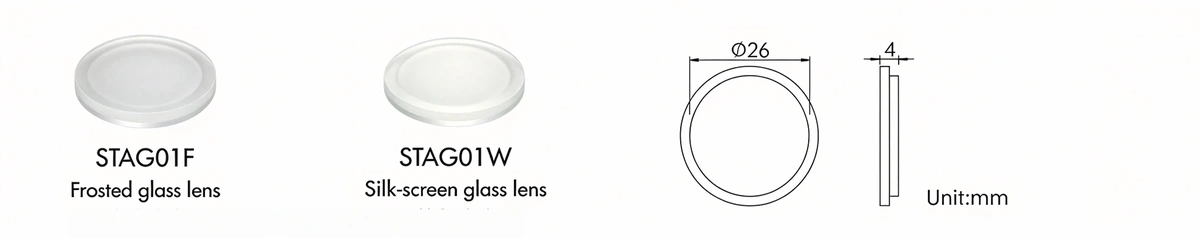

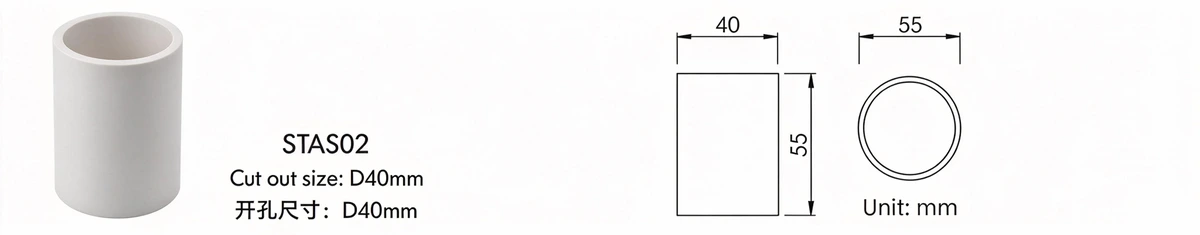

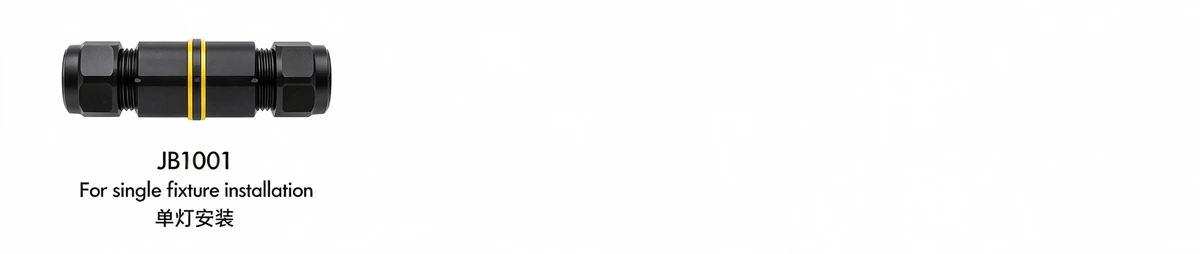

Optional Accessories:
