BE-STL0104 Dimmable Step Light 1 W IP65 Aluminium
The BE-STL0104 is a dimmable 1 W aluminium step light for flush mounting in stairs, decks and walkways, with a 2 W version (BE-STL0204) sharing the same body. A single LED delivers 150 lm (280 lm at 2 W) with an asymmetric beam at 2700 K / 3000 K / 4000 K from a matt silver anodized body sealed to IP65. It runs on 24 V DC with 1-10 V dimming, fits a D55 cut-out at 50 mm recessed depth, and measures 62 x 62 mm on the face at 46 mm height. Matt black and powder coated white are available as optional finishes. Orders start at 100 with a 3-year warranty. Sourced from China with full specifications and pricing on request.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Description:
The BE-STL0104 (versions A / B) is a dimmable aluminium LED step light for flush mounting in stairs, decks and pathways, with a 2 W version (BE-STL0204) sharing the same housing. A 1 W LED delivers 150 lm (280 lm at 2 W) with an asymmetric beam at 2700 K / 3000 K / 4000 K from a matt silver anodized body sealed to IP65. It runs on 24 V DC with 1-10 V dimming for fine light control, fits a D55 cut-out at 50 mm recessed depth, and measures 62 × 62 mm on the face at 46 mm height. Two face versions cover a round or square faceplate, with matt black and powder coated white available as optional finishes. Sourced from China as a specification-compliant commercial-grade step light.
Features:
1. 1-10 V dimming sets the light level to match the stair or deck scene
2. Asymmetric beam directs light across the tread without glare to the eye line
3. 1 W and 2 W power versions share one housing for a consistent look across a project
4. 24 V DC input keeps the low-voltage run safe and simple to wire
Product parameters:
| Model | BE-STL0104A / B (1 W) | BE-STL0204A / B (2 W) |
| Face Version | Round / Square | Round / Square |
| Materials | Aluminium | Aluminium |
| Power | 1 W | 2 W |
| Lumen | 150 lm | 280 lm |
| Beam Angle | Asymmetric | Asymmetric |
| Voltage | 24 V DC | 24 V DC |
| Color Temperature | 2700 K / 3000 K / 4000 K | 2700 K / 3000 K / 4000 K |
| Dimming | 1-10 V | 1-10 V |
| Cut-out | D55 | D55 |
| Recessed Depth | 50 mm | 50 mm |
| Finish | Matt Silver Anodized, Matt Black / Powder Coated White optional | Matt Silver Anodized, Matt Black / Powder Coated White optional |
| Size | 62 × 62 × 46 mm | 62 × 62 × 46 mm |
| IP Rating | IP65 | IP65 |
| Warranty | 3 Years | 3 Years |
| MOQ | 100 | 100 |
Face Versions:

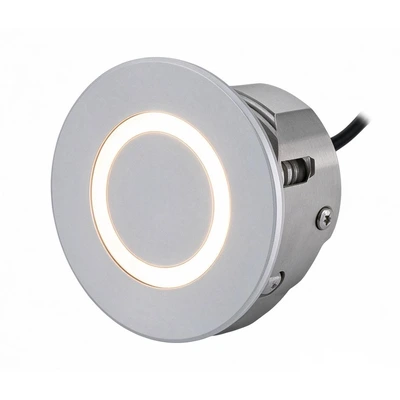

Version A: round faceplate.

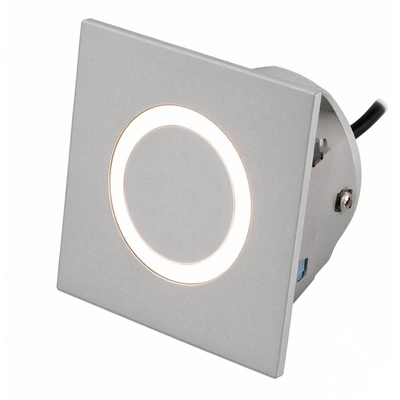

Version B: square faceplate.

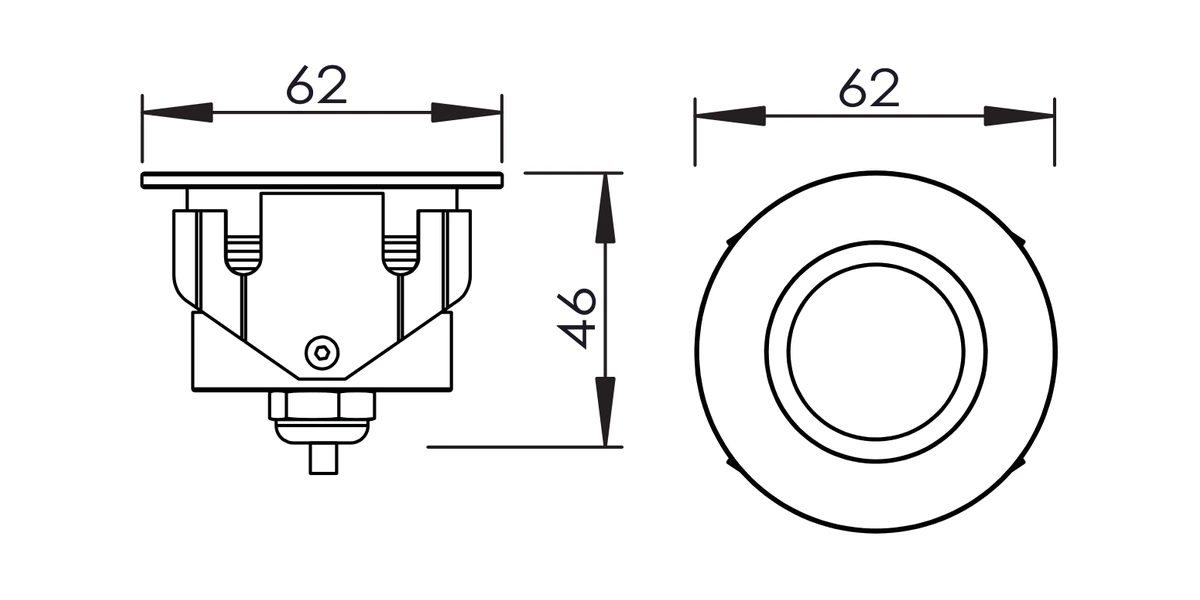

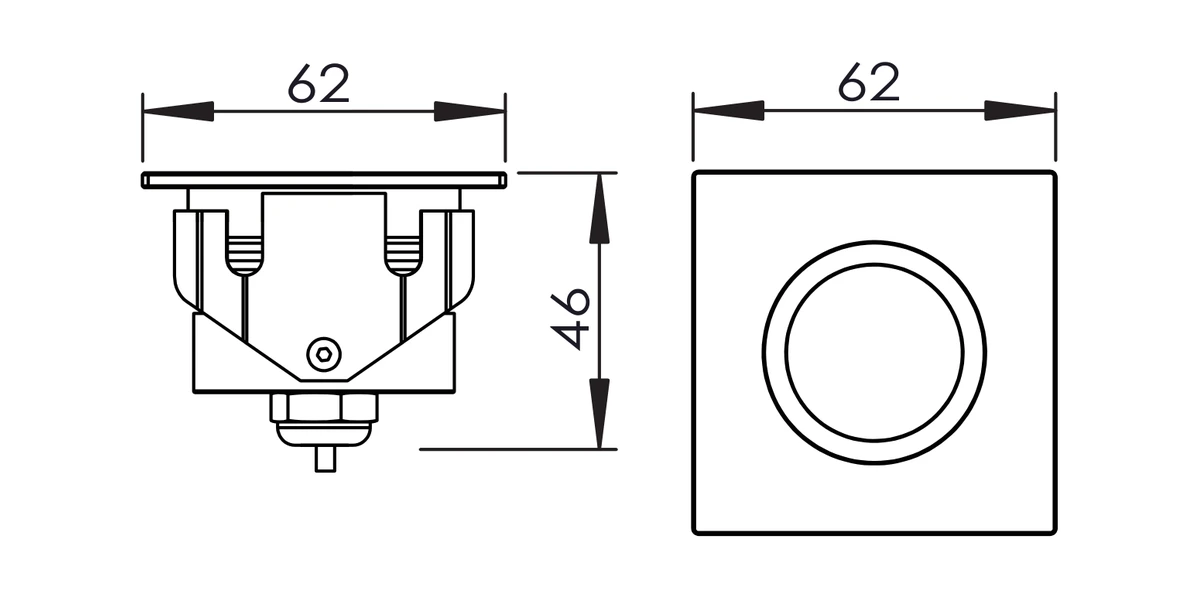

Product Size:

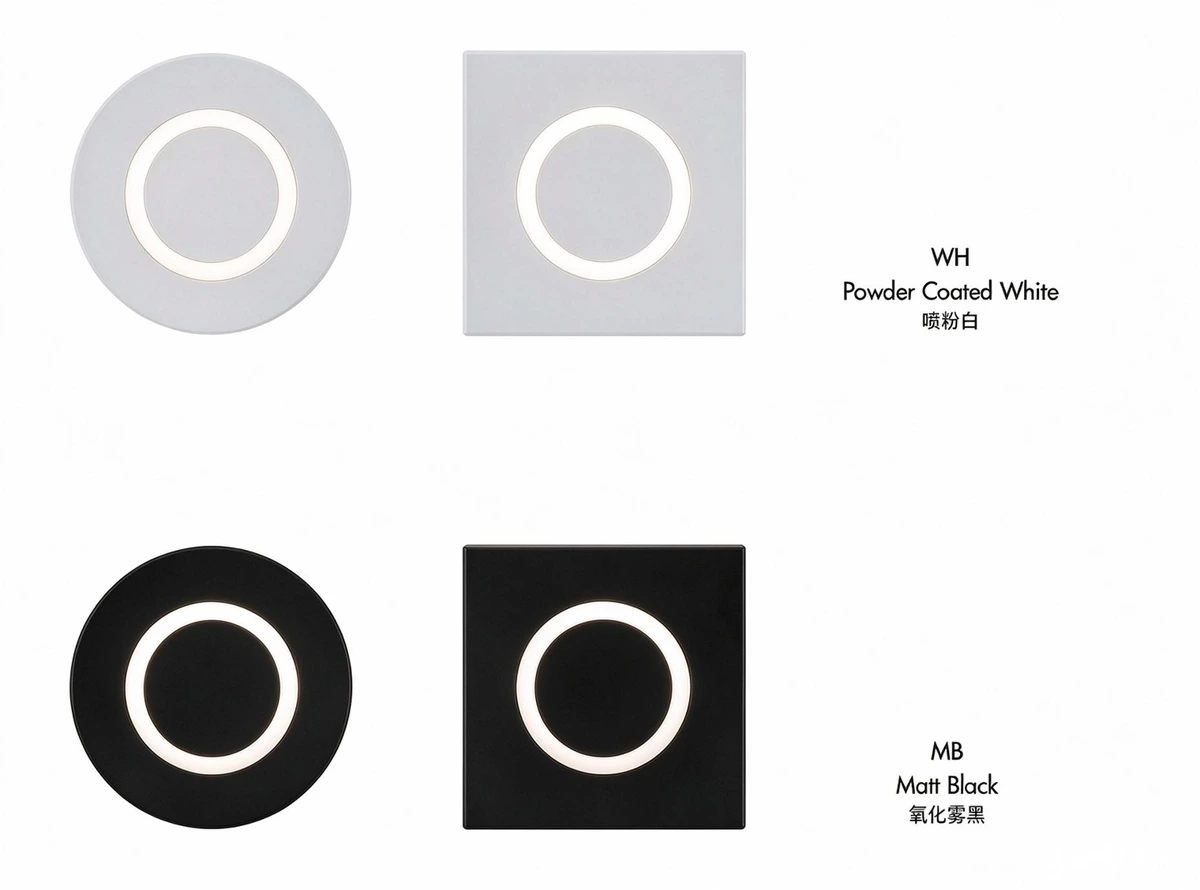

Optional Finish:

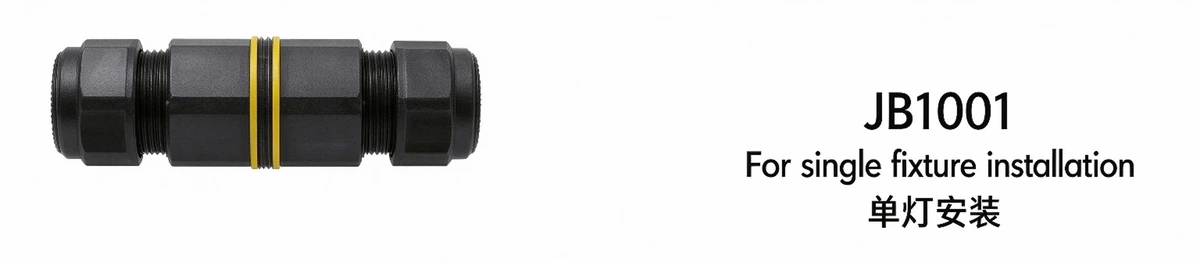

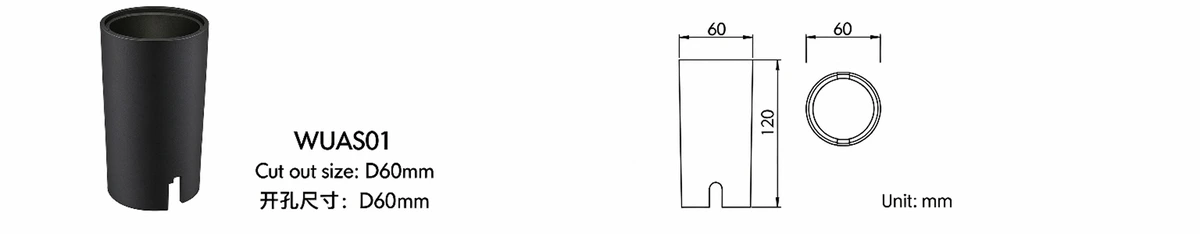

Optional Accessories:
