BE-STL0105 Dimmable Step Light 1 W IP65 Aluminium
The BE-STL0105 is a dimmable 1 W aluminium step light for flush mounting in stairs, decks and walkways. A single LED delivers 100 lm with an asymmetric beam at 2700 K / 3000 K / 4000 K from a matt silver anodized body sealed to IP65. It runs on 24 V DC with 1-10 V dimming, fits a D40 cut-out at 50 mm recessed depth, and measures 45 x 45 mm on the face at 46 mm height. Two face versions cover a round or square faceplate, with matt black and powder coated white available as optional finishes. Orders start at 100 with a 3-year warranty. Sourced from China with full specifications and pricing on request.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Description:
The BE-STL0105 (versions A / B) is a dimmable aluminium LED step light for flush mounting in stairs, decks and pathways. A 1 W LED delivers 100 lm with an asymmetric beam at 2700 K / 3000 K / 4000 K from a matt silver anodized body sealed to IP65. It runs on 24 V DC with 1-10 V dimming for fine light control, fits a D40 cut-out at 50 mm recessed depth, and measures 45 × 45 mm on the face at 46 mm height. Two face versions cover a round or square faceplate, with matt black and powder coated white available as optional finishes. Sourced from China as a specification-compliant commercial-grade step light.
Features:
1. 1-10 V dimming adjusts the light level to the stair or deck scene
2. Asymmetric beam washes light across the tread without glare to the eye line
3. D40 cut-out at 50 mm recessed depth sits flush for a clean architectural line
4. 24 V DC input keeps the low-voltage run safe and simple to wire
Product parameters:
| Model | BE-STL0105A | BE-STL0105B |
| Face Version | Round faceplate | Square faceplate |
| Materials | Aluminium | Aluminium |
| Power | 1 W | 1 W |
| Lumen | 100 lm | 100 lm |
| Beam Angle | Asymmetric | Asymmetric |
| Voltage | 24 V DC | 24 V DC |
| Color Temperature | 2700 K / 3000 K / 4000 K | 2700 K / 3000 K / 4000 K |
| Dimming | 1-10 V | 1-10 V |
| Cut-out | D40 | D40 |
| Recessed Depth | 50 mm | 50 mm |
| Finish | Matt Silver Anodized, Matt Black / Powder Coated White optional | Matt Silver Anodized, Matt Black / Powder Coated White optional |
| Size | 45 × 45 × 46 mm | 45 × 45 × 46 mm |
| IP Rating | IP65 | IP65 |
| Warranty | 3 Years | 3 Years |
| MOQ | 100 | 100 |
Face Versions:

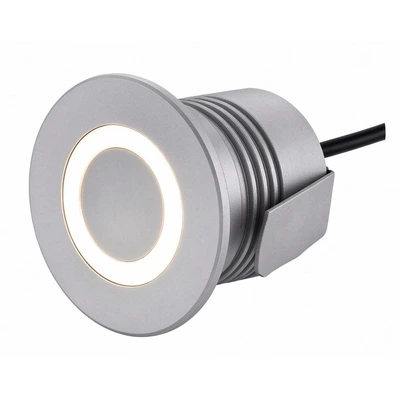

Version A (BE-STL0105A): round faceplate.

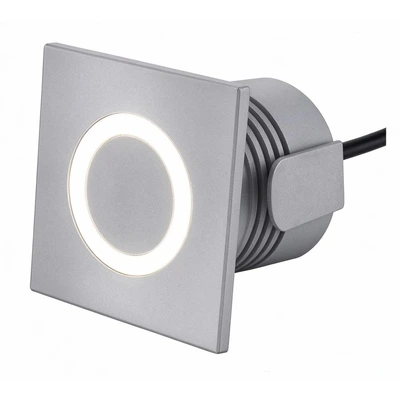

Version B (BE-STL0105B): square faceplate.

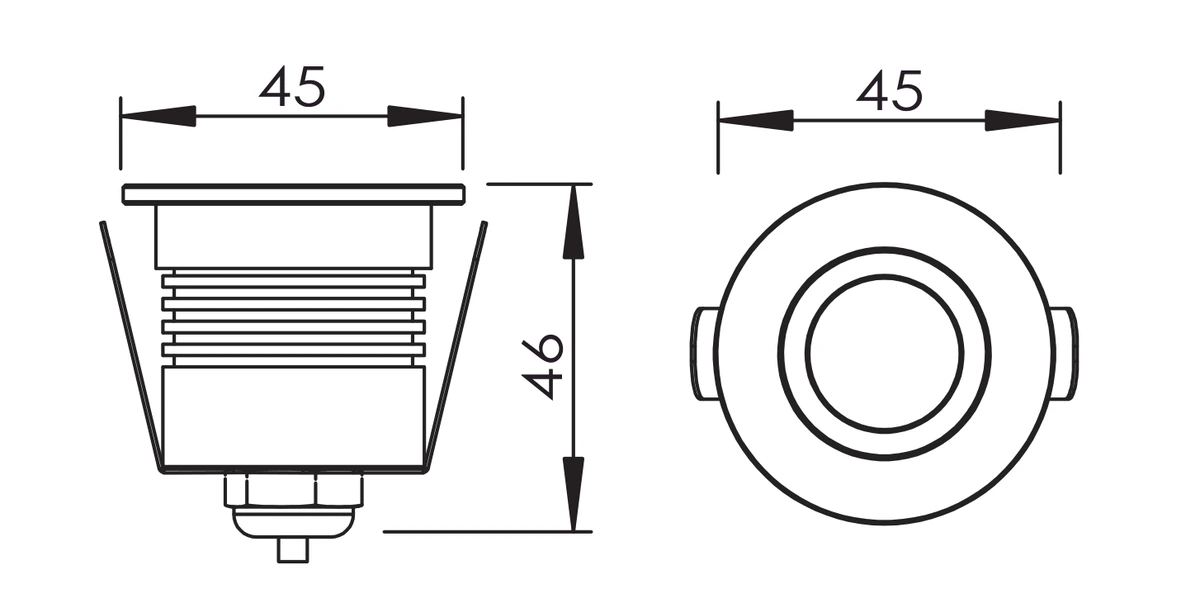

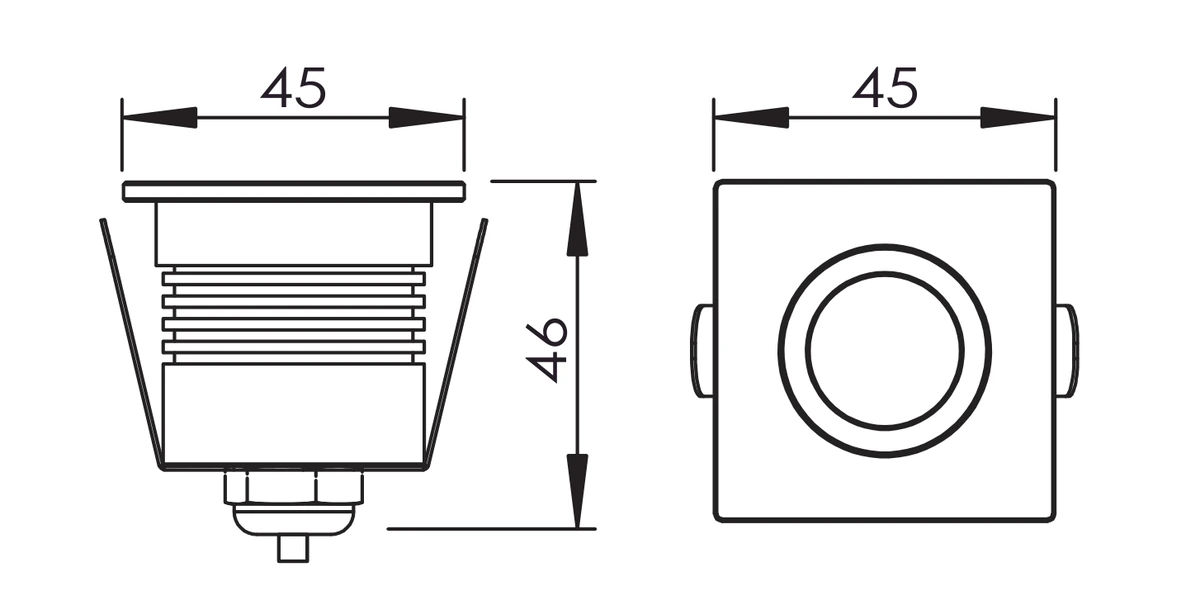

Product Size:

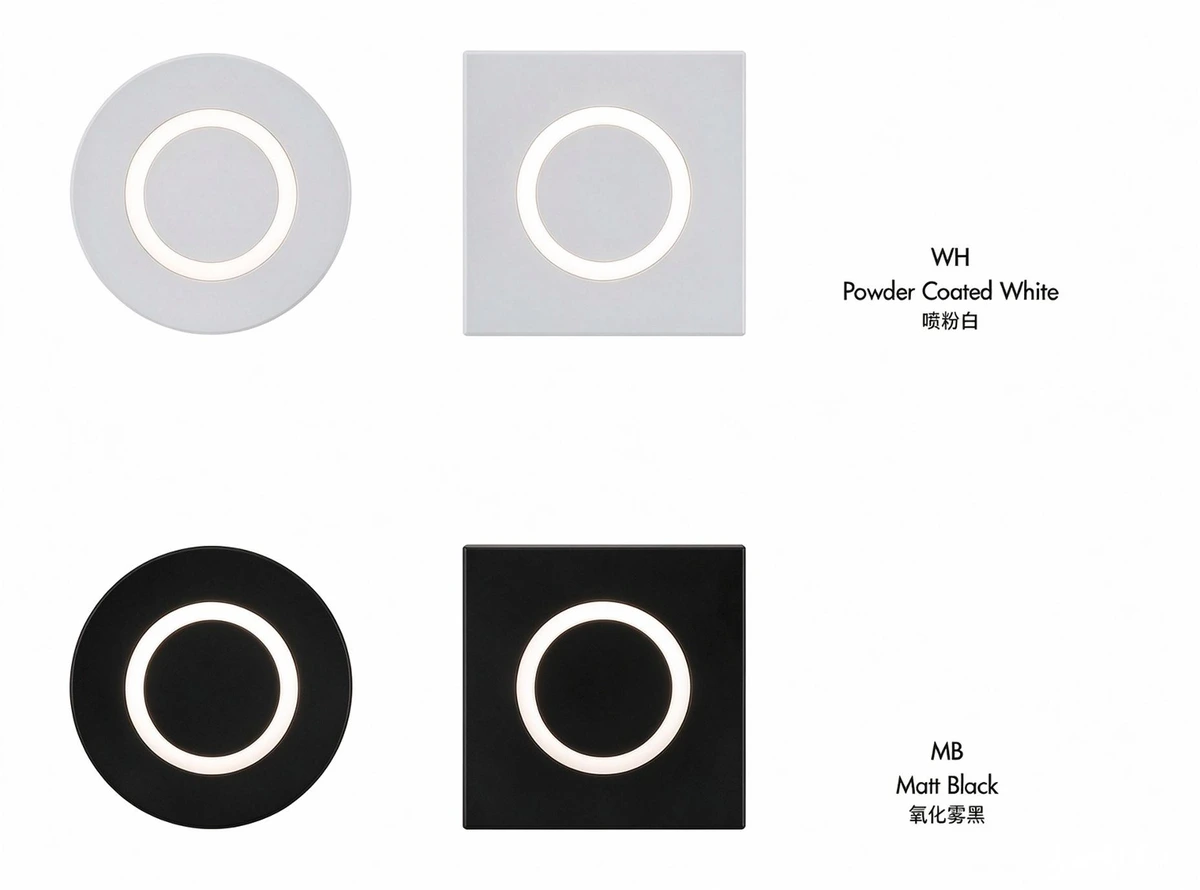

Optional Finish:

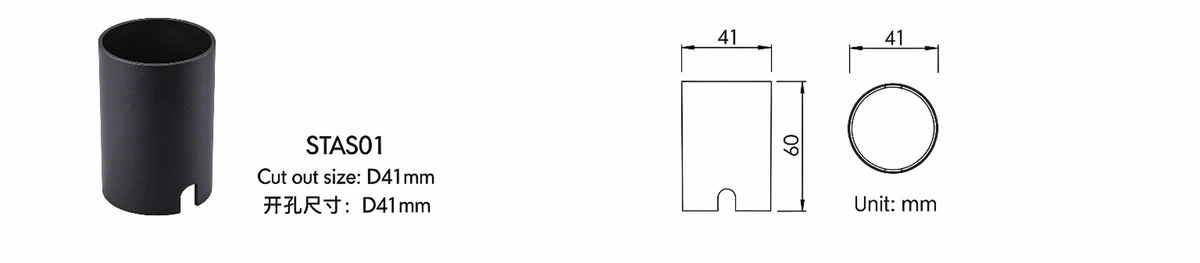

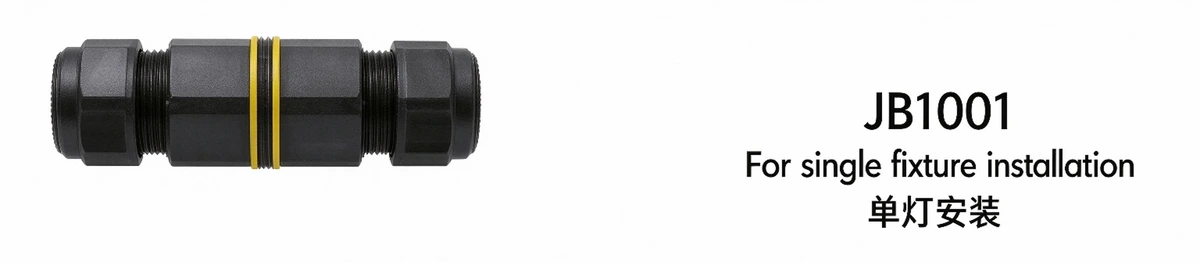

Optional Accessories:
Hot Tags: LED step light, aluminium step light, dimmable step light, 1 watt step light, IP65 step light, stair light, deck light, recessed step light, 1-10V step light, 24V step light, outdoor step lighting, China step light supplier
