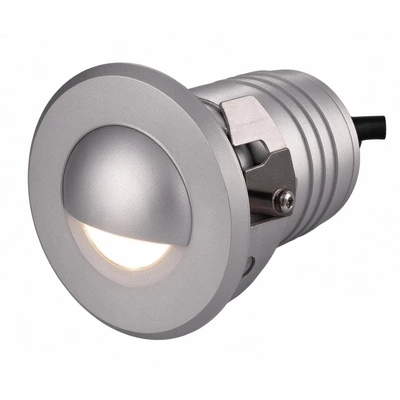

BE-STL0301 Step Light 3 W IP67 Aluminium
The BE-STL0301 is a 3 W aluminium step light for flush mounting in stairs, decks and walkways, with a 5 W version (BE-STL0501) sharing the same body. A single LED delivers 250 lm (550 lm at 5 W) at 2700 K / 3000 K / 4000 K from a matt silver anodized body sealed to IP67. It runs on 12/24 V DC through a built-in driver with a 2 m cable, fits a D51 cut-out at 100 mm recessed depth, and measures 64 x 64 mm on the face at 102 mm height. A WUAS01 mounting sleeve, WUAG01 glass lenses and JB2001/JB3001 junction boxes are available as optional accessories. Orders start at 100 with a 3-year warranty. Sourced from China with full specifications and pricing on request.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Description:
The BE-STL0301 (versions A / B) is an aluminium LED step light built for flush mounting in stairs, decks and pathways, with a 5 W version (BE-STL0501) sharing the same housing. A 3 W LED delivers 250 lm (550 lm at 5 W) at 2700 K / 3000 K / 4000 K from a matt silver anodized body sealed to IP67. It runs on 12/24 V DC through a built-in driver with a 2 m power cable, fits a D51 cut-out at 100 mm recessed depth, and measures 64 × 64 mm on the face at 102 mm height. Two face versions cover a round or square faceplate. Sourced from China as a specification-compliant commercial-grade step light.
Features:
1. 250 lm output lights the tread clearly for safe navigation on stairs and decks
2. IP67 sealing and a built-in driver make the fixture ready for wet outdoor runs
3. 3 W and 5 W power versions share one housing for a consistent look across a project
4. D51 cut-out at 100 mm recessed depth sits flush for a clean architectural line
Product parameters:
| Model | BE-STL0301A / B (3 W) | BE-STL0501A / B (5 W) |
| Face Version | Round / Square | Round / Square |
| Materials | Aluminium | Aluminium |
| Power | 3 W | 5 W |
| Lumen | 250 lm | 550 lm |
| Voltage | 12/24 V DC (built-in driver) | 12/24 V DC (built-in driver) |
| Color Temperature | 2700 K / 3000 K / 4000 K | 2700 K / 3000 K / 4000 K |
| Cut-out | D51 | D51 |
| Recessed Depth | 100 mm | 100 mm |
| Finish | Matt Silver Anodized | Matt Silver Anodized, Matt Black optional |
| Size | 64 × 64 × 102 mm | 64 × 64 × 102 mm |
| IP Rating | IP67 | IP67 |
| Warranty | 3 Years | 3 Years |
| MOQ | 100 | 100 |
Face Versions:

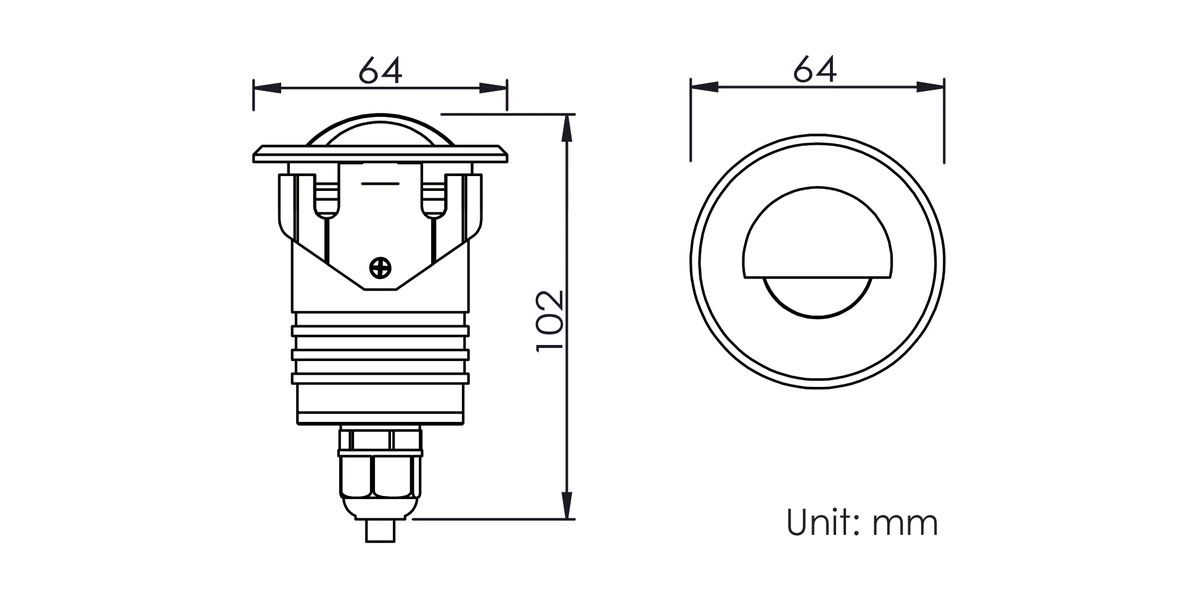

Version A: round faceplate.

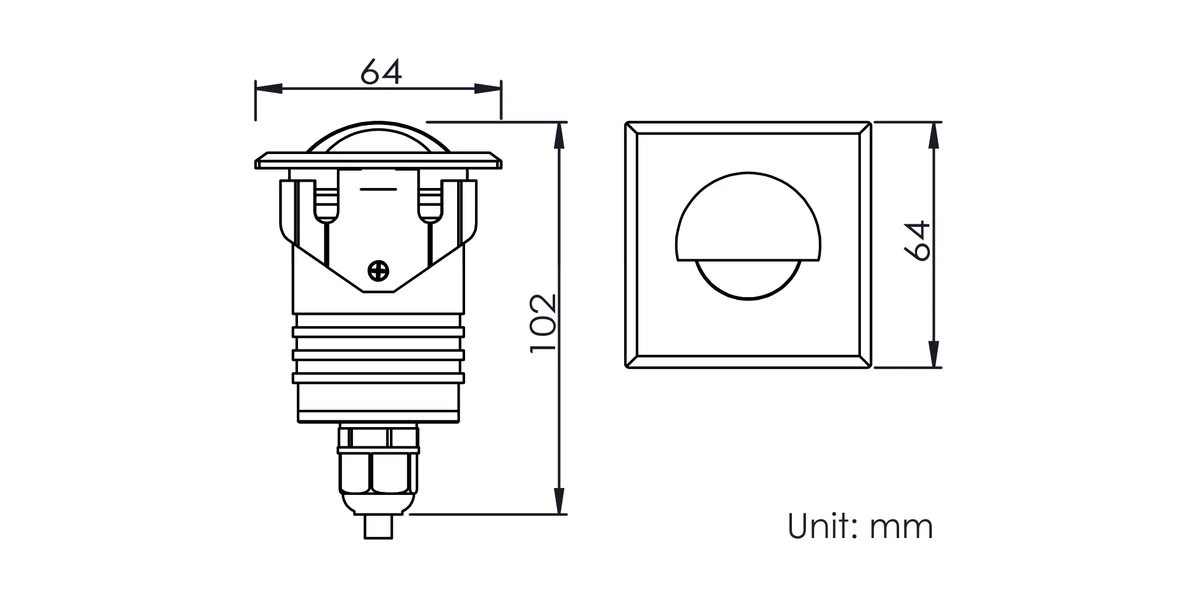

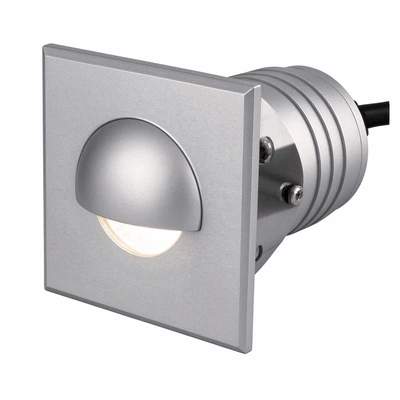

Version B: square faceplate.
Product Size:

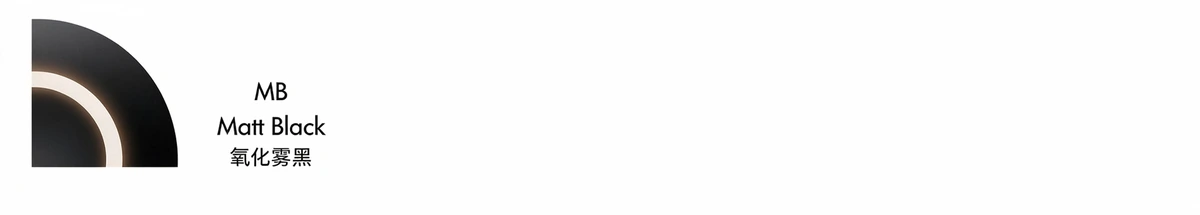

Optional Finish:

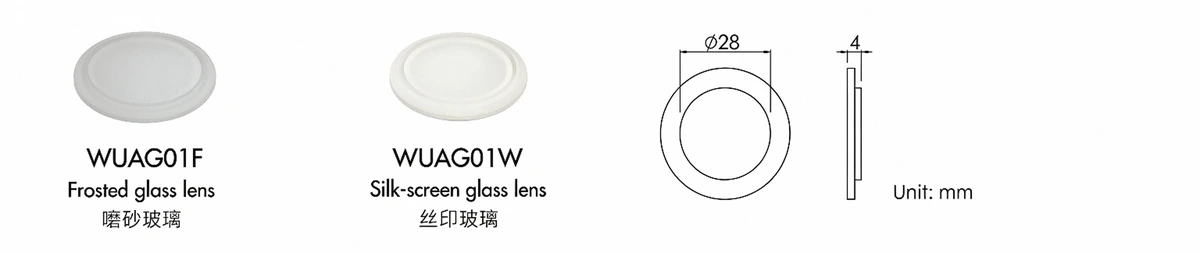

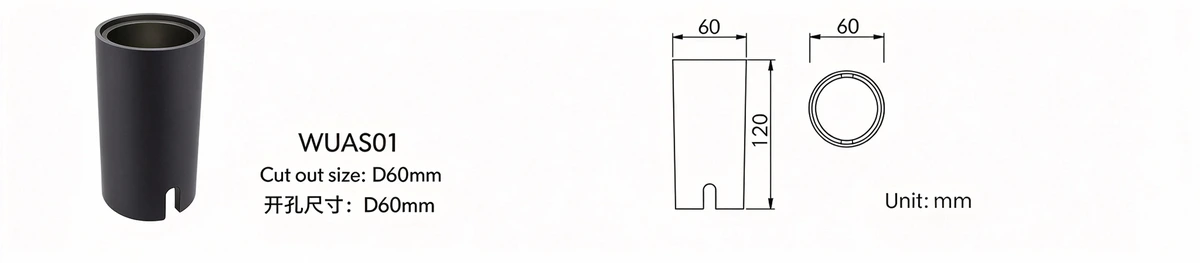

Optional Accessories:
