BE-STM0301 Main Voltage Step Light 3 W IP55 Aluminium
The BE-STM0301 is a 3 W main voltage aluminium step light for flush mounting in stairs, decks and walkways. A single LED delivers 250 lm with an asymmetric beam at 2700 K / 3000 K / 4000 K in a powder coated black body. It runs on 220-240 V AC through a built-in driver with a 0.2 m cable and fits a 64 x 122 x 60 mm cut-out. Versions A/B are sealed to IP55, while versions C/D are rated IP20 and add a PIR motion sensor. Orders start at 100 with a 3-year warranty. Sourced from China with full specifications and pricing on request.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Description:
The BE-STM0301 is a main voltage aluminium LED step light for flush mounting in stairs, decks and pathways. A 3 W LED delivers 250 lm with an asymmetric beam at 2700 K / 3000 K / 4000 K in a powder coated black body. It runs on 220-240 V AC through a built-in driver with a 0.2 m power cable and fits a 64 × 122 × 60 mm cut-out. Versions A/B are sealed to IP55, while versions C/D are rated IP20 and add a PIR motion sensor for automatic switching. A 65 × 144 × 60 mm mounting sleeve is supplied for recessed installation. Sourced from China as a specification-compliant commercial-grade step light.
Features:
1. Main voltage 220-240 V AC input runs directly from the building supply with no external transformer
2. PIR versions (C/D) switch on automatically when motion is detected, saving energy on low-traffic stairs
3. Asymmetric beam directs light across the tread without glare to the eye line
4. Powder coated black aluminium body with a 64 x 122 mm face for a clean rectangular line
Product parameters:
| Model | BE-STM0301A / B | BE-STM0301C / D |
| Materials | Aluminium | Aluminium |
| Power | 3 W | 3 W |
| Lumen | 250 lm | 250 lm |
| Beam Angle | Asymmetric | Asymmetric |
| Voltage | 220-240 V AC (built-in driver) | 220-240 V AC (built-in driver) |
| Color Temperature | 2700 K / 3000 K / 4000 K | 2700 K / 3000 K / 4000 K |
| IP Rating | IP55 | IP20 (with PIR) |
| Cut-out | 64 × 122 × 60 mm | 64 × 122 × 60 mm |
| Finish | Powder Coated Black | Powder Coated Black |
| Size | 75 × 150 × 62 mm | 75 × 150 × 62 mm |
| Warranty | 3 Years | 3 Years |
| MOQ | 100 | 100 |
Face Versions:

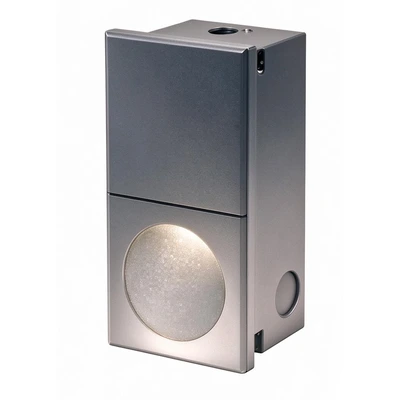

Version A / C: round light window.

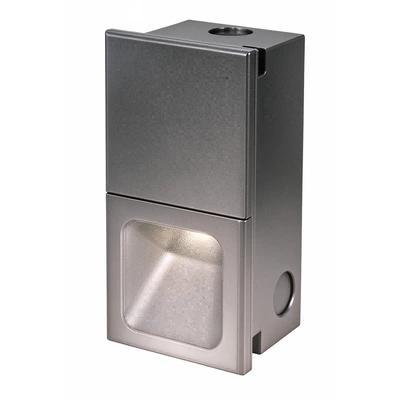

Version B / D: square light window.

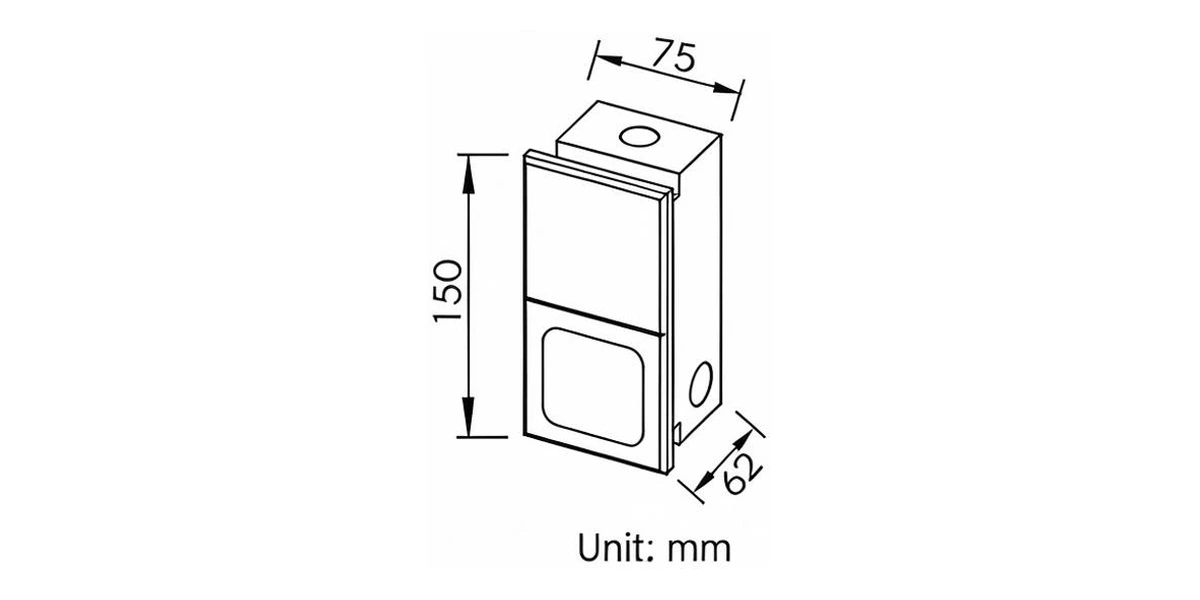

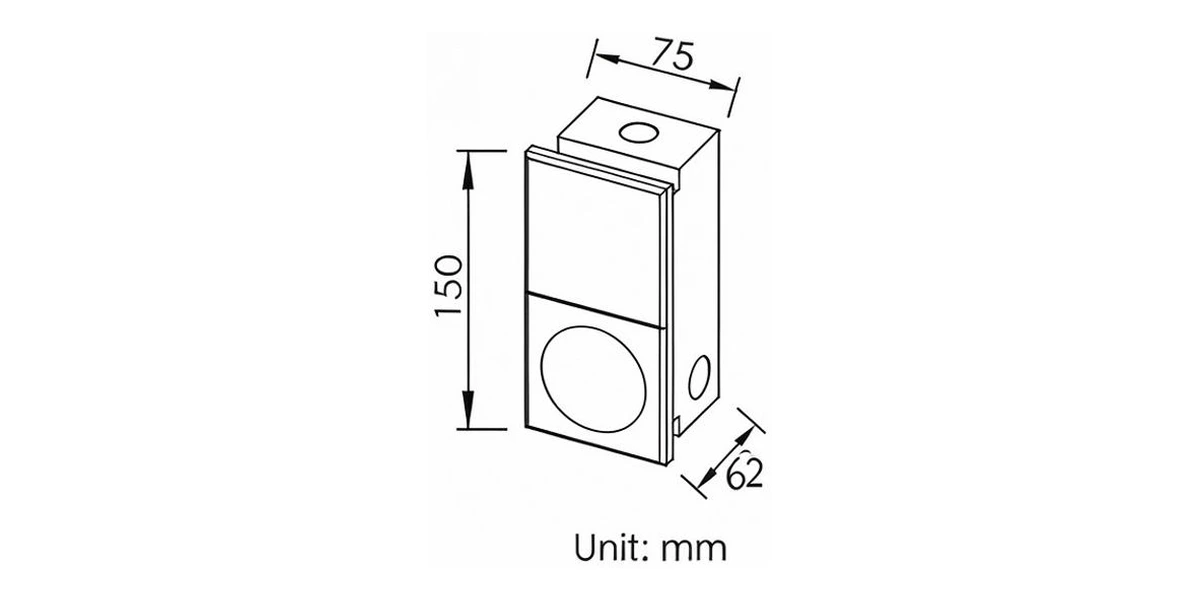

Product Size:
