BE-STM0401 Main Voltage Step Light 4 W IP55 Aluminium
The BE-STM0401 is a 4 W main voltage aluminium step light for surface mounting on stairs, decks and walls. A single LED delivers 450 lm with an asymmetric beam at 2700 K / 3000 K / 4000 K in a powder coated black body sealed to IP55. It runs on 220-240 V AC through a built-in driver and mounts directly on the surface with no cut-out. Version A is a 110 mm round body and version B is a 110 x 110 mm square body. Orders start at 100 with a 3-year warranty. Sourced from China with full specifications and pricing on request.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Description:
The BE-STM0401 (versions A / B) is a main voltage aluminium LED step light for surface mounting on stairs, decks and walls. A 4 W LED delivers 450 lm with an asymmetric beam at 2700 K / 3000 K / 4000 K in a powder coated black body sealed to IP55. It runs on 220-240 V AC through a built-in driver and mounts directly on the surface with no cut-out. Version A is a 110 mm round body and version B is a 110 × 110 mm square body, both 35 mm deep. Sourced from China as a specification-compliant commercial-grade step light.
Features:
1. Surface mounting needs no cut-out, so it fits existing stairs and decks without rework
2. Main voltage 220-240 V AC input runs directly from the building supply with no external transformer
3. Asymmetric beam directs light across the tread without glare to the eye line
4. Round or square body versions match different architectural styles
Product parameters:
| Model | BE-STM0401A | BE-STM0401B |
| Body | Round | Square |
| Materials | Aluminium | Aluminium |
| Power | 4 W | 4 W |
| Lumen | 450 lm | 450 lm |
| Beam Angle | Asymmetric | Asymmetric |
| Voltage | 220-240 V AC (built-in driver) | 220-240 V AC (built-in driver) |
| Color Temperature | 2700 K / 3000 K / 4000 K | 2700 K / 3000 K / 4000 K |
| Mounting Type | Surface mounting | Surface mounting |
| Finish | Powder Coated Black | Powder Coated Black |
| Size | Ø110 × 35 mm | 110 × 110 × 35 mm |
| IP Rating | IP55 | IP55 |
| Warranty | 3 Years | 3 Years |
| MOQ | 100 | 100 |
Face Versions:

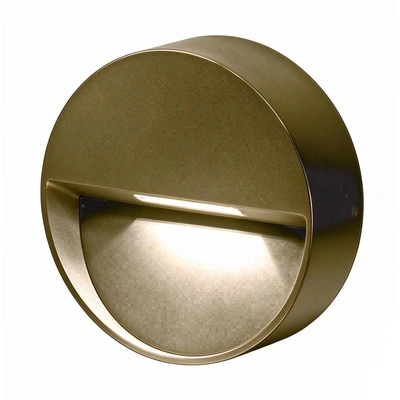

Version A (BE-STM0401A): 110 mm round body.
Version B (BE-STM0401B): 110 x 110 mm square body.
Product Size:
Hot Tags: LED step light, aluminium step light, main voltage step light, 4 watt step light, IP55 step light, surface mounted step light, stair light, deck light, 220V step light, outdoor step lighting, China step light supplier
